Description
Overview

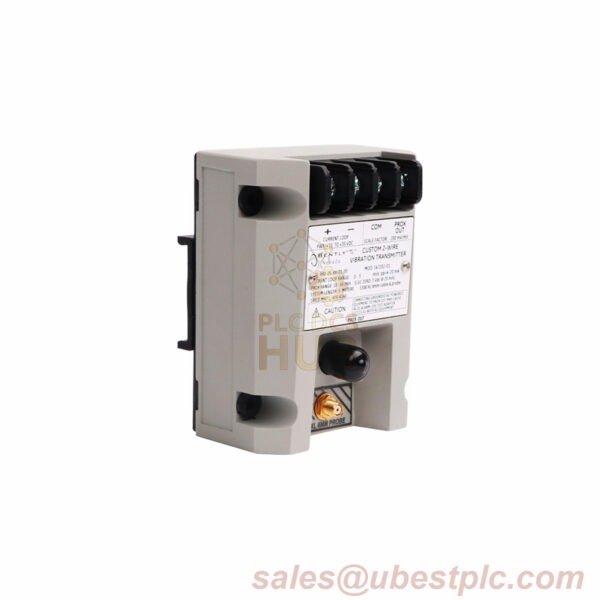

The Bently Nevada 990-04-70-02-00 Vibration Transmitter is a state-of-the-art monitoring solution designed to ensure reliable vibration measurement for various industrial applications. Made in the USA, this advanced transmitter accepts the 3300 NSv Proximity Probe for accurate readings, with a customizable system length, mounting options, and agency approvals. With its ability to output a 4 to 20 mA signal, it offers excellent performance for asset management and predictive maintenance programs.
Technical Data:
| Feature | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter |
| 990-04-70-02-00 Suffix Information | -04: Full-Scale Option (0-4 mils pp) |
| -70: System Length Option (7.0 meters) | |
| -02: Mounting Option (Bulkhead screws) | |
| -00: Agency Approval (None) | |
| Input | Accepts 1 non-contacting 3300 NSv Proximity Probe |
| Power Supply | +12 to +35 Vdc at transmitter terminal |
| Signal Output | 4 to 20 mA dc in 2-wire configuration |
| Probe Gap | Between 0.5 mm and 1.75 mm |
| Frequency Response | 5 Hz to 6,000 Hz +0, 3 dB |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Transmitter Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100 mm x 73.9 mm x 53.3 mm |
