Description
Description:

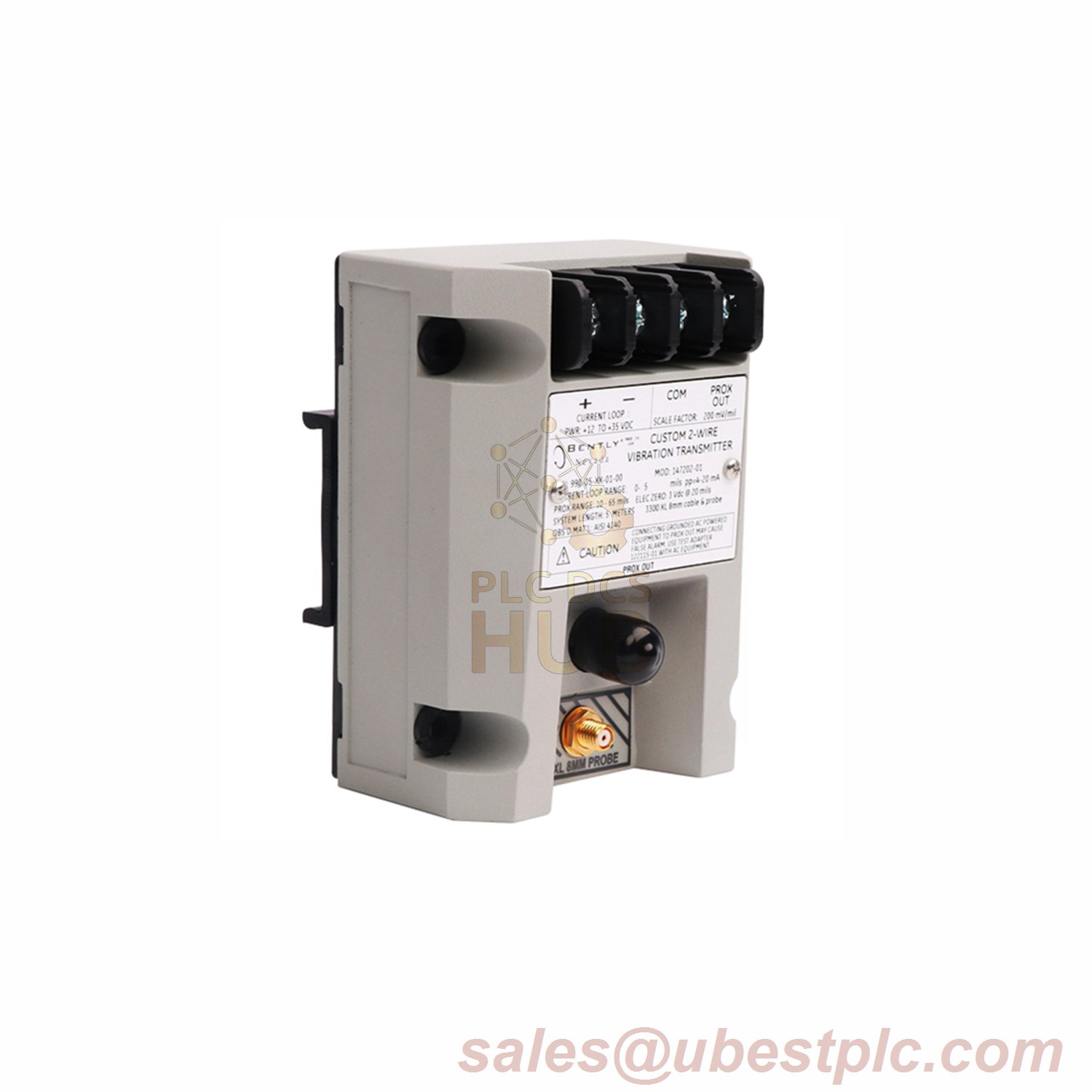

The Bently Nevada 990 Vibration Transmitter (Product No. 990-04-XX-01-05) is a reliable, high-performance device designed to monitor and transmit vibration signals from a proximity probe to a control system. Manufactured in the U.S.A., it offers precise measurements of vibration and displacement, crucial for machinery monitoring and predictive maintenance in industries such as power generation, petrochemical, and manufacturing. The transmitter is compatible with a 3300 NSv proximity probe, ensuring excellent performance across various operational conditions.
Technical Data
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 990-04-XX-01-05 |
| Agency Approval | CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS maritime approval |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| Cable Armor | Optional AISI 302 SST with FEP outer jacket |
| Input | 1 non-contacting 3300 NSv Probe with extension cable |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
| Output | 4 to 20 mA signal output (2-wire) |
| Probe Gap | 0.5 to 1.75 mm (20 to 55 mils) |
| Power Supply | +12 to +35 Vdc |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Transmitter Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100 x 73.9 x 53.3 mm |
Suffix Information:
| Suffix | Description |
|---|---|
| XX | System length: 50 (5.0 meters) or 70 (7.0 meters) |
| 01 | Mounting: 35 mm DIN rail clips |
| 05 | Agency Approvals: CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS maritime approval |
Contact Information:
For more details or inquiries, please contact us at sales@ubestplc.com.
