Description

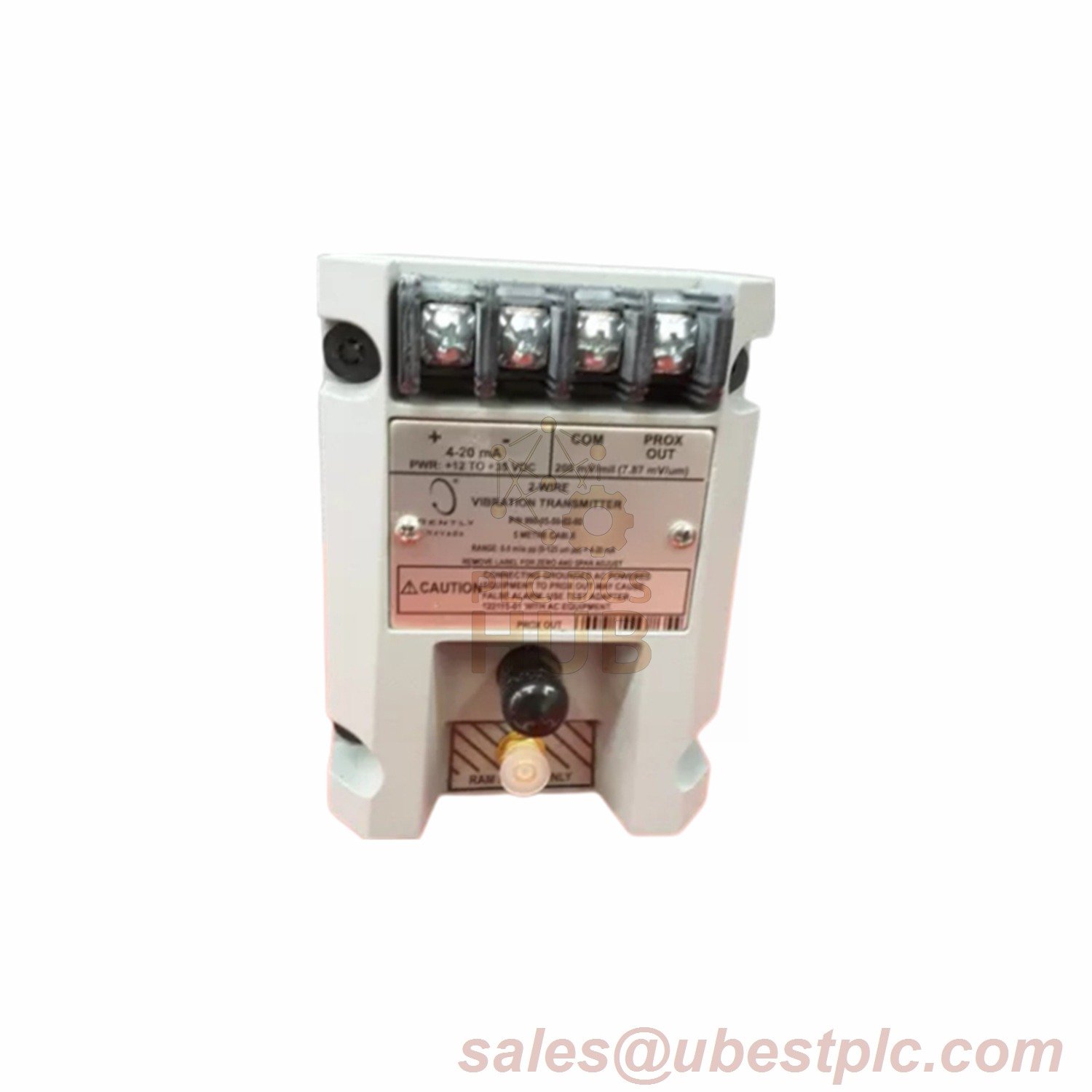

The Bently Nevada 990-05-50-01-CN Vibration Transmitter is a high-performance device designed for precise monitoring of rotating machinery. Featuring 0-5 mils pp (0-100 µm pp) full-scale range and 5.0-meter system length, it ensures reliable vibration measurement in industrial environments. Built with AISI 303/304 stainless steel casing and PPS probe tip, it offers durability in harsh conditions. With country-specific certifications (CN), this DIN rail-mounted transmitter supports seamless integration into safety-critical systems.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 990-05-50-01-CN |
| Full-Scale Range | 0-5 mils pp (0-100 µm pp) |
| Input | 1×3300 NSv Proximity Probe + Extension Cable |
| Power Supply | +12 to +35 Vdc |
| Output Signal | 4-20 mA (±1.5% accuracy) |
| Frequency Response | 5 Hz–6,000 Hz (+0, -3 dB) |
| Operating Temp | -35°C to +85°C |
| Certifications | Country-Specific (CN) Approvals |
Suffix Information
| Code | Meaning | Details |
|---|---|---|
| 05 | Full-Scale Range | 0-5 mils pp |
| 50 | System Length | 5.0 meters (16.4 ft) |
| 01 | Mounting | 35 mm DIN rail clips |
| CN | Approvals | Country-specific certifications |
