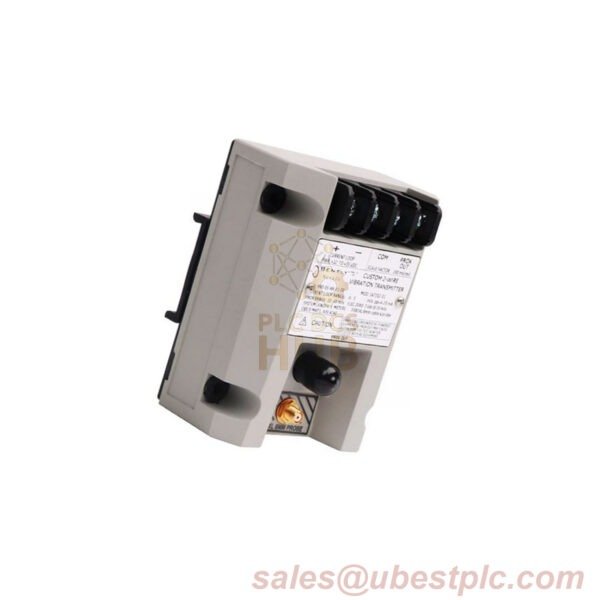

This 2-wire vibration transmitter (990-05-50-01-00) operates in a non-contacting configuration and provides a 4-20 mA output. The system can be customized with various options for full-scale range, mounting, and system length, depending on specific customer needs. This device is ideal for vibration monitoring in a wide range of industrial sectors, including hazardous areas.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 990-05-50-01-00 |
| Full-Scale Range Option | 05 = 0-5 mils pp (0-125 µm pp) |
| System Length Option | 50 = 5.0 metres (16.4 feet) |
| Mounting Option | 01 = 35 mm DIN rail clips |
| Agency Approval | 00 = Not required |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
| Temperature Stability | ±10% of 7.87 mV/µm (200 mV/mil) from 0°C to +70°C |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Power Supply | +12 to +35 Vdc input |
| Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100*73.9*53.3mm |
