Description
Overview

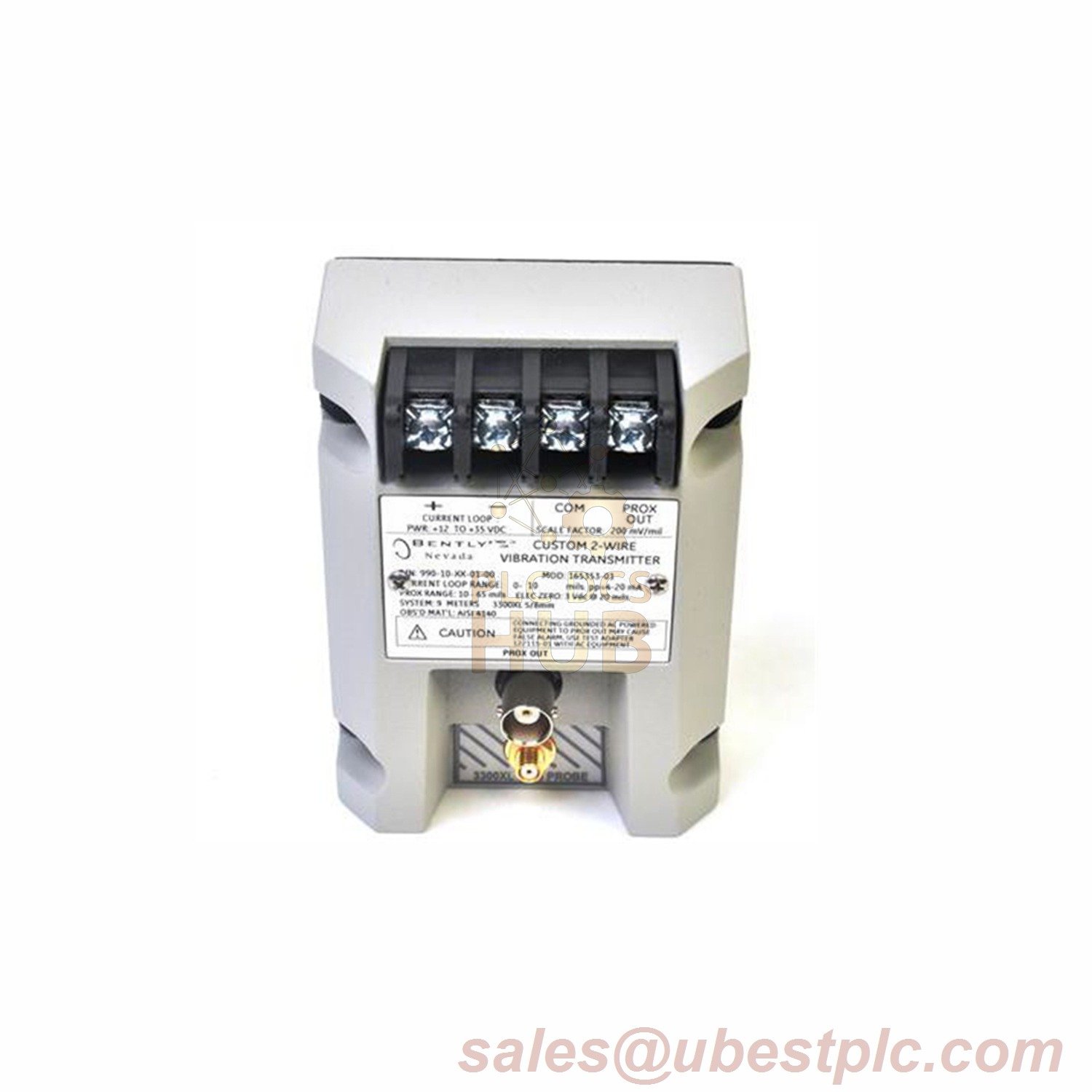

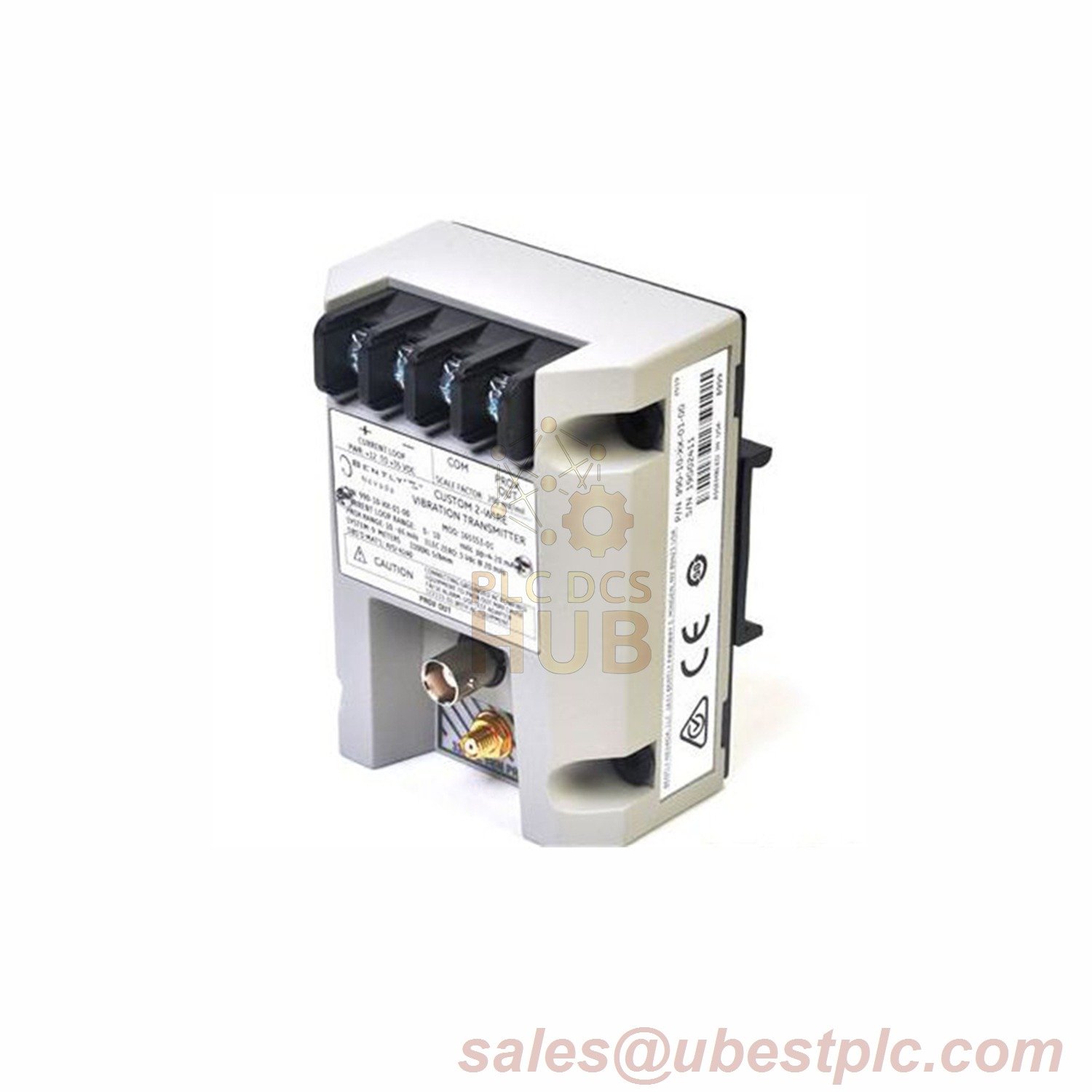

The Bently Nevada 990-05-XX-03-05 Vibration Transmitter is an advanced system designed to measure vibrations accurately in industrial settings. Made in the USA, this device is engineered for high-performance applications where precision and durability are critical. With a wide range of configuration options and certifications, it ensures reliable vibration measurement for industries like manufacturing, power generation, and oil & gas.
Technical Data:
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter |
| Product No. | 990-05-XX-03-05 |
| Country of Origin | USA |
| Full-Scale Range | 0-5 mils (0-125 μm) |
| System Length | 5 meters (16.4 feet) or 7 meters (23.0 feet) |
| Mounting Option | DIN clips and screws (Option: 03) |
| Agency Approvals | CSA Division 2, ATEX Zone 0, Zone 2, ABS Maritime Approval (Option: 05) |
| Input | 1 non-contacting 3300 NSv Proximity Probe with extension cable |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
| Power Input | +12 to +35 Vdc |
| Signal Output | 4-20 mA, with ±1.5% loop accuracy |
| Temperature Operating | -35°C to +85°C ( -31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100 x 73.9 x 53.3 mm |
