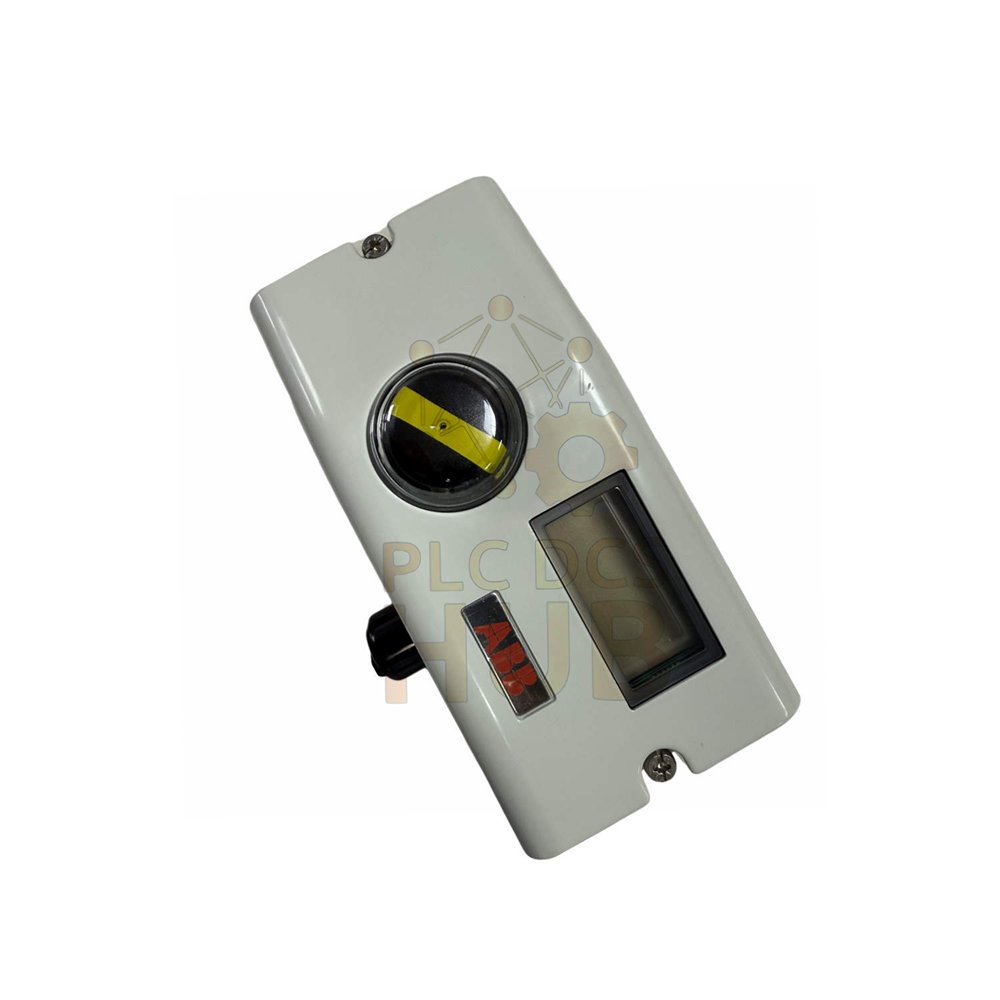

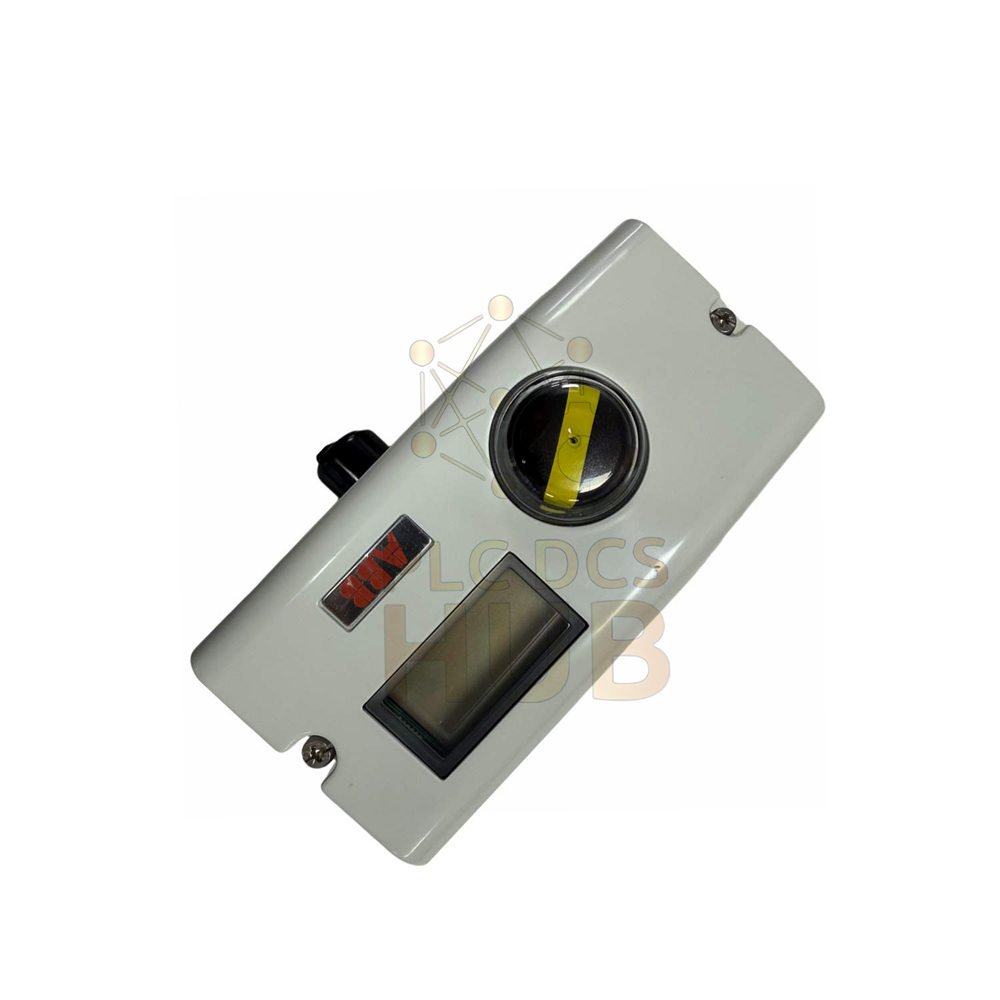

ABB V18345-1004210001 TZIDC Smart Positioner – Fail-Freeze HART

Description

Product Overview

• ABB V18345-1004210001 is an Electro-Pneumatic Positioner.
• Part of the TZIDC-120 series from ABB.
• This smart positioner controls pneumatic valves with high precision.
• Works with linear or rotary actuators. Very rugged and reliable.

Part Number Breakdown – Understand Your Unit

• ▹ V18345 – TZIDC-120 intelligent positioner
• ▹ 1 – Aluminum case, IP65/NEMA 4X for linear or rotary actuators
• ▹ 0 – Fixed digit
• ▹ 0 – LKS adapter connector + FSK module for HART communication
• ▹ 4 – ATEX EEx n A II T6 explosion protection (Zone 2)
• ▹ 2 – Single acting, fail freeze (holds position on power loss)
• ▹ 1 – 1/2-14 NPT cable entry, 1/4-18 NPT air pipe
• ▹ 0 – No analog position feedback module
• ▹ 0 – No digital position feedback kit
• ▹ 0 – Fixed digit
• ▹ 1 – Standard design/varnish

Key Features – Why Choose This Unit

• Low operating cost – very efficient air consumption.
• Compact design – saves panel space.
• Well-proven technology – reliable in harsh conditions.
• Wide temperature range: -40°C to +85°C.
• Easy commissioning – single push-button operation.
• Mechanical position indicator – visible at a glance.
• Approved for SIL2 safety loops.
• ATEX Zone 2 approval – EEx n A II T6.

Technical Specifications

• ▹ Brand: ABB
• ▹ Model: V18345-1004210001
• ▹ Series: TZIDC-120
• ▹ Product Type: Electro-Pneumatic Positioner
• ▹ Weight: 1.7 kg
• ▹ Enclosure rating: IP65 (NEMA 4X)
• ▹ Case material: Aluminum, varnished black (RAL 9005)
• ▹ Supply pressure: 1.4 to 6 bar (20 to 90 psi)
• ▹ Air consumption: Less than 0.03 kg/h (0.015 scfm)
• ▹ Output range: 0 to 6 bar (0 to 90 psi)
• ▹ Temperature range: -40°C to +85°C
• ▹ Relative humidity: 95% (condensation allowed) during operation

Input Specifications – Electrical Signals

• Nominal input: 4-20 mA, two-wire technology.
• Maximum input: 25 mA / 30 V.
• Minimum starting current: 3.4 mA (no feedback).
• Load voltage at 20 mA: 8.7 V DC (standard).
• Impedance at 20 mA: 435 ohms (standard).
• Digital input: 24 V DC (12-30 V range).
• Digital output: NAMUR compliant to DIN 19234.

Output & Air Capacity

• Air capacity at 1.4 bar: 5.0 kg/h (2.3 scfm).
• Air capacity at 6 bar: 13 kg/h (6.0 scfm). Booster available.
• Output function: Single acting, fail freeze.
• On electrical failure: Valve holds last position (fail freeze).
• Shut-off values: 0-45% for end position 0%, 55-100% for 100%.

Travel & Motion Parameters

• Angle of rotation: 25-120° (rotary), 25-60° (linear).
• Travel limit: Freely configurable within 0-100% (min range >20%).
• Travel time prolongation: 0-200 seconds per direction.
• Positioning time limit: 0-200 seconds monitoring parameter.

Performance & Accuracy

• Characteristic deviation: ≤ 0.5%.
• Tolerance band: 0.3% to 10% (adjustable).
• Dead band: 0.1% to 10% (adjustable).
• Resolution (A/D): > 4000 steps.
• Sample rate: 20 milliseconds.
• Temperature influence: ≤ 0.5% per 10°C change.
• Vibration resistance: ≤ ±1% up to 10g at 80 Hz.
• Seismic rating: Meets DIN/IEC 68-3-3 Class III.
• Mounting orientation: No effect on performance.

Characteristic Curves & Signal Action

• Characteristic curves: Linear, equal percentage 1:25, 1:50, 25:1, 50:1.
• Also freely configurable with up to 20 reference points.
• Direct action: 4-20 mA signal = 0-100% position.
• Reverse action: 20-4 mA signal = 0-100% position.

Air Supply Requirements

• Use instrument air free of oil, water, and dust.
• Meets DIN/ISO 8573-1 Class 3.
• Max particle size: 5 µm. Max oil content: 1 mg/m³.
• Pressure dew point: 10 K below operating temperature.
• Do not exceed actuator’s maximum operating pressure.

Communication & Protocols

• HART Protocol 5.1 – communicate via 4-20mA signal line.
• FSK module built-in for HART communication.
• Local connector for LKS adapter (local communication interface).
• Use HART handheld or PC software for configuration.

Explosion Protection – ATEX EEx n A II T6 (Zone 2)

• ATEX II 3G EEx n A II T6 – Certificate TÜV 02 ATEX 1943 X.
• Temperature class T6: -40°C to +50°C ambient.
• Temperature class T5: -40°C to +65°C ambient.
• Temperature class T4: -40°C to +85°C ambient.
• Also has FM, CSA, and IECEx intrinsic safety approvals.

Full Hazardous Area Approvals

• FM: Intrinsically safe for Class I, II, III Div 1. Non-incendive for Div 2.
• CSA: Intrinsically safe, Enclosure 4X, T4 max 85°C.
• ATEX Ex ib IIC T6 (intrinsic safety) – Certificate TÜV 98 ATEX 1370 X.
• IECEx Ex ib IIC T6 – Certificate IECEx TUN 04.0015X.

Environmental Capabilities

• Ambient temperature: -40°C to +85°C for operation, storage, transport.
• Relative humidity (operational): 95% annual average, condensation allowed.
• Case protection: IP65 / NEMA 4X – dust-tight and water-resistant.
• Electrical connections: Screw terminals (max 2.5 mm² for analog signal).
• Cable entry: 2 threads 1/2-14 NPT or M20x1.5.
• Pneumatic connections: Threads G 1/4 or 1/4-18 NPT.

Installation Guide

• Mount on linear actuators (DIN/IEC 534/NAMUR) or rotary (VDI/VDE 3845).
• Use 1/2-14 NPT cable entry for electrical connections.
• Connect air pipe using 1/4-18 NPT thread.
• Supply clean, dry instrument air at 1.4-6 bar.
• Wire 4-20mA input to two-wire terminal.
• Do not expose screw terminals to mechanical strain.

Debug & Maintenance

• Use single push-button for auto-calibration and setup.
• Mechanical position indicator shows valve position locally.
• Adjust dead band and tolerance band via HART or local panel.
• Check air filter regularly. Clean air extends life.
• Run self-diagnostics through HART communication.

Compatibility

• Works with any 4-20mA control system (PLC, DCS, or controller).
• HART communication works with most asset management systems.
• Compatible with Versamax PLCs via analog output modules.
• Also integrates with Modicon Quantum systems.

Package Contents & Warranty

• 12 months warranty from invoice date. Covers defects.
• Package includes: 1 x TZIDC-120 positioner with HART module and ATEX approval.
• No mounting bracket, air fittings, or cables included.
• Return defective units for replacement under warranty.

Shipping – Fast Worldwide Delivery

• We ship with FedEx, UPS, DHL express services.
• Tracking number within 24 hours. Insurance included.
• Typical delivery: 3-7 business days.

Typical Applications

• Control valves in Zone 2 hazardous areas (ATEX EEx nA).
• Pneumatic actuators in SIL2 safety loops.
• Oil and gas, chemical, and power plants.
• Extreme temperature environments from -40°C to +85°C.

Diagnostic Capability

• Built-in auto-calibration routine for easy setup.
• HART communication provides real-time diagnostic data.
• Mechanical position indicator shows valve position locally.
• Detects low air supply, stuck valve, or excessive friction.

Frequently Asked Questions (FAQ)

• Question: What power does this positioner need?

  Answer: No external power. Uses 4-20mA loop for power (two-wire).

• Question: What happens if electrical power fails?

  Answer: Fail freeze mode holds valve at last position.

• Question: Is this approved for Zone 2 hazardous areas?

  Answer: Yes. ATEX EEx n A II T6 for Zone 2.

• Question: Does this unit have HART communication?

  Answer: Yes. Built-in FSK module for HART Protocol 5.1.

• Question: What is the operating temperature range?

  Answer: -40°C to +85°C (-40°F to +185°F).

Experience-based Q&A (Field Notes)

• Question: My positioner shows position error. What should I check?

  Answer: Check air supply pressure. Also inspect mechanical linkage for slippage.

• Question: The unit does not respond to HART commands.

  Answer: Verify loop resistance (minimum 250 ohms for HART). Check wiring polarity.

• Question: Can I use this in a SIL2 safety loop?

  Answer: Yes. This positioner is approved for SIL2 applications.

• Question: How often should I calibrate?

  Answer: Every 12 months for critical loops. Run auto-calibrate annually.

Buying Guide – Choose the Right Positioner

• Choose V18345-1004210001 for Zone 2 hazardous areas with fail freeze.
• Need intrinsic safety (Zone 0/1)? Look for explosion protection code 1 or 2 instead of 4.
• Need analog position feedback? Choose option module code 1 instead of 0.
• Check your actuator type: linear or rotary. This unit handles both.
• For extreme cold, this unit works down to -40°C – no heater needed.
• Contact us for bulk pricing or configuration support.
