Product Description

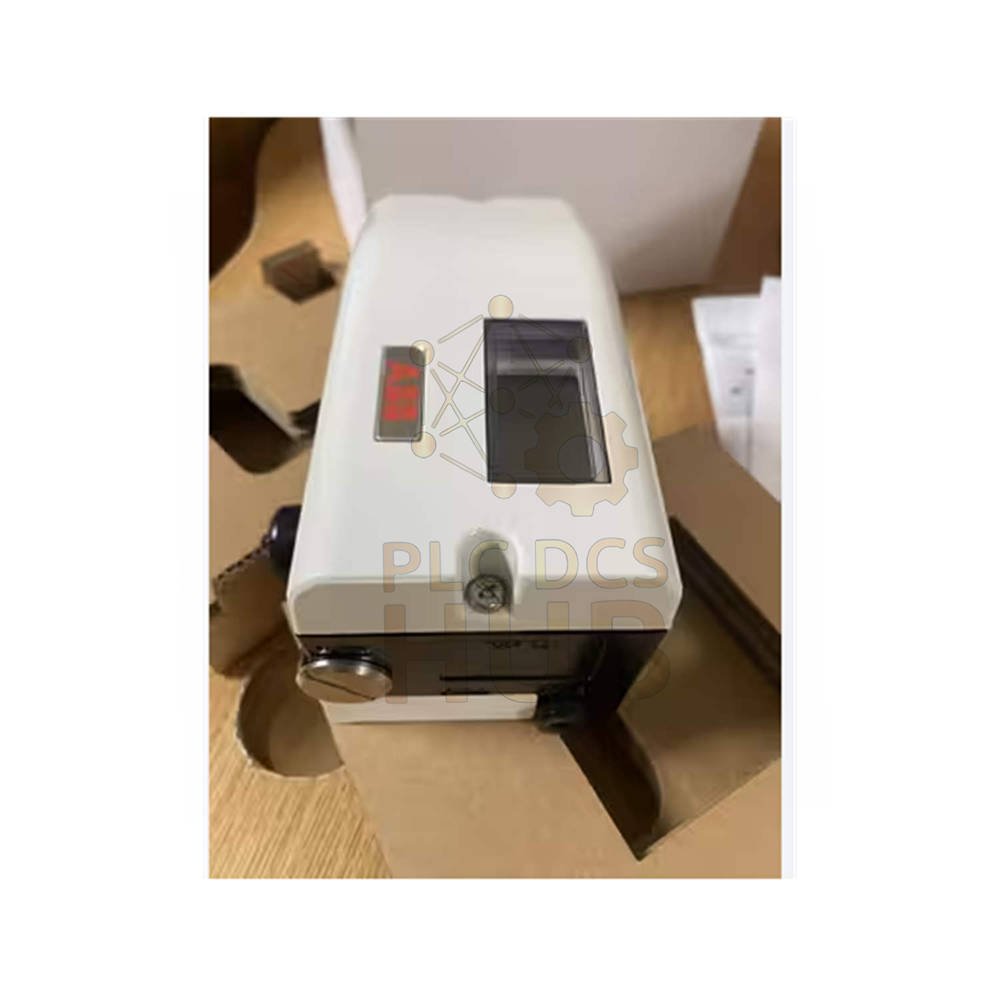

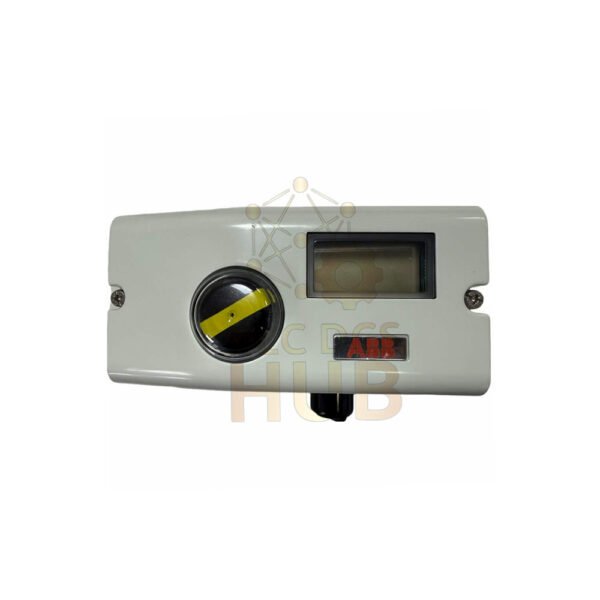

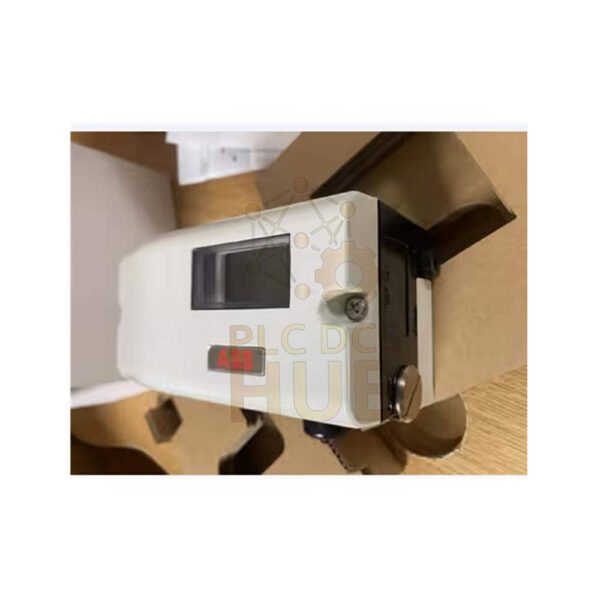

The ABB V18345-2010421001 is a TZIDC electro-pneumatic positioner. This version gives you double acting fail safe operation. It includes an analog position feedback module. The device works with linear or rotary actuators.
What This Positioner Does
– Controls double acting pneumatic actuators – Sends 4-20 mA position feedback to your system – Moves valve to safe position on power loss – Consumes very little air (<0.03 kg/h) – Works with supply pressure from 1.4 to 6 bar
Key Features at a Glance
– Double acting with fail safe mode – Built-in analog feedback (4-20 mA) – Mechanical position indicator on housing – IP65 / NEMA 4X aluminum case – Intelligent configurable design – Two-wire 4-20 mA input – Very low air consumption
Technical Specifications
– Brand: ABB – Model number: V18345-2010421001 – Series: TZIDC – Product type: Electro-Pneumatic Positioner – Input signal: 4-20 mA (two-wire) – Analog feedback: 4-20 mA (included) – Supply pressure: 1.4 to 6 bar (20 to 90 psi) – Air consumption: Less than 0.03 kg/h (0.015 scfm) – Housing material: Aluminum, varnished – Protection class: IP65 / NEMA 4X – Color: Black RAL 9005 matte, cover Pantone 420 – Pneumatic connections: 1/4-18 NPT or G 1/4 – Cable connection: 1/2-14 NPT thread – Weight: 1.7 kg
Model Number Breakdown
V18345-2010421001 │ │ │ │ │ │ │ │ └─ 1 = Standard design/varnish │ │ │ │ │ │ │ └─── 0 = No mechanical kit for digital feedback │ │ │ │ │ │ └───── 1 = Analog feedback module (4-20mA) │ │ │ │ │ └─────── 2 = 1/4-18 NPT air, 1/2-14 NPT cable │ │ │ │ └───────── 4 = Double acting, fail safe │ │ │ └─────────── 0 = No explosion protection │ │ └───────────── 1 = 4-20 mA with LKS adapter plug │ └─────────────── 2 = Alu case with mechanical indicator └────────────────────── V18345 = TZIDC series
Housing and Mounting
– Case made of aluminum with electrostatic varnish – Epoxy resin, stove-hardened finish – Mechanical position indicator on housing – IP65 protection against dust and water jets – Mounts to linear actuators (DIN/IEC 534 / NAMUR) – Mounts to rotary actuators (VDI/VDE 3845)
Analog Position Feedback Module
– Output range: 4-20 mA (configurable split ranges) – Two-wire circuitry – Power supply: 24V DC (10-30V DC) or 48V DC (20-48V DC) – Direct or reverse action (configurable) – Characteristic deviation: less than 1% – On power loss or initialization: output goes above 20 mA (alarm)
Digital Position Feedback (Optional – Not Included)
– Two switches for digital feedback – Adjustable positions from 0% to 100% – Current circuits to DIN 19234/NAMUR – Supply voltage: 5 to 11 V DC – Signal current under 1.0 mA = Logical “0” – Signal current over 2.0 mA = Logical “1” – Configurable effective direction
Fail Safe Behavior
Double acting fail safe mode: – Output 1 depressurizes on power loss – Valve moves to safe position – For double acting: output 2 pressurizes
Alternative fail freeze (with shutdown module):
Both outputs close on power loss
Valve “freezes” in current position
Shutdown Module Option
– Supply voltage: 24V DC (20-30V DC) – Electrically isolated from input signal – Safe position activates when voltage drops below 5V – AK approval: AK 4 to DIN V 19250 – Works independently of mother board
Digital Input Specifications
– Logical state “0”: 0 to 5 V DC – Logical state “1”: 11 to 30 V DC
Digital Output (NAMUR per DIN 19234)
– Supply voltage: 5 to 11 V DC – Compatible with standard NAMUR sensors
Installation Guide
– Mount on linear or rotary actuator first – Connect air supply (1.4 to 6 bar clean air) – Wire 4-20 mA input signal to terminals – Wire 4-20 mA feedback to monitoring system – Set fail safe direction during configuration – Use 1/2-14 NPT fitting for cable entry – Keep air lines clean and dry
Debugging & Maintenance
– Watch mechanical indicator for rough position check – Monitor 4-20 mA feedback for accuracy – Run auto-calibration from operator panel – Low air consumption means less maintenance – Check analog feedback deviation (<1% is normal)
Compatibility
– Works with double acting pneumatic actuators – Accepts 4-20 mA from any standard controller – Use with ABB or third-party valves – Mounts to linear or rotary actuators
What’s in the Box
– 1 x V18345 TZIDC positioner – 1 x Analog feedback module (installed) – Mechanical position indicator (built-in) – No mounting bracket included – No air fittings included
Warranty & Shipping
– 12 months warranty from purchase date – Covers manufacturing defects only – Shipping methods: FedEx, UPS, DHL – Fast worldwide delivery available
Typical Applications
– Double acting valve control – Chemical processing plants – Oil and gas facilities – Power generation – Applications needing 4-20 mA position feedback
Diagnostic Capabilities
– Real-time position via analog feedback – Mechanical indicator for visual check – Characteristic deviation monitoring (<1%) – Alarm output on power loss or initialization
FAQ – Frequently Asked Questions
Q1: What is the difference between fail safe and fail freeze?
A: Fail safe moves valve to safe position. Fail freeze holds valve in last position. Choose based on your safety needs.
Q2: Does this positioner work with single acting actuators?
A: No. This V18345-2010421001 is double acting only. Use V18345-1017121001 for single acting.
Q3: From experience, how do I set up the analog feedback range?
A: Use the operator panel. Navigate to feedback settings. Set 0% and 100% positions. The module accepts split ranges too.
Q4: What happens to the feedback signal during auto-calibration?
A: The feedback output goes above 20 mA (alarm level). Your control system will see this as a fault. Normal operation resumes after calibration.
Q5: Can I add the shutdown module later in the field?
A: No. The shutdown module requires factory installation. Order the correct version with shutdown module pre-installed.
Q6: Does the 12 month warranty cover the analog feedback module?
A: Yes. Both the positioner and feedback module have 12 month coverage. This includes the 4-20 mA output circuit.
Q7: Which shipping method do you recommend for critical spares?
A: DHL Express Worldwide for fastest delivery. FedEx Priority for North America. UPS Next Day for Europe.
Q8: What does the mechanical position indicator show during power loss?
A: It shows the actual valve position mechanically. This works even with no power or air supply.
Selection Guide
– Step 1: Confirm your actuator type (double acting vs single acting) – Step 2: Check if you need position feedback (this has 4-20 mA analog) – Step 3: Verify fail behavior (fail safe vs fail freeze) – Step 4: Decide if you need explosion protection (this has none) – Step 5: Check if you need mechanical indicator (this has one) – Pro tip: Order an LKS adapter for easy configuration. It connects to your laptop and saves hours of setup time.
