Description
Product Description

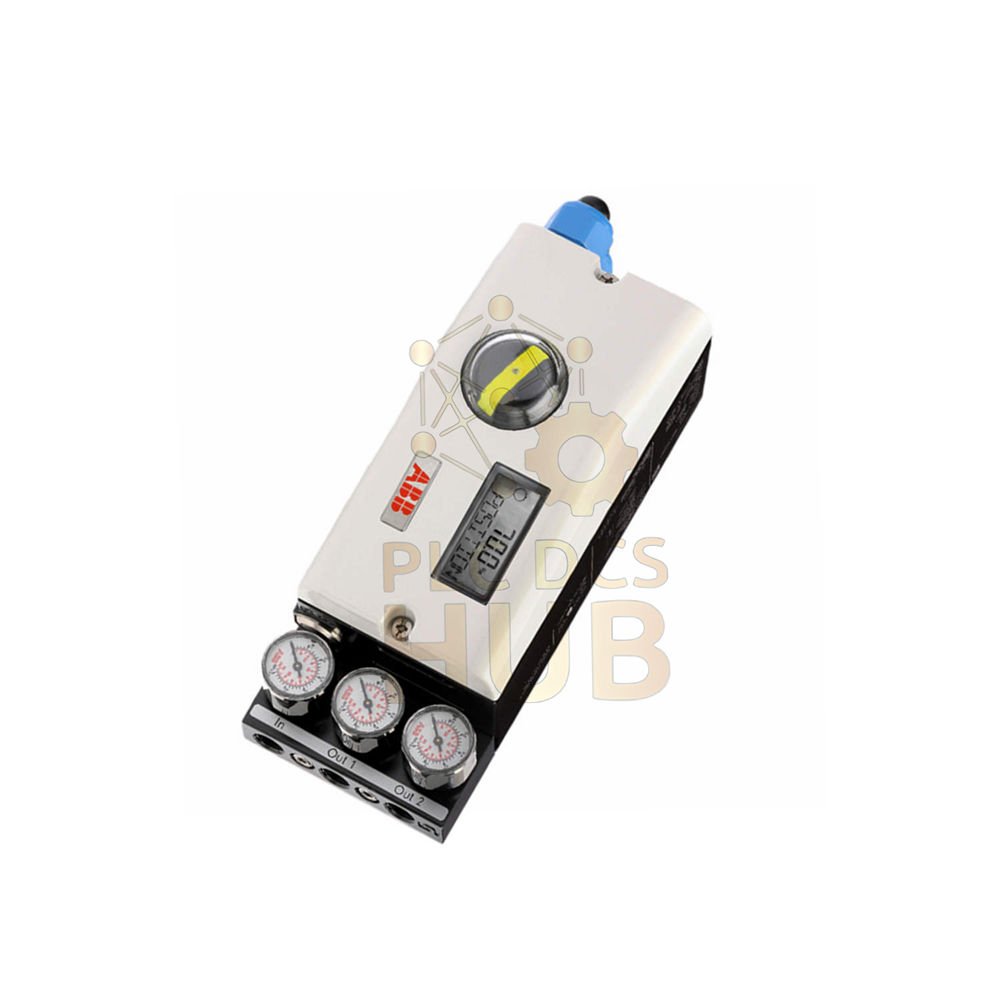

The V18345-1010221001 from ABB is a TZIDC-120 intelligent valve positioner. It works with linear and rotary actuators. The device uses a 4-20 mA two-wire input signal. This positioner has single acting output with fail freeze function. It includes a plug-in analog position feedback module (4-20 mA). The aluminum case has IP65 (NEMA 4X) protection. Each unit ships with a 12-month warranty.
Model Number Breakdown
- V18345 = TZIDC-120 intelligent positioner with indicator and operator panel
- 1 = Aluminum case, varnished, IP65, for linear/rotary actuators
- 0 = Fixed zero
- 1 = 4-20 mA input, two-wire with LKS adapter connector
- 0 = No explosion protection
- 2 = Single acting, fail freeze (safe position on power loss)
- 2 = Cable thread 1/2-14 NPT, air pipe thread 1/4-18 NPT
- 1 = Plug-in analog position feedback (4-20 mA)
- 0 = No mechanical kit for digital feedback
- 0 = Fixed zero
- 1 = Standard design/varnish
Technical Specifications
- Brand: ABB
- Model: V18345-1010221001
- Series: TZIDC-120
- Product type: Intelligent valve positioner
- Input signal: 4-20 mA two-wire
- Max input current: 25 mA at 30 V
- Min starting current: 3.8 mA
- Min current without feedback: 3.4 mA
- Min current with feedback: 3.5 mA
- Load voltage at 20 mA: 8.7 V DC (no protection)
- Impedance at 20 mA: 435 ohms (no protection)
- Output pressure range: 0 to 6 bar (0 to 90 psi)
Digital Input & Output
- Digital input control voltage: 24 V DC (range 12-30 V DC)
- 0-10 V DC = Logical “0”
- 12-30 V DC = Logical “1”
- Max input current: 4 mA
- Digital output (to DIN 19234/NAMUR):
- Supply voltage: 5-11 V DC
- Current less than 1.0 mA = Logical “0”
- Current greater than 2.0 mA = Logical “1”
- Configurable direction (normally 0 or 1)
Air Capacity
- At 1.4 bar (20 psi) supply: 5.0 kg/h (3.9 Nm³/h or 2.3 scfm)
- At 6 bar (90 psi) supply: 13 kg/h (10 Nm³/h or 6.0 scfm)
- Booster available on request for higher flow
Output Function Details
- Works with single or double acting actuators
- Fail freeze: Air vents or actuator blocks on power failure
- Shut-off values: End position 0% = 0-45%
- End position 100% = 55-100%
Environmental & Mechanical
- Case material: Aluminum, varnished
- Protection rating: IP65 (NEMA 4X)
- Cable connection: 1/2-14 NPT thread
- Air pipe connection: 1/4-18 NPT thread
- Suitable for linear actuators (DIN/IEC 534 / NAMUR)
- Suitable for rotary actuators (VDI/VDE 3845)
- Ready for integral mounting
Installation Guide
- Mount on linear or rotary actuator using standard kits
- Use 1/4-18 NPT fittings for air supply
- Connect 4-20 mA signal to two-wire input
- Set split range between 20% and 100% if needed
- Secure cable with 1/2-14 NPT thread connector
Calibration & Maintenance
- Intelligent auto-calibration via TZIDC-120 software
- Operator panel for local configuration
- No special tools needed for setup
- Check air filter regularly for clean operation
- Inspect O-rings and seals every 12 months
Typical Applications
- Process valve control in chemical plants
- Steam valve positioning in power plants
- Water treatment flow control
- Oil and gas pipeline regulation
- Pharmaceutical batch process valves
Diagnostic Capability
- Built-in analog position feedback (4-20 mA)
- Digital output alerts via NAMUR standard
- Local indicator shows valve position
- Operator panel displays fault codes
- Configurable split range for partial stroke testing
Warranty & Shipping
- Warranty: 12 months from shipment date
- Condition: New & original factory packing
- FedEx – Priority shipping available
- UPS – Express worldwide
- DHL – International freight
Package Contents
- 1 x V18345-1010221001 TZIDC-120 positioner
- Analog position feedback module (installed)
- Operator panel with indicator
- Mounting kit not included (order separately)
- Manual available from ABB support
Professional FAQ
- What does fail freeze mean on this positioner? When electrical power fails, the actuator locks in its last position. Air does not vent. This is different from fail open or fail close.
- Can I use this positioner with a double acting actuator? Yes. The output works for both single and double acting. Configure the setting during setup.
- What is the minimum current to start the device? 3.8 mA. The unit wakes up at this level. Below that, the positioner will not operate.
- Do I need explosion protection for my plant? This model has no explosion protection (option 0). For hazardous areas, order V18345 with a different position in the code.
- How do I connect the analog feedback? The plug-in module is already installed. Wire the 4-20 mA feedback loop to your control system. Range matches valve position 0-100%.
Buying Guide – Selection Advice
- Verify actuator type: Linear or rotary
- Check air supply pressure (1.4 to 6 bar typical)
- Confirm thread types: 1/2-14 NPT cable, 1/4-18 NPT air
- Need explosion rating? Choose different option code
- Need higher air flow? Request booster option
- Single acting application? This model works well
- Add external filter regulator for clean air supply
- Order mounting kit separately for your actuator brand
- Keep spare positioner for critical process lines
- Download TZIDC-120 manual before installation
