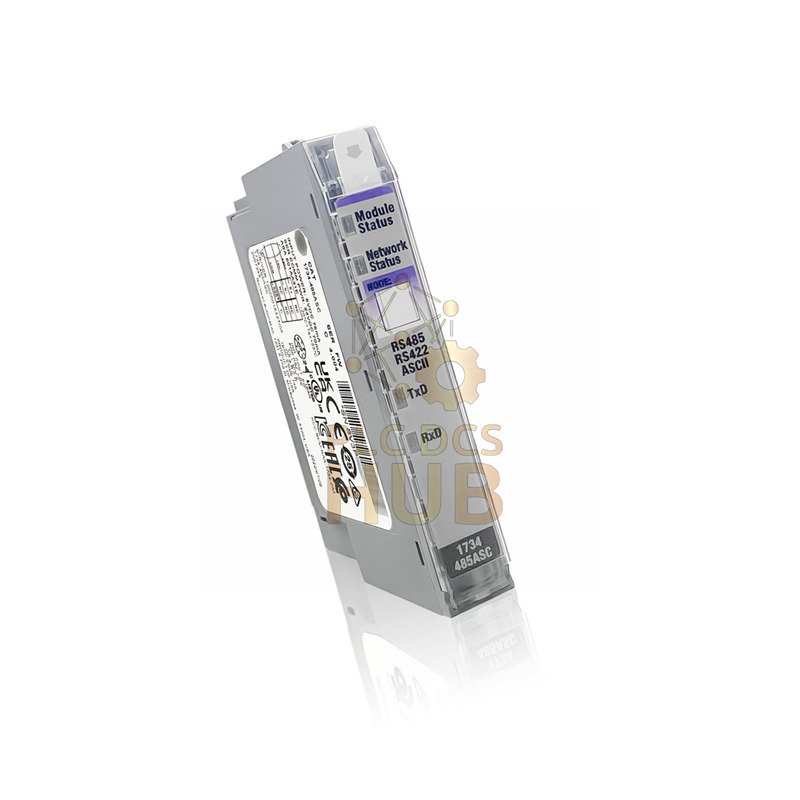

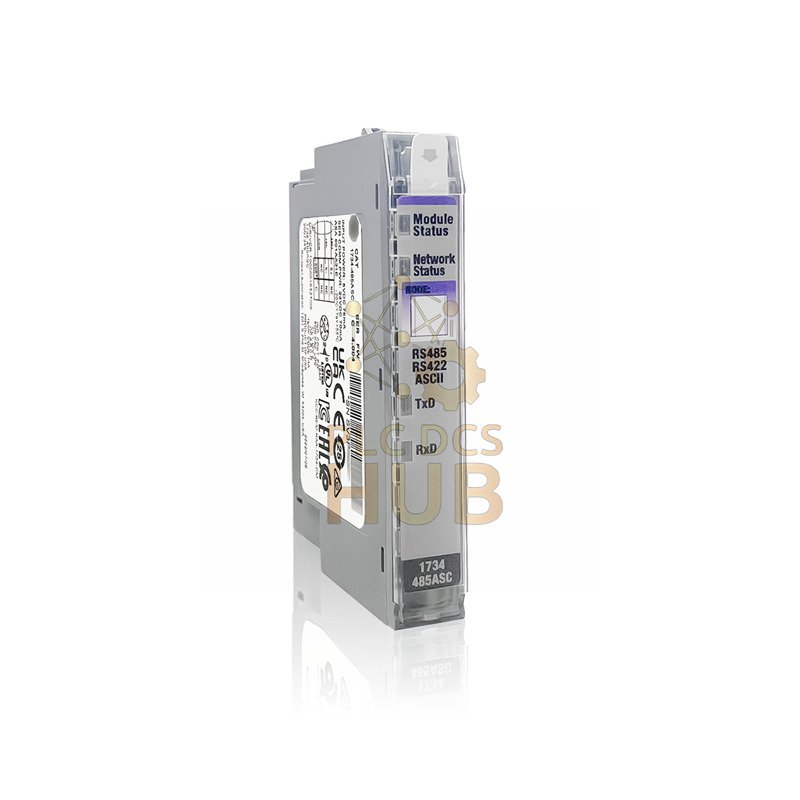

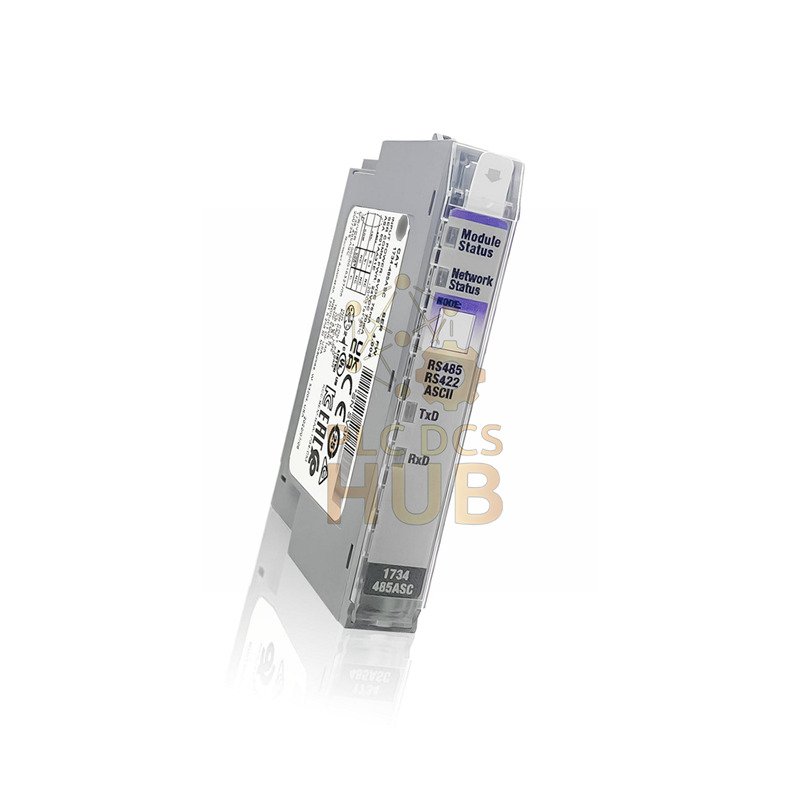

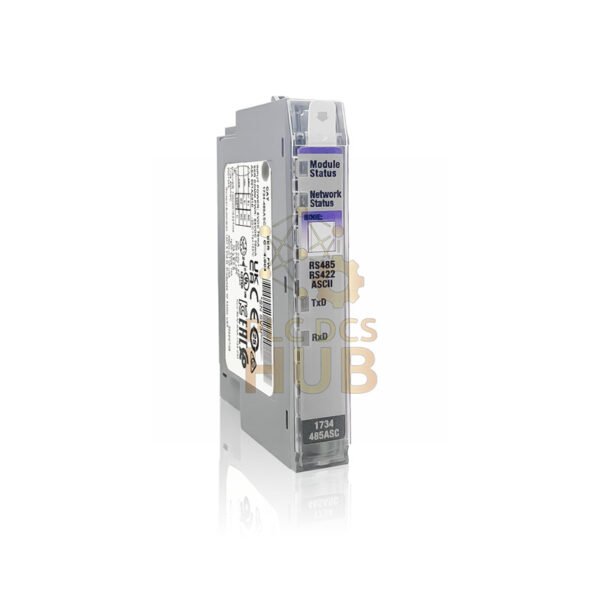

Allen-Bradley 1734-485ASC Serial Interface Module | Point I/O
Connect your Point I/O system to serial devices with the versatile 1734-485ASC module. This interface enables communication with RS-485 and RS-422 networks for industrial automation.
Installation Resources
- Complete installation and configuration guide available
- Includes wiring diagrams and network setup instructions
- Download Point I/O Manual Here
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1734-485ASC
- Series: Point I/O
- Module Type: Serial Interface Module
- Supported Networks: RS-485 (2-wire), RS-422 (4-wire)
- Voltage Range: 10-28.8V DC
- Nominal Voltage: 24V DC
- Supply Current: 15mA @ 24V DC
- Key Switch Position: 2
- Buffer Size: 20 bytes default (configurable)
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Connection: Removable terminal block
- Mounting: DIN rail
Compatibility Information
- Part of Allen-Bradley Point I/O 1734 series
- Works with RS-232, RS-485, and RS-422 ASCII devices
- Connects to DeviceNet networks through interface
- Requires shielded cables for optimal performance
