1734-4IOL Allen-Bradley IO-Link Master | POINT I/O Module In Stock

Description

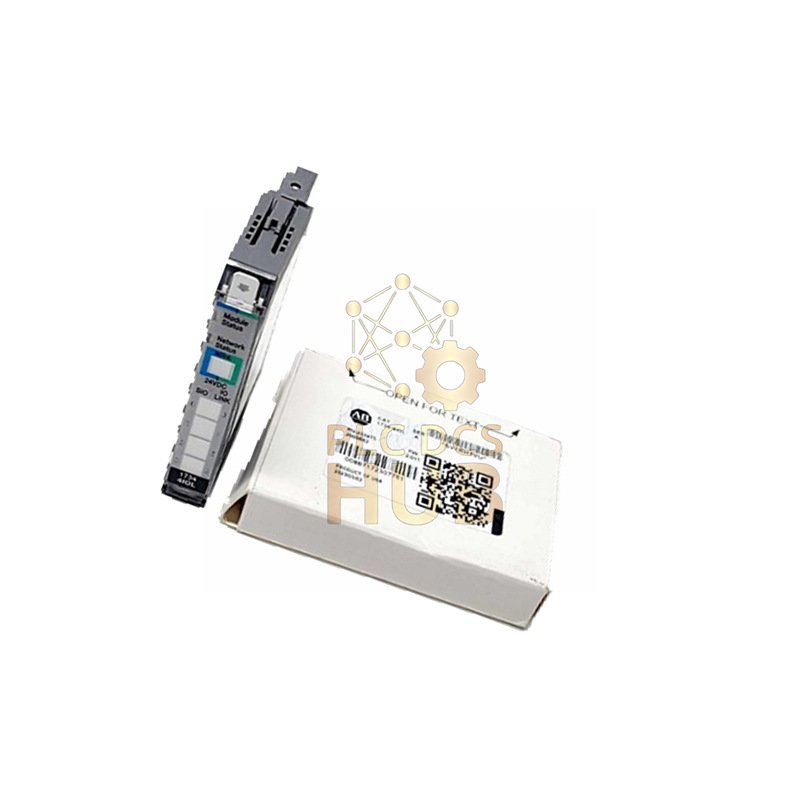

Allen-Bradley 1734-4IOL POINT I/O IO-Link Master Module

The Allen-Bradley 1734-4IOL delivers advanced IO-Link connectivity for POINT I/O automation systems. This four-channel master module enables smart sensor and actuator integration in industrial environments. Download our comprehensive technical documentation to explore all configuration possibilities.

Download Complete Technical Manual and Specifications

Technical Specifications

• Brand & Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 1734-4IOL
• Product Family: POINT I/O Communication Modules
• Interface Type: IO-Link Master with 4 independent channels
• Input Voltage Rating: 24V DC nominal (13-30V DC range)
• Output Voltage Rating: 24V DC (19.2-28.8V DC range)
• Input Current Consumption: 12 mA per channel
• Output Current Capacity: 0.15 mA per channel
• Backplane Power: 5V DC @ 100 mA maximum
• Communication Protocol: IO-Link Standard 1.1

Physical & Environmental Specifications

• Operating Temperature Range: -20 to 55°C (-4 to 131°F)
• Storage Temperature Range: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 2.5G @ 5-2000 Hz frequency
• Shock Resistance: 30G operating shock rating
• Enclosure Rating: IP20 (requires protective enclosure)
• Installation: DIN rail mounting (vertical or horizontal)

Expert Frequently Asked Questions

• Q: How many IO-Link devices can I connect to this master module?
  A: The 1734-4IOL supports up to four IO-Link devices, one per channel.
• Q: What types of devices can I connect to the IO-Link channels?
  A: You can connect smart sensors, RFID readers, valve terminals, and other IO-Link compatible devices.
• Q: Does this module support automatic parameter assignment?
  A: Yes, it supports automatic device replacement and parameter restoration features.
• Q: What network adapters work with this IO-Link master module?
  A: It works with DeviceNet, EtherNet/IP, and PROFIBUS DP network adapters.
• Q: Can I replace the module without system shutdown?
  A: Yes, the module supports Removal and Insertion Under Power (RIUP) functionality.
