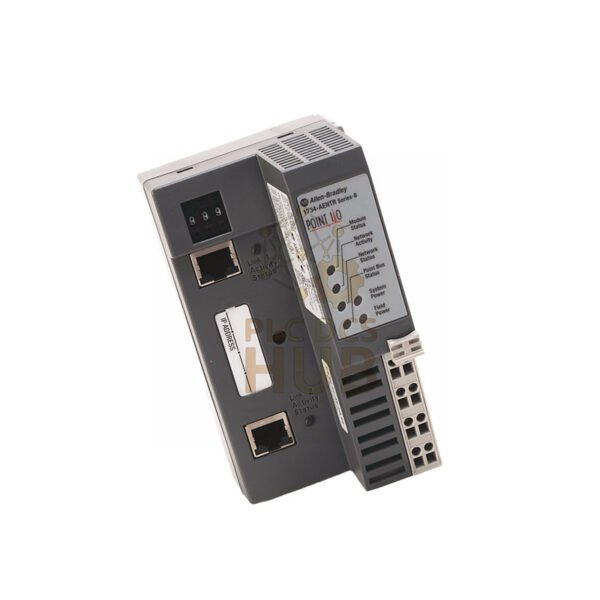

Allen-Bradley 1734-AENTR Ethernet/IP Adapter | Dual-Port Connectivity
Upgrade your control system with the versatile 1734-AENTR Ethernet/IP adapter. This dual-port module connects Point I/O to modern Ethernet networks with high-speed performance.
Get Installation Support
- Complete setup and configuration guide available
- Includes network topology examples and wiring diagrams
- Download Point I/O Manual Here
Technical Specifications
- Brand: Allen-Bradley
- Model: 1734-AENTR
- Series: Point I/O
- Type: Ethernet/IP Adapter Module
- Input Voltage: 24V DC
- Ethernet Speed: 10/100 Mbps (half/full duplex)
- Network Ports: 2 RJ-45 ports
- Cable Type: Category 5/6 twisted pair
- Power Consumption: 10.4W maximum
- Isolation Rating: 50V continuous
- I/O Capacity: 63 modules maximum
- Operating Temp: -4°F to 140°F (-20°C to 60°C)
- Weight: 0.62 lbs (0.28 kg)
- Mounting: DIN rail
- IP Configuration: Thumbwheel, BOOTP, DHCP, static
Compatibility Notes
- Works with all Point I/O modules
- Requires 24V DC power source
- Installs on left side of Point I/O system
- Uses standard Ethernet cabling
Frequently Asked Questions
- Q1: What network topologies does this adapter support?
- A1: The 1734-AENTR supports ring, star, and tree network topologies for flexible installation options.
- Q2: How do I set the IP address on this module?
- A2: You can use the built-in thumbwheel switches, BOOTP, DHCP, or configure a static IP address through software.
- Q3: Can I daisy-chain multiple devices with this adapter?
- A3: Yes, the dual ports allow daisy-chaining without additional network switches, reducing hardware costs.
- Q4: What is the maximum number of I/O modules supported?
- A4: This adapter can support up to 63 I/O modules with 31 direct connections maximum.
- Q5: Does this module require special network configuration?
- A5: No special routing tables or network scheduling is required – it uses standard Ethernet/IP protocol.
Shipping & Warranty
We ship globally via FedEx, UPS, and DHL. This product includes our 12-month warranty for quality assurance.
