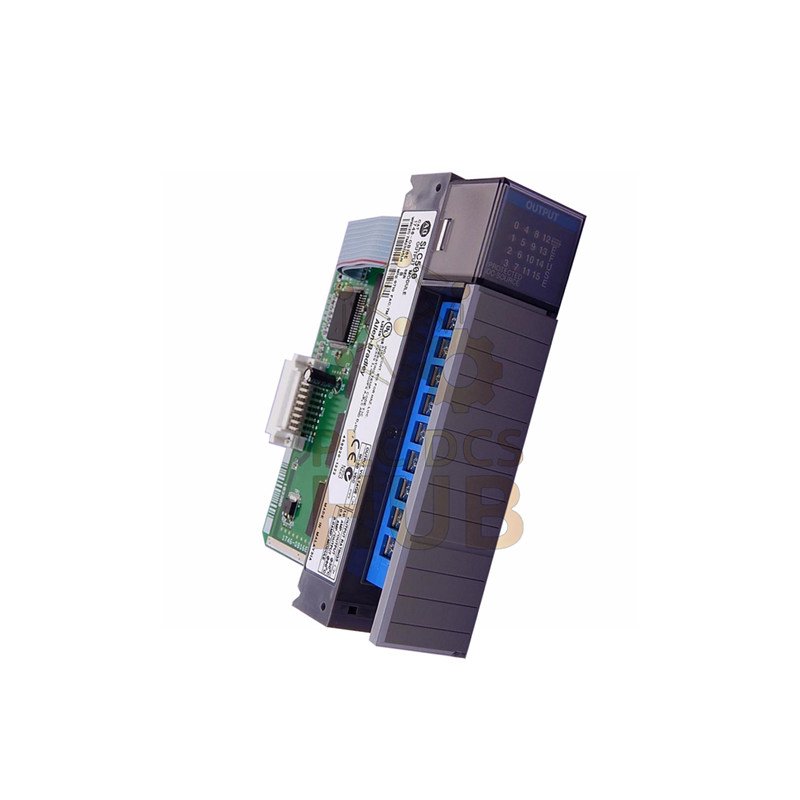

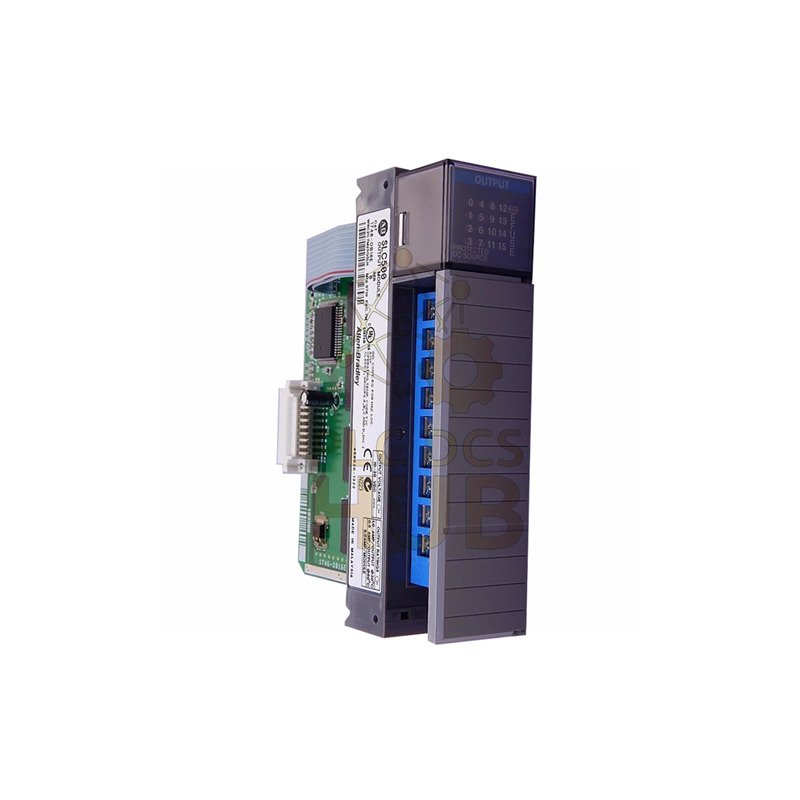

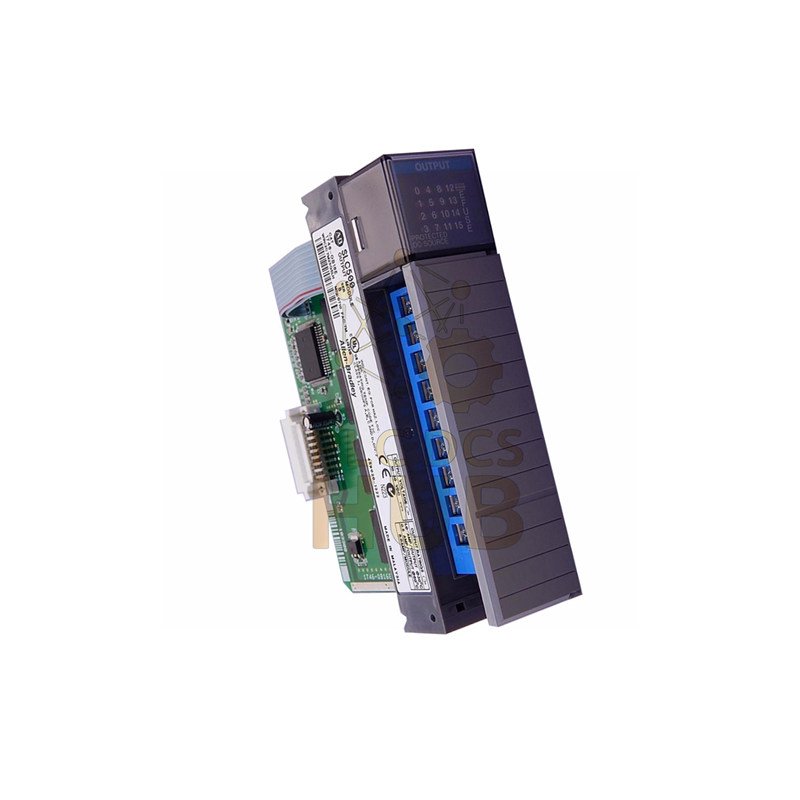

Allen-Bradley 1746-OB16E Digital DC Output Module
The Allen-Bradley 1746-OB16E delivers high-density DC output control for your SLC 500 system. This 16-channel sourcing module features electronic fuse protection and excellent reliability. Perfect for industrial applications requiring multiple DC output signals.
Key Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1746-OB16E (SLC 500 Series)
- Module Type: Digital DC Output Module
- Number of Outputs: 16 sourcing channels
- Voltage Range: 10-30V DC source operation
- Current Rating: 1.0A per point @ 30°C, 0.5A @ 60°C
- Module Current: 9.0A total @ 30°C
- Response Time: 1ms (ON and OFF)
- Leakage Current: 1mA maximum (off-state)
- Inrush Current: 2.0A for 2ms per point
- Backplane Current: 135mA @ 5V DC
- Heat Dissipation: 7.6W total (0.388W per point)
- Noise Immunity: NEMA ICS 2-230 rated
- Vibration Rating: 2.5G @ 10-200Hz
- Shock Rating: 30G operational
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Humidity Range: 5 to 95% non-condensing
Shipping Options
- Fast worldwide shipping via FedEx
- Reliable delivery through UPS
- International shipping with DHL
- Secure professional packaging
Warranty Coverage
- 12-month warranty included
- Comprehensive coverage for defects
- Quick technical support response
- Simple warranty claim process
Download User Manual
- Complete installation instructions
- Detailed wiring diagrams
- Configuration and programming guidance
- Download here: SLC 500 Hardware Manual
