Allen-Bradley 1746-OW16 SLC 500 Relay Output Module | 16-Point

Description

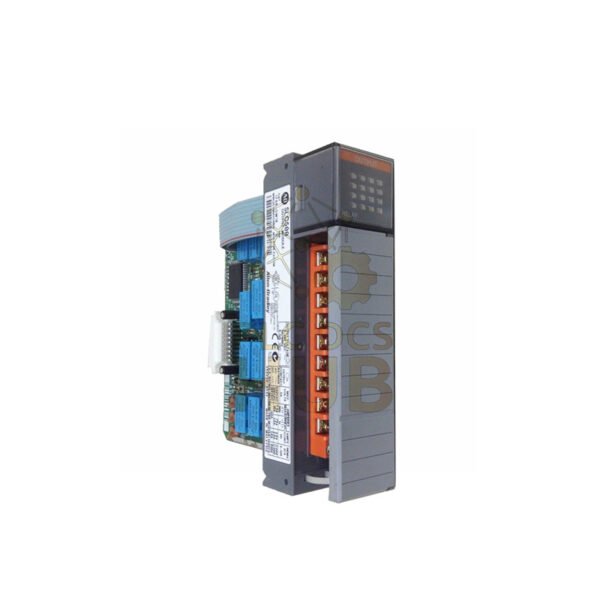

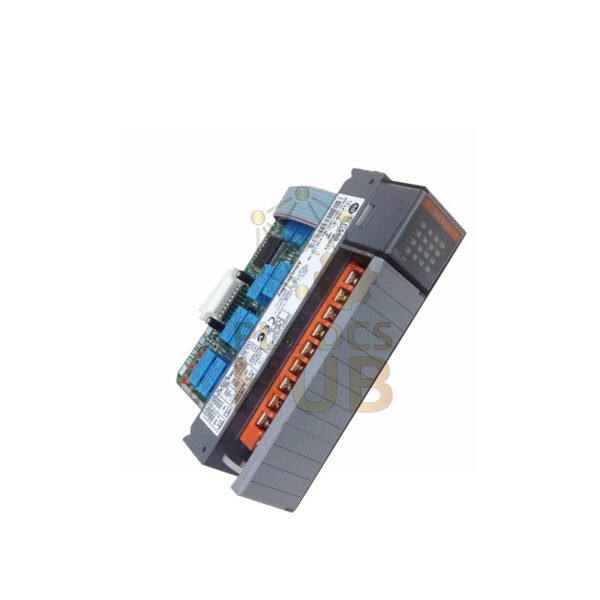

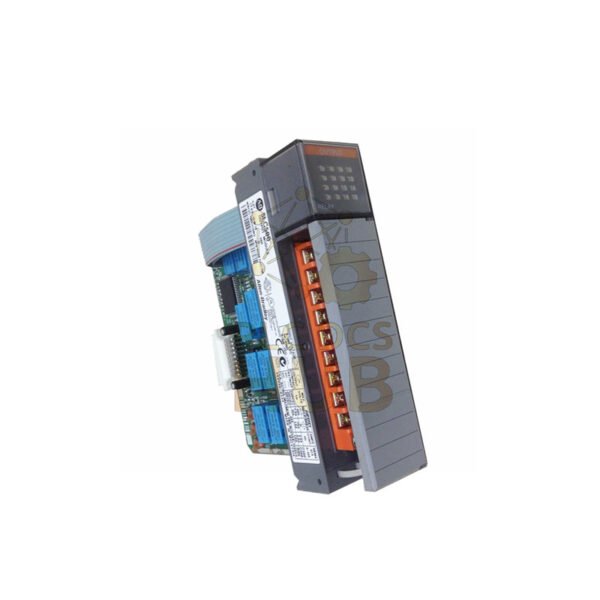

Allen-Bradley 1746-OW16 Relay Output Module

The Allen-Bradley 1746-OW16 provides ultimate flexibility for mixed voltage applications in SLC 500 systems. This 16-channel relay output module handles both AC and DC voltages simultaneously across two isolated groups, eliminating the need for interposing relays and simplifying your control panel design.

Key Technical Specifications

• Brand & Manufacturer: Allen-Bradley / Rockwell Automation
• Model: 1746-OW16 (SLC 500 Series)
• Module Type: Relay Contact Output (Dry Contact)
• Number of Outputs: 16 Normally Open Relay Channels
• Output Groups: 2 isolated groups (8 points per common)
• Voltage Range: 5-265V AC or 5-125V DC (per group)
• Contact Rating (120V AC): 1.5A break current, 15A make current
• Contact Rating (24V DC): 2.0A continuous current
• Contact Rating (125V DC): 1.2A break current, 0.22A make current
• Switching Speed: 10ms ON delay, 10ms OFF delay
• Backplane Current: 170mA @ 5V DC, 180mA @ 24V DC
• Power Dissipation: 5.7W Total
• Minimum Load Current: 10mA @ 5V DC
• Isolation: 1500V between field and logic
• Operating Temperature: 0° to 60° C (32° to 140° F)
• Storage Temperature: -40° to 85° C (-40° to 185° F)

Packaging & Shipping

• Package includes: One (1) 1746-OW16 module with terminal block
• We ship worldwide via FedEx, UPS, and DHL
• All items receive careful packaging to ensure perfect condition delivery

Warranty Information

• We provide a solid 12-month warranty on this module
• This warranty covers all defects in materials and workmanship
• Our technical support team will help resolve any issues promptly

Frequently Asked Questions (FAQ)

• Q: Can I mix AC and DC voltages on the same module?
  A: Yes, the two isolated groups allow one group to run AC voltages while the other runs DC voltages simultaneously.
• Q: What surge suppression do you recommend for this module?
  A: We recommend installing external surge suppression devices on each channel to protect the relay contacts and extend module life.
• Q: What is the maximum continuous current per module?
  A: The module can handle 16A continuous current total, but ensure you do not exceed 1440VA total power.
• Q: How often should I inspect the module for chemical damage?
  A: Perform periodic inspections based on your environment’s chemical exposure levels to maintain sealing integrity.
• Q: Can I use this module for high-inrush inductive loads?
  A: The relay contacts handle 15A make current at 120V AC, making them suitable for many inductive loads with proper surge protection.

Download Complete User Manual

• For full installation, wiring, and specifications details: Download SLC 500 Hardware Manual Here
