Allen-Bradley 1747-M13 Flash Memory Module | SLC 500 Processors

Description

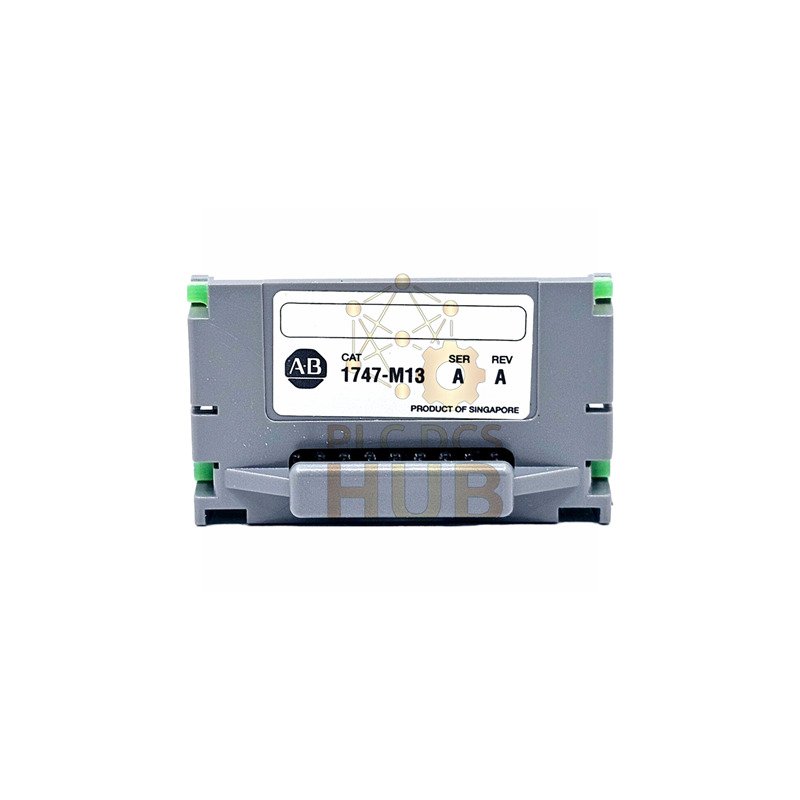

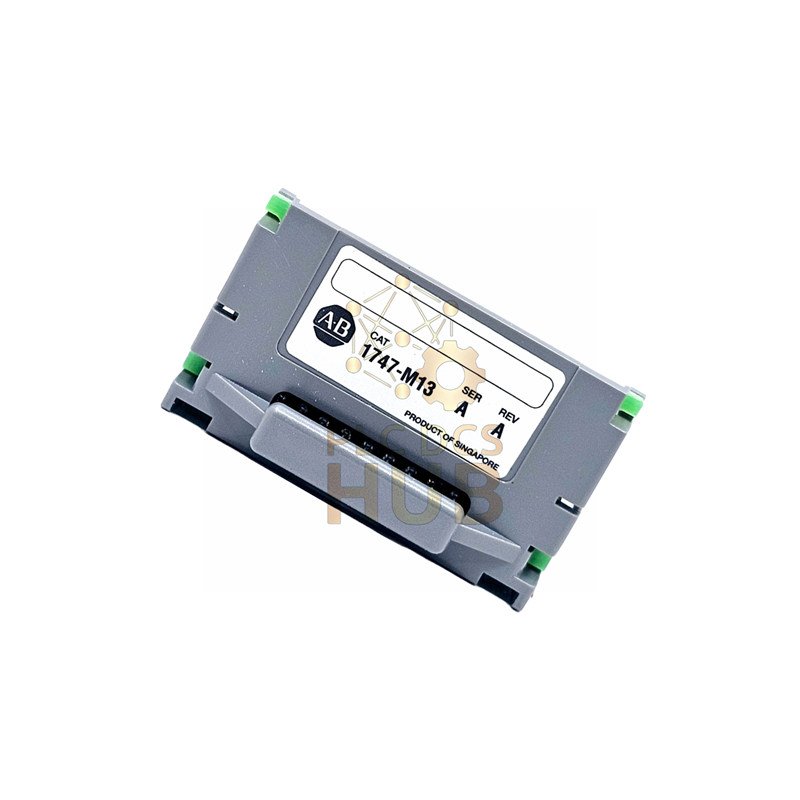

Allen-Bradley 1747-M13 Memory Module | 64K Flash Backup

Protect your valuable control programs with the reliable 1747-M13 memory module. This flash memory unit ensures your SLC 500 programs stay safe even during power loss or battery failure.

Installation Resources

• Complete installation and programming guide available
• Learn how to properly install and configure your memory module
• Download SLC 500 Manual Here

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1747-M13
• Series: SLC 500
• Module Type: Flash Memory Module
• Memory Capacity: 64 kilobytes (64,000 words)
• Memory Type: Non-volatile Flash EEPROM
• Compatible Processors: SLC 5/03, SLC 5/04, SLC 5/05
• Required Adapter: 1747-M15 Series B (not included)
• Installation: Directly to processor PC board
• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• ESD Protection: Requires proper handling

Compatibility Information

• Designed specifically for SLC 500 series processors
• Requires 1747-M15 Series B memory adapter
• Not compatible with Series A adapters
• Works with both fixed and modular hardware

Frequently Asked Questions

• Q1: Why do I need the 1747-M13 memory module?
• A1: The 1747-M13 provides permanent program storage that survives battery failure and power loss, preventing costly downtime.
• Q2: What adapter do I need for this memory module?
• A2: You need the 1747-M15 Series B adapter. Using a Series A adapter may damage the memory module.
• Q3: How do I transfer programs to the memory module?
• A3: After connecting to your processor, use your programming software to “burn” or transfer the program to the EEPROM module.
• Q4: Will this work with my SLC 5/02 processor?
• A4: No, the 1747-M13 is only compatible with SLC 5/03, 5/04, and 5/05 processors.
• Q5: What precautions should I take when handling this module?
• A5: Always power off the controller before installation and use proper ESD protection to prevent electrostatic damage.

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. This product includes our 12-month warranty against defects.
