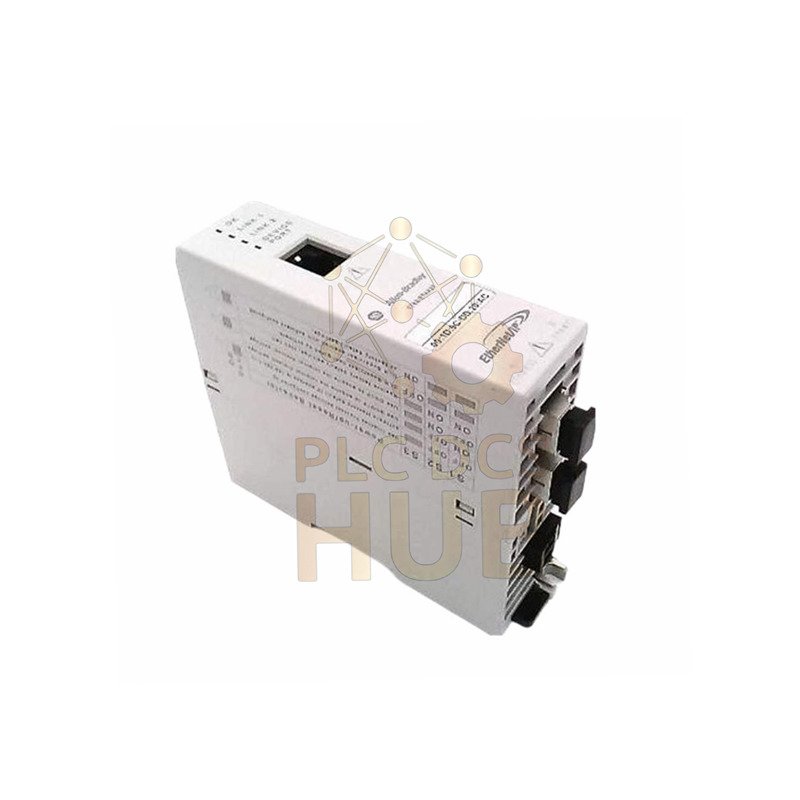

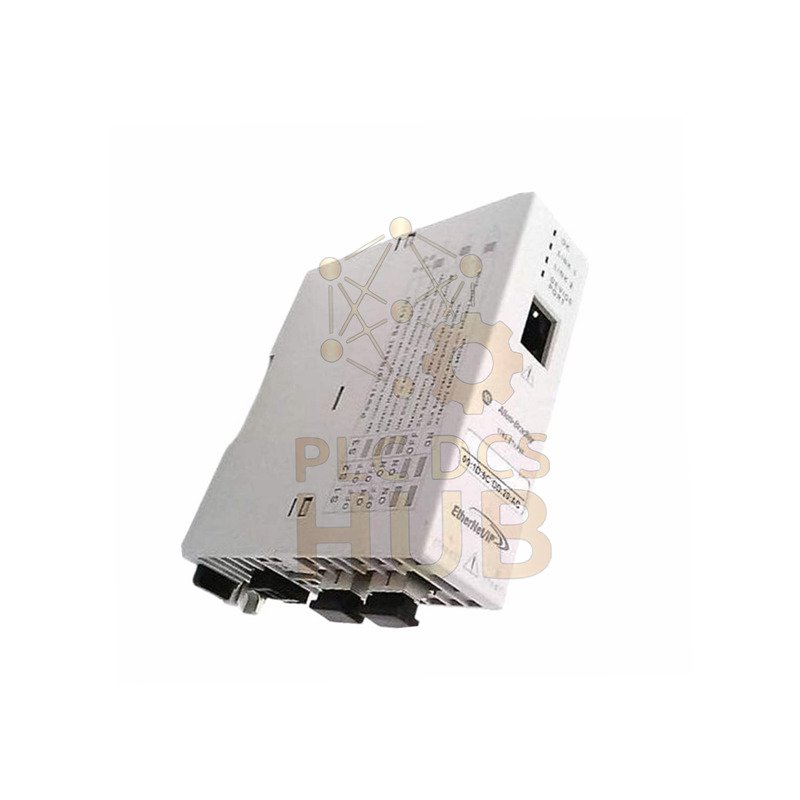

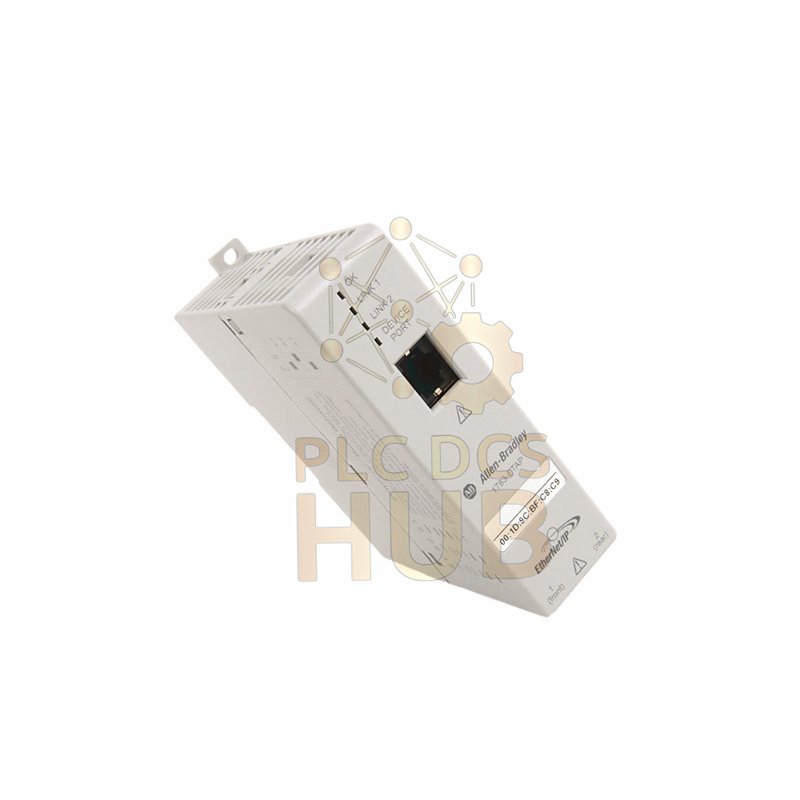

Allen-Bradley 1783-ETAP Embedded Switch – 100 Mbps Industrial Module

Description

Allen-Bradley 1783-ETAP Product Description

The Allen-Bradley 1783-ETAP is a compact and rugged Ethernet communication module designed for industrial automation. It acts as a switch to connect devices in a ControlLogix or other Rockwell Automation system. This module ensures reliable data transfer in harsh environments.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model Number: 1783-ETAP
• Series: Embedded Switch
• Transmission Speed: 100 Mbps
• Port Configuration: 2 x Copper Ports
• Dimensions: 2.0″ x 4.0″ x 5.0″ (5.1 x 10.2 x 12.7 cm)
• Shipping Weight: 0.2 kg (7.1 oz)

Installation & Maintenance

• Installs quickly on standard DIN rails or panels.
• Plug-and-play setup requires no complex software configuration.
• Easy maintenance with accessible ports and indicators.

Compatibility & Certifications

• Seamlessly integrates with ControlLogix, CompactLogix, and other Rockwell systems.
• Meets international industrial safety and quality standards.
• Ensures network compliance in critical applications.

Warranty & Shipping

• Warranty: Backed by a 12-month quality guarantee.
• Shipping Methods: Global delivery available via FedEx, UPS, and DHL.
• Package Contents: Includes 1 x 1783-ETAP unit and necessary documentation.

Typical Applications

• Factory automation and assembly lines.
• Oil & Gas monitoring systems.
• Power generation and water treatment control.
• Material handling and robotic cells.

FAQ (Frequently Asked Questions)

Q: Can I use standard Ethernet cables with the 1783-ETAP?

A: Yes, it supports standard RJ45 copper cabling for easy integration.

Q: Is this module suitable for high-humidity areas?

A: Yes, the sealed housing design resists moisture and dust ingress.

Q: How do I troubleshoot a connection failure?

A: Check the LED indicators; a solid green light indicates a good link.

Q: Do I need special tools for installation?

A: No, only a standard screwdriver is required for mounting.

Buying Guide

• Verify your network requires a 100 Mbps copper switch.
• Ensure you have enough DIN rail space for this compact module.
• Contact us for bulk orders or system integration support.
