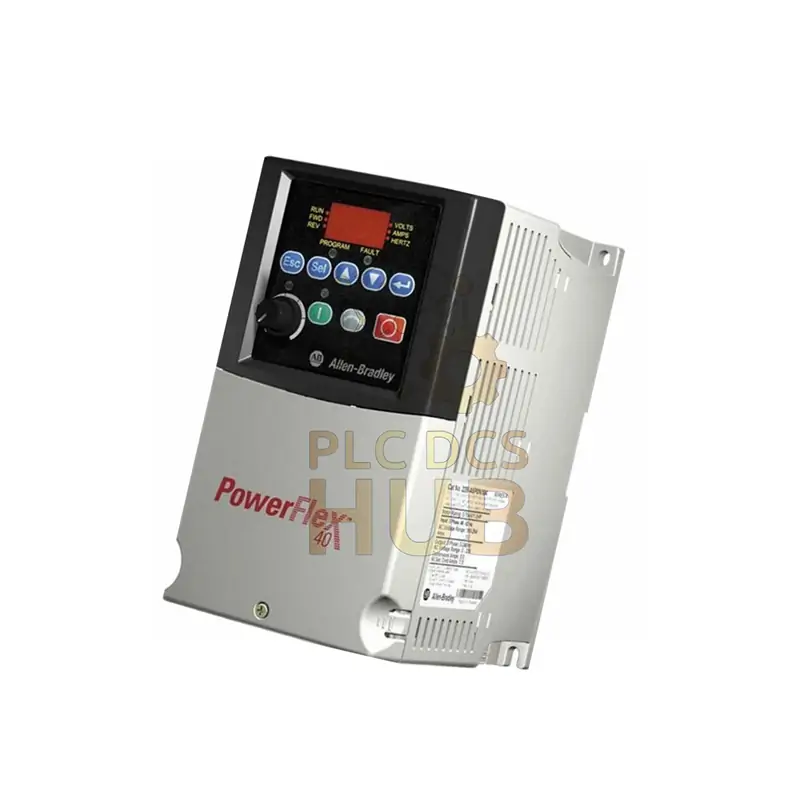

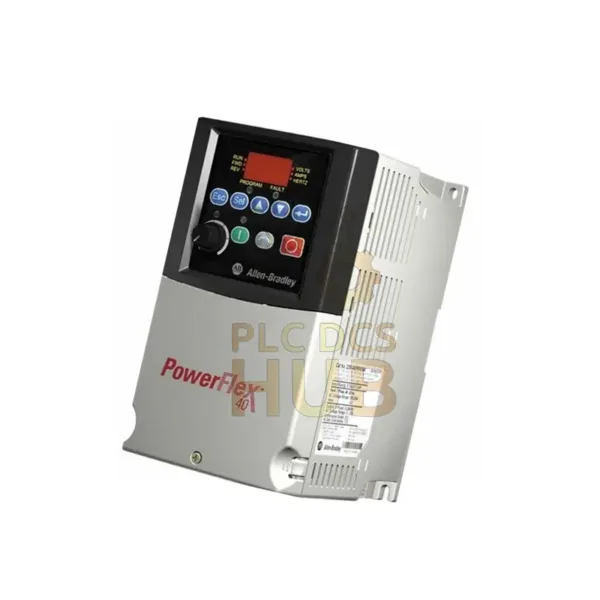

Allen Bradley 22B-V2P3F104 Drive PowerFlex 40P

Description

Allen-Bradley 22B-V2P3F104 PowerFlex 40 Drive – 0.5HP, 120V, Single Phase

Compact Power for Small Motors

• Perfect for: Small machines, conveyors, pumps
• Input: 120V AC single phase
• Output: 0.5HP (2.3A) to your motor
• Mounting: Easy flange install (IP20 rated)
• Weight: Just 4.5 kg (10 lbs)

Key Specs – 22B-V2P3F104

• Voltage Range: 100-120V AC
• Frequency: 50/60Hz
• Size: 250 x 244 x 94mm (9.8 x 9.6 x 3.7in)
• Temp Range: 0°C to 60°C (32°F to 140°F)
• Storage Temp: -40°C to 85°C (-40°F to 185°F)
• Certified: Meets EN 50082-2 & EN 50081-2 EMC standards

5 Common Questions

• Q: Will this work with my 110V outlet?
  A: Yes! Works with 100-120V power.
• Q: Can it control very slow speeds?
  A: Yes, has special low-speed torque mode.
• Q: Is it noisy?
  A: Very quiet operation.
• Q: How do I set it up?
  A: Includes simple autotune feature.
• Q: Can it get wet?
  A: No – IP20 means keep it dry.

What You Get

• 12-month worry-free warranty
• Fast shipping worldwide
• Need help? Download full instructions here
