Allen-Bradley 22F-D6P0N113 | PowerFlex 4M AC Drive Large Stock

Description

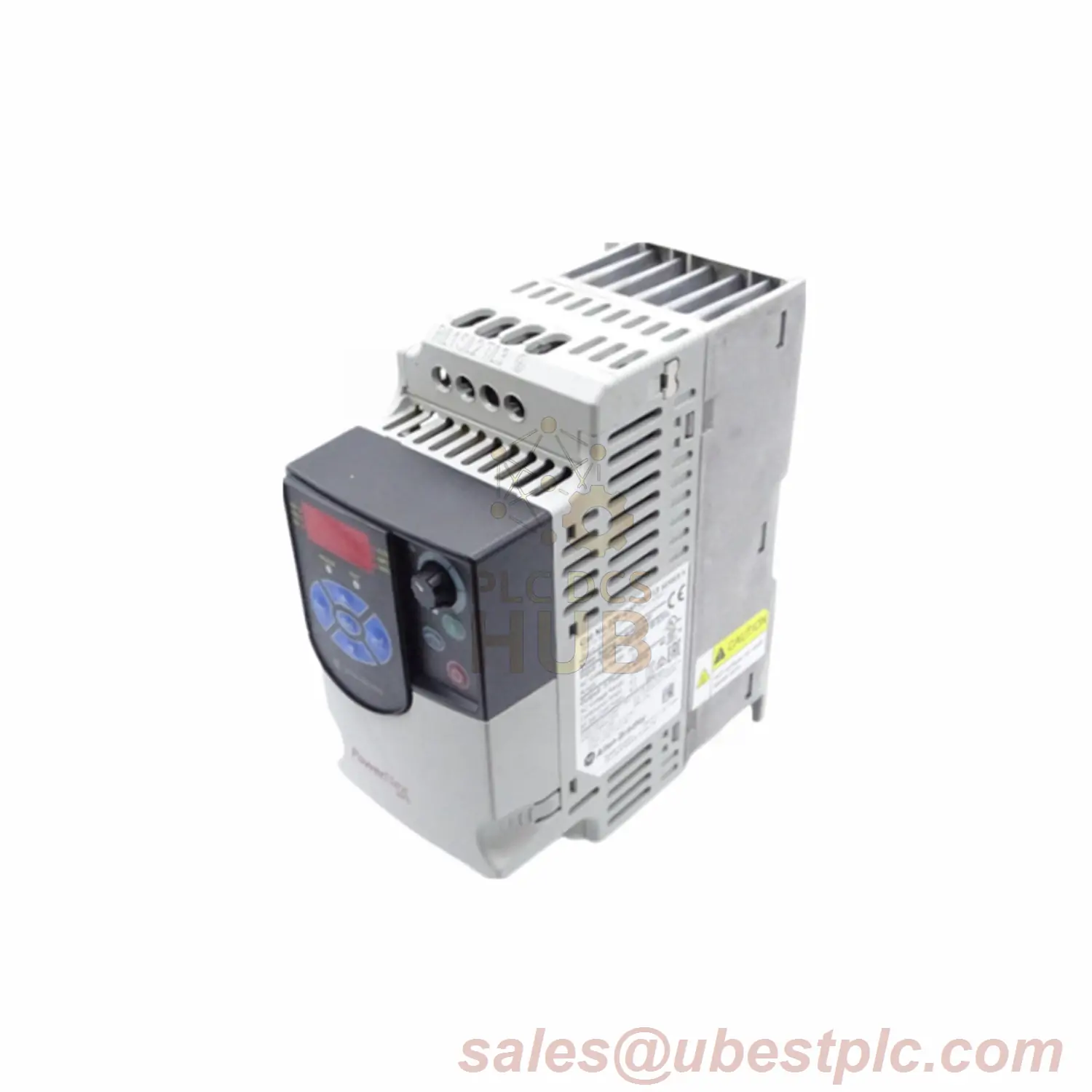

Allen-Bradley 22F-D6P0N113 PowerFlex 4M Drive – 3HP Industrial Workhorse

Drive At A Glance

• Power: 3HP (2.2kW) output for demanding applications
• Input: 380-480VAC, 3-phase (6.2A)
• Smart Features: Built-in EMC filter & RS485 communication
• Compact: Frame B design saves space
• Easy Control: Fixed keypad with LCD display

Technical Specifications

• Model: 22F-D6P0N113 (Allen-Bradley)
• Output: 0-460VAC, 6A, 3HP
• Frequency Range: 0-400Hz
• Control Inputs: 5 digital (24VDC), 2 analog (0-10V/4-20mA)
• Relay Outputs: 2 Form C contacts
• Mounting: DIN rail or panel (zero stacking supported)
• Protection: 10A fuse rating, removable MOV
• Dimensions: Compact Frame B design
• Certifications: EN61800-3 compliant

Expert Questions Answered

1. Can I use this in ungrounded systems?
   Yes, features removable MOV for flexible installation.
2. What communication protocols work?
   RS485 standard, optional BACnet, PROFIBUS, Ethernet/IP.
3. Is the keypad programmable?
   Yes, fixed keypad allows full configuration.
4. How does it handle power fluctuations?
   10A fuse protection and voltage range 340-528VAC.
5. Can multiple drives be stacked together?
   Yes, supports zero stacking up to 40°C ambient.

Warranty & Support

12-month quality guarantee. Download the 22F-D6P0N113 manual for complete wiring and programming instructions.
