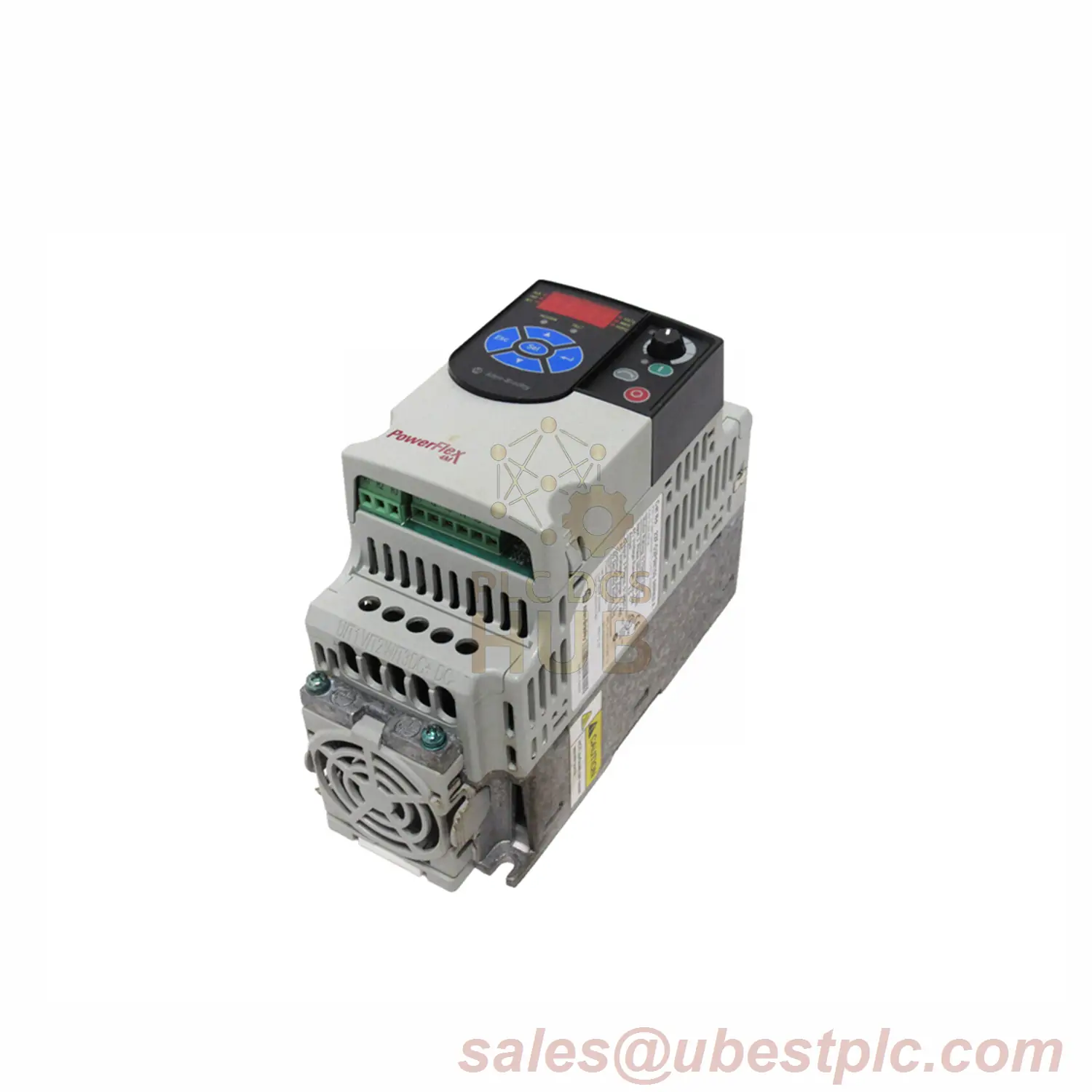

Allen-Bradley 22F-V4P5N103 PowerFlex 4M AC Drive Large Stock

Description

Allen-Bradley 22F-V4P5N103 PowerFlex 4M Drive – 1HP Compact Solution

Quick Overview

• Converts power: 1-phase (120V) to 3-phase (230V)
• Powerful: 1HP (0.75kW) output
• Compact: Frame B size for tight spaces
• Easy control: Built-in keypad with LED indicators
• Safe: 30A fuse protection

Technical Details

• Model: 22F-V4P5N103 (Allen-Bradley)
• Input: 100-120VAC, 1-phase, 18A
• Output: 0-230VAC, 3-phase, 4.5A
• Frequency: 50/60Hz
• Enclosure: IP20 (NEMA Open)
• PWM Frequency: Up to 10kHz (adjustable)
• Mounting: Panel mount
• Weight: Lightweight B frame

Key Benefits

• Space saver: Smallest in PowerFlex 4M series
• Easy wiring: Feed-through design
• Reliable: Removable MOV for power stability
• Fast shipping: Available via FedEx, UPS, DHL

Common Questions

1. Can it run 3-phase motors from regular outlets?
   Yes, converts 120V household power to 230V 3-phase.
2. What happens during power surges?
   30A fuse and MOV protect the drive.
3. Is the keypad removable?
   No, this model has a fixed keypad.
4. How quiet is this drive?
   Very quiet with adjustable PWM up to 10kHz.
5. What maintenance does it need?
   Just keep it clean and check connections.

Support & Warranty

Backed by 12-month coverage. Get the 22F-V4P5N103 manual for full installation guides.
