Description
Product Overview

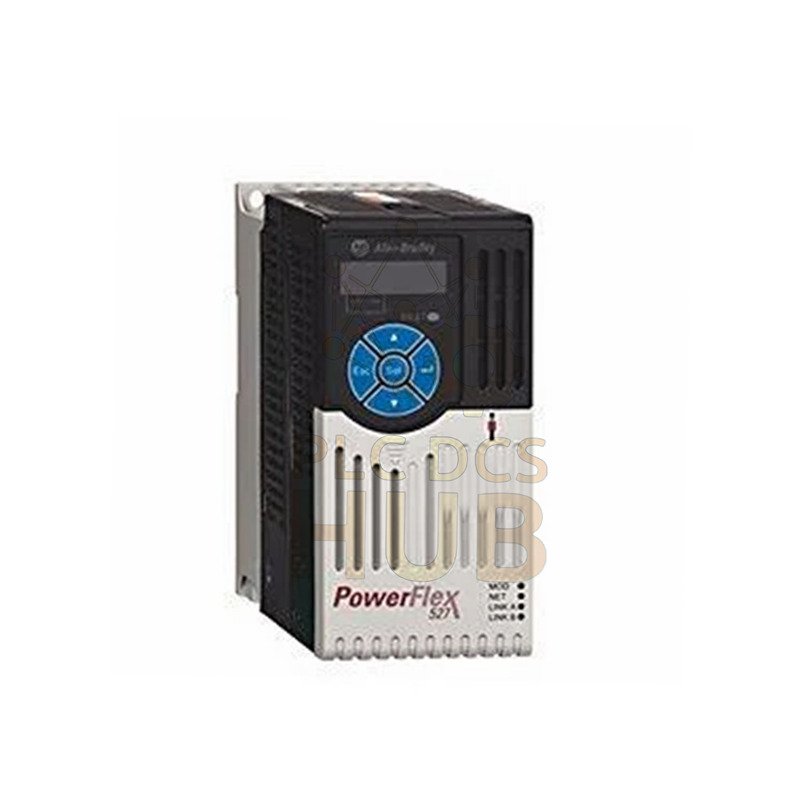

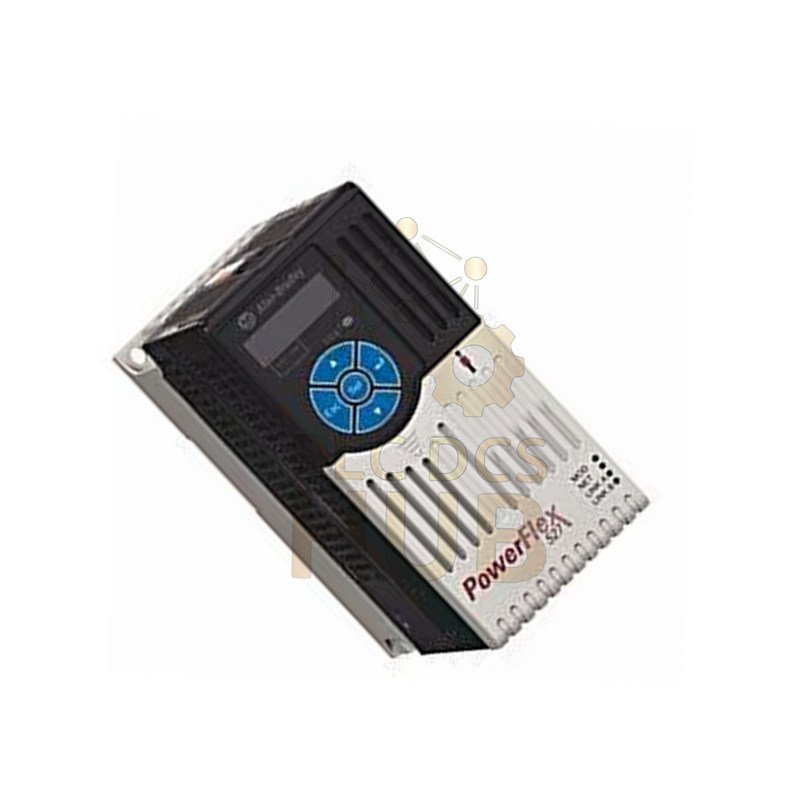

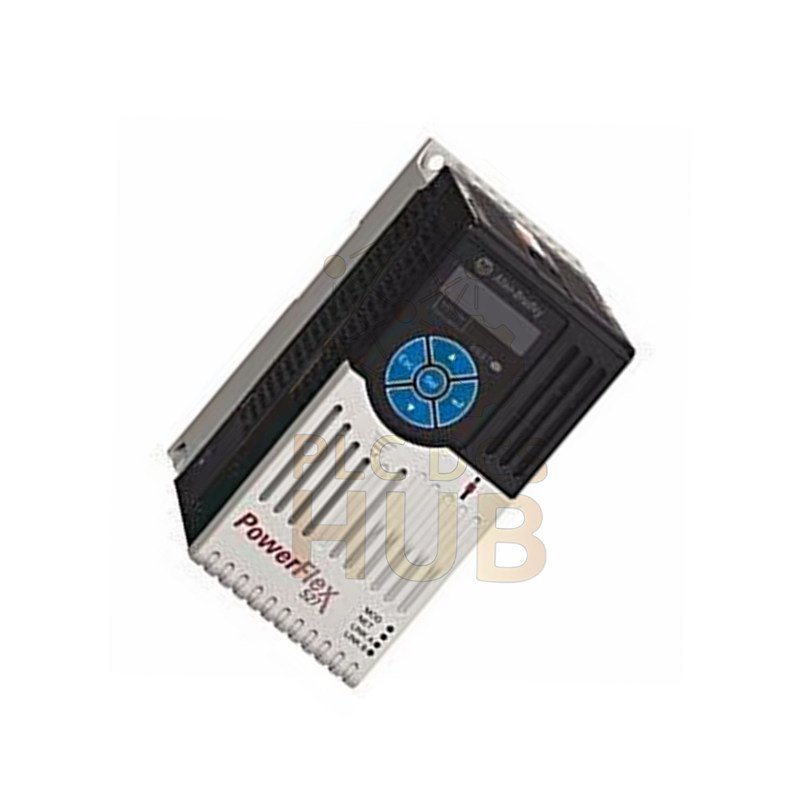

- The Allen-Bradley 25C-D043N114 is a compact AC drive from the PowerFlex 527 line.
- It controls motor speed and torque with simple, stable frequency output.
- The drive links directly with Allen-Bradley PLCs through dual-port EtherNet/IP.
- An EMC filter is built in for clean electrical performance.
- The open IP20 housing protects from small dust and fits tight control panels.
- Normal duty support is 30 HP, while heavy duty support is 25 HP.
Technical Specifications
- Brand: Allen-Bradley
- Series: PowerFlex 527 AC Drives
- Model: 25C-D043N114
- Type: Adjustable frequency drive
- Electrical Ratings
- Voltage: 380–480 VAC.
- Phase: three-phase input.
- Output current: 43 A.
- Normal duty: 30 HP / 22 kW.
- Heavy duty: 25 HP / 18.5 kW.
- Switching performance designed for high start cycles.
- Built-in EMC filter improves system stability.
- Mechanical
- Frame size: E.
- Weight: 5.44 kg.
- Enclosure: IP20 open-type.
- Cooling: forced-air design.
- Compact shape for panel mount layouts.
- Control Features
- Dual-port EtherNet/IP for fast PLC link.
- Integrated safety for safer motion tasks.
- Easy motor tune for quick setup.
- Stable torque at low motor speeds.
- Fast start and stop for dynamic machines.
- Environmental Ratings
- Operating range: -10°C to +40°C.
- Storage: -20°C to +70°C.
- Humidity: 5%–95% non-condensing.
- Shock and vibration tested for plant floors.
- Application Highlights
- Good for conveyors and feeders.
- Stable for pumps and fans.
- Useful in packaging machines.
- Supports light and heavy mechanical loads.
- Quick setup helps reduce downtime.
- Product Advantages
- Simple integration with ControlLogix and CompactLogix.
- Low heat build-up for long run cycles.
- Smooth ramping reduces wear on motors.
- High reliability for 24/7 plants.
- Fast diagnostics for quick fault clearing.
- Warranty & Shipping
- Warranty: 12 months.
- Shipping: FedEx, UPS, DHL available.
FAQ
- How can I reduce noise in long cable runs?
- Use shielded motor cables and keep them away from high-power lines.
- Can this drive handle fast direction changes?
- Yes, tune the ramp times to allow smooth reverse movement.
- What if the motor warms up under load?
- Check cooling airflow and review drive current settings.
- How do I avoid communication drops?
- Use short EtherNet/IP cables and stable grounding.
- Can I use this drive in dusty rooms?
- Use a sealed panel, as the drive is IP20 open-type.
