Allen-Bradley PowerFlex 4M Series VFD | 22F-D8P7N103 Original New

Allen-Bradley PowerFlex 4M VFD – 22F-D8P7N103 (5.0 HP, 3.7 kW)

Description

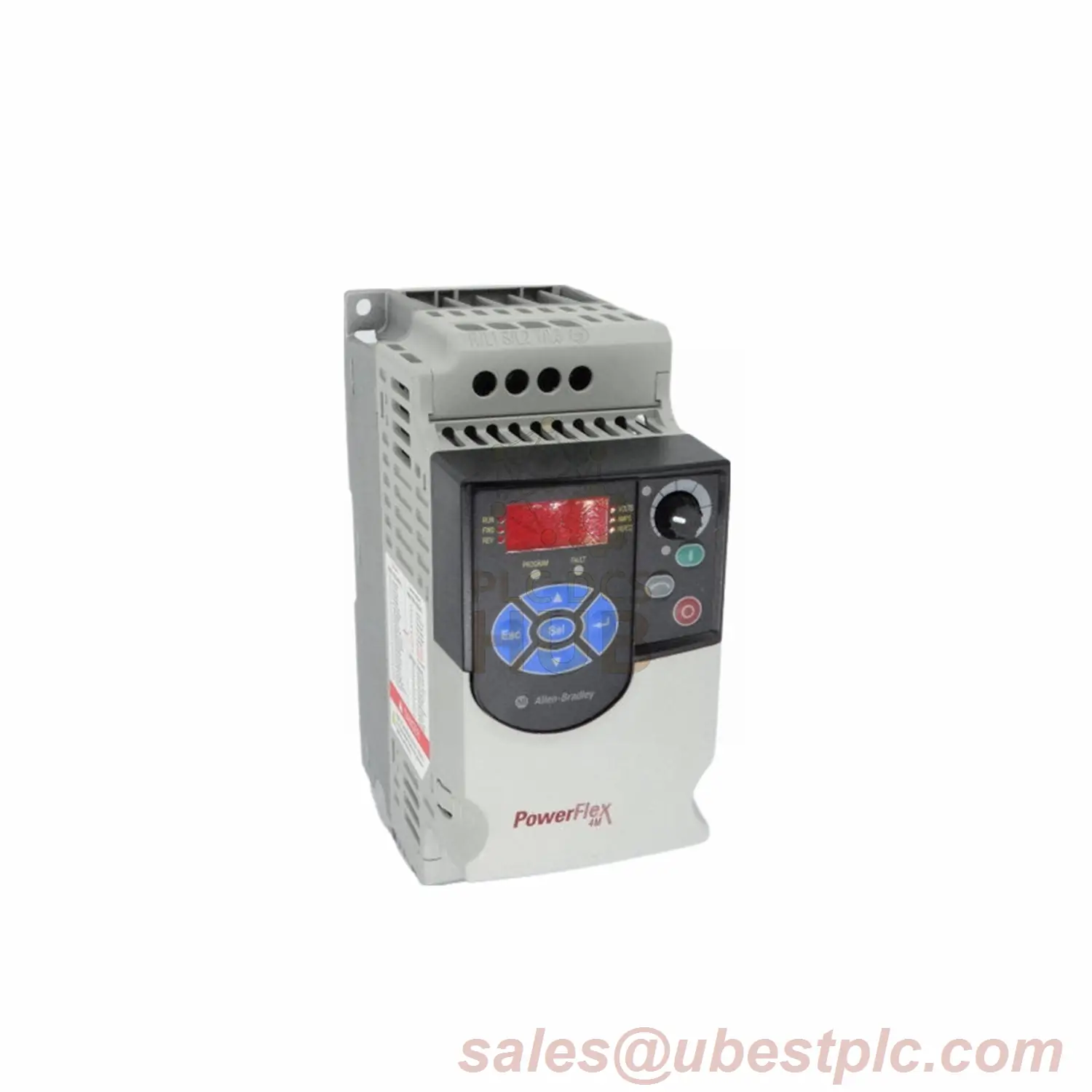

The Allen-Bradley 22F-D8P7N103 is a compact, cost-effective Variable Frequency Drive (VFD) from the PowerFlex 4M series. Designed for 3-phase motors, it delivers precise speed control with 340-528VAC input and 0-460VAC output. Ideal for OEM applications, it features built-in RS485 communication, 5 discrete inputs, and 1 analog input. Its IP20 open-type enclosure allows easy panel mounting.

Technical Data

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 22F-D8P7N103 (Full Suffix)
• Input: 340-528VAC, 3-Phase, 8.3A
• Output: 0-460VAC, 8.7A, 3.7kW (5.0 HP)
• Frequency Range: 0-400 Hz
• Efficiency: 97%
• I/O: 5x Discrete Inputs, 1x Form C Relay, 1x Analog Input (0-10V/0-20mA)
• Communication: RS485 (Optional: Ethernet/IP, DeviceNet, ProfiBus)
• Enclosure: IP20 / NEMA Open
• Operating Temp: Up to 50°C

Compatibility & Options

Works seamlessly with Logix controllers (CompactLogix, ControlLogix). Optional communication cards: EtherNet/IP, DeviceNet, ProfiBus. Compare with similar models: PowerFlex 40P, PowerFlex 525.

Package & Warranty

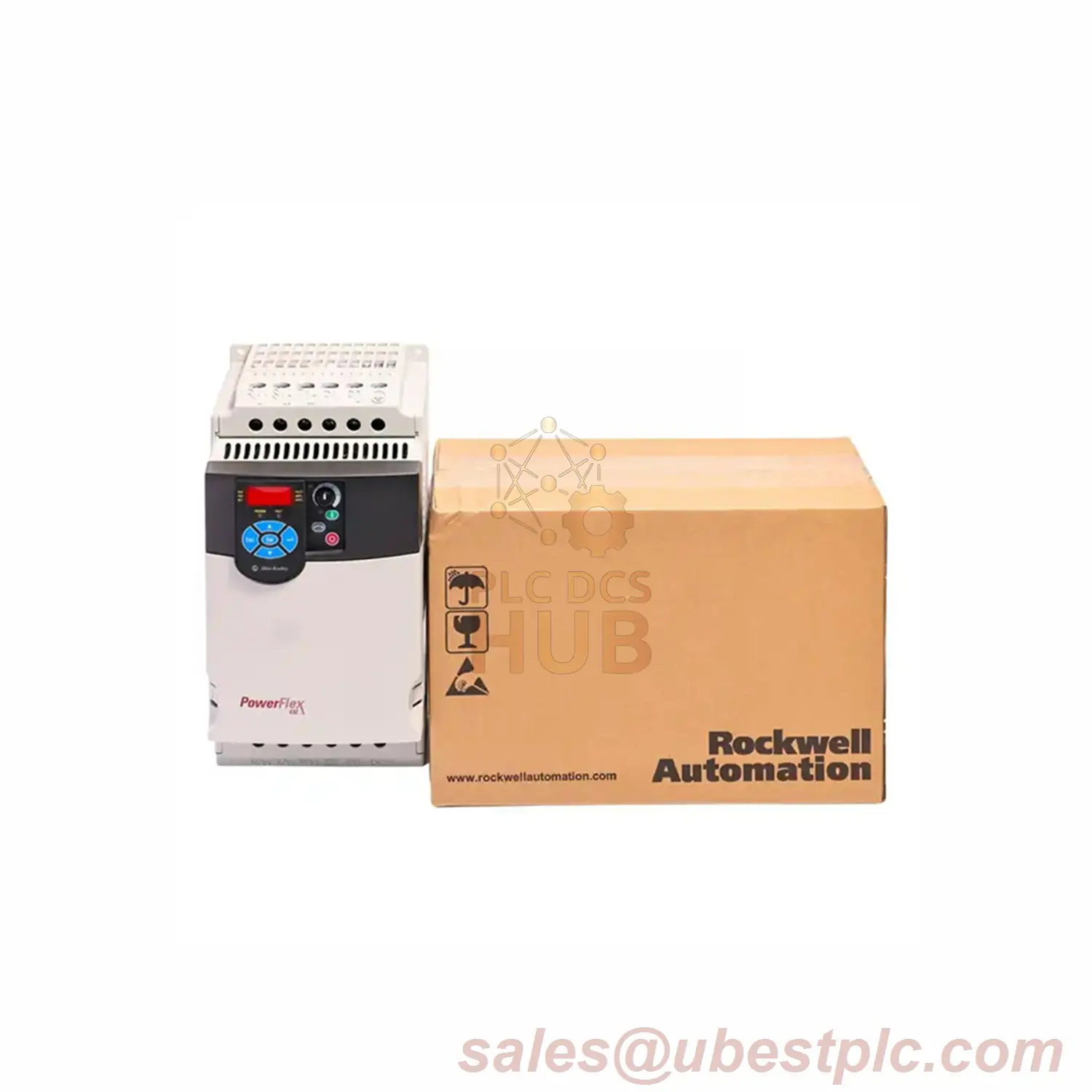

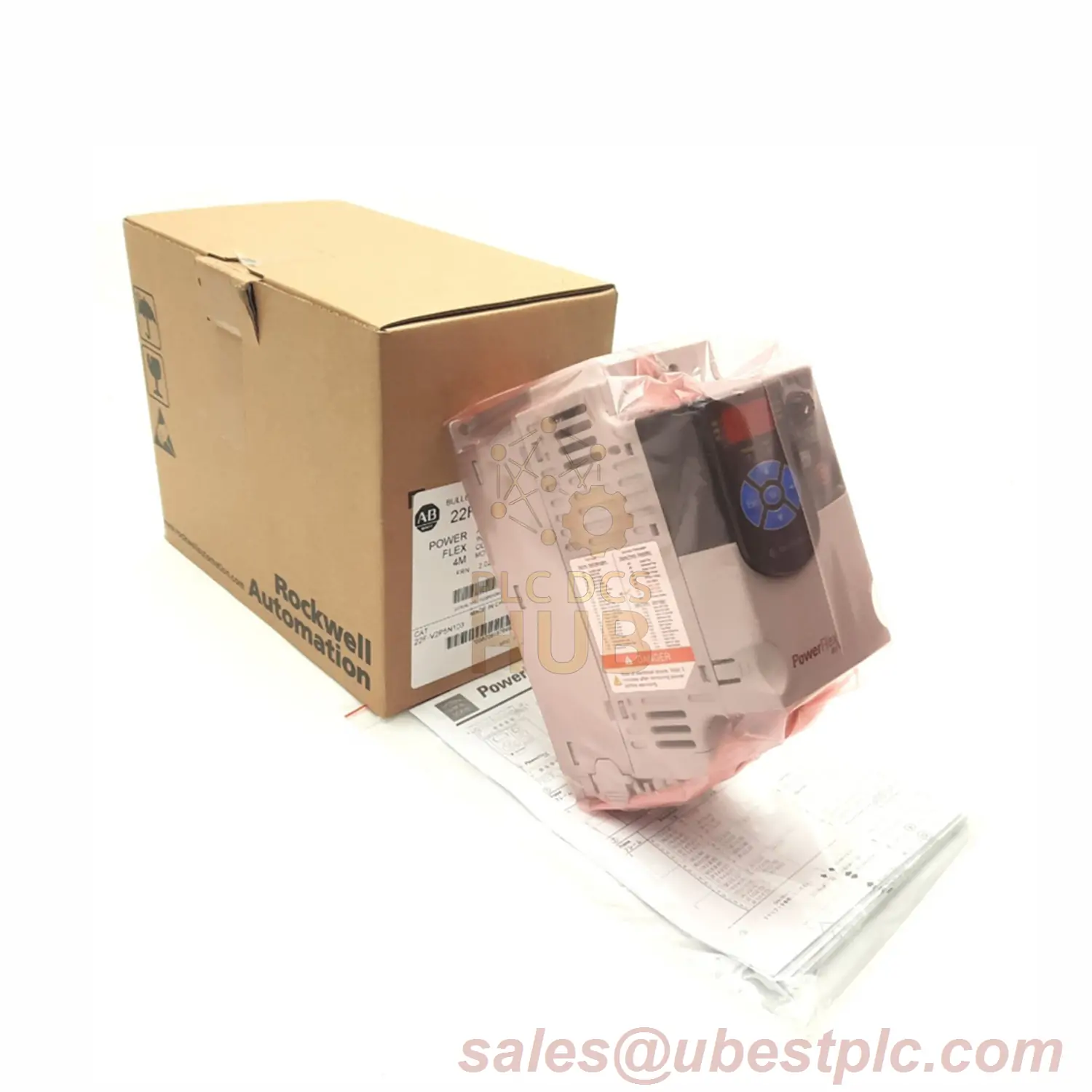

• Included: VFD unit, user manual, mounting screws.
• Shipping: FedEx, UPS, or DHL (express options available).
• Warranty: 12 months from date of purchase.

Need more details? Download the full PowerFlex 4M Manual for wiring diagrams and advanced programming.
