Description

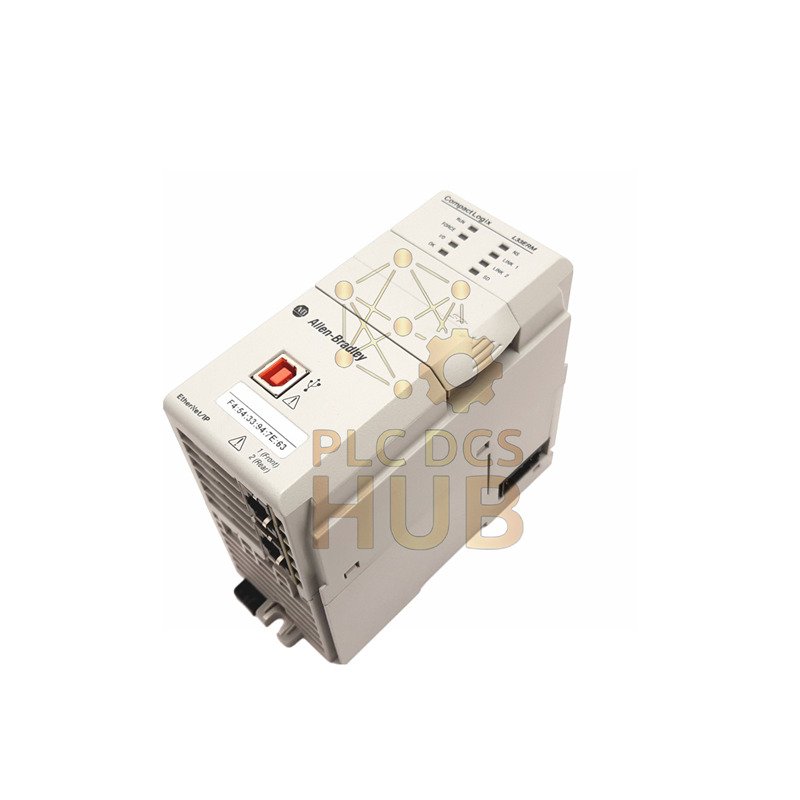

Allen-Bradley 1769-L33ERM Compact GuardLogix 5370 Controller
The Allen-Bradley 1769-L33ERM delivers robust automation control in a compact form factor. This advanced controller handles complex industrial applications with precision and reliability.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-L33ERM
- Processor Speed: 500 MHz with real-time processing capability
- Controller Memory: 2 MB user memory with error correction
- Non-Volatile Storage: Includes 1 GB 1784-SD1 card (upgradable to 2 GB)
- Communication Ports: Dual Ethernet/IP (10/100 Mbps), USB 2.0 programming port
- Motion Control: 8-axis coordinated motion over EtherNet/IP
- I/O Capacity: Supports 16 local 1769 Compact I/O modules across 3 banks
- Scan Time: 0.8 ms per 1K instructions for fast execution
- Operating Temperature: 0° to 60°C (32° to 140°F) with 5-95% humidity rating
- Vibration Resistance: 5G @ 10-500 Hz operation, 15G @ 10-500 Hz non-operating
- Shock Rating: 30G operating, 50G non-operating
- Isolation Voltage: 1500 VAC continuous rating
- Power Consumption: 6.8W @ 24V DC nominal operation
- Wire Compatibility: 22-14 AWG solid, 22-16 AWG stranded copper
- Certifications: UL, cUL, CE, ATEX, IECEx for global compliance
Packaging & Shipping
- Factory sealed box contains one 1769-L33ERM controller unit
- Includes one 1 GB 1784-SD1 industrial-grade memory card
- Package dimensions: 8 x 8 x 5 inches with 2 lb shipping weight
- Global shipping via FedEx, UPS, and DHL express services
- 12-month warranty coverage from date of purchase
Compatible Products Comparison
- 1769-OB32: 32-point digital output module for expanding control capabilities
- 1769-IQ16: 16-point digital input module for sensor integration
Professional FAQ
- What is the maximum number of simultaneous tasks supported?
- The controller supports 32 tasks with 100 programs per task
- Can I use third-party drives with the motion control features?
- The system works best with Allen-Bradley Kinetix drives
- What software is required for programming this controller?
- Use Studio 5000 Logix Designer version 21 or later
- How do I configure the Ethernet/IP network settings?
- Use the built-in web server or RSLogix 5000 software
- What is the expected service life of this controller?
- Typical operational life exceeds 10 years in proper conditions
