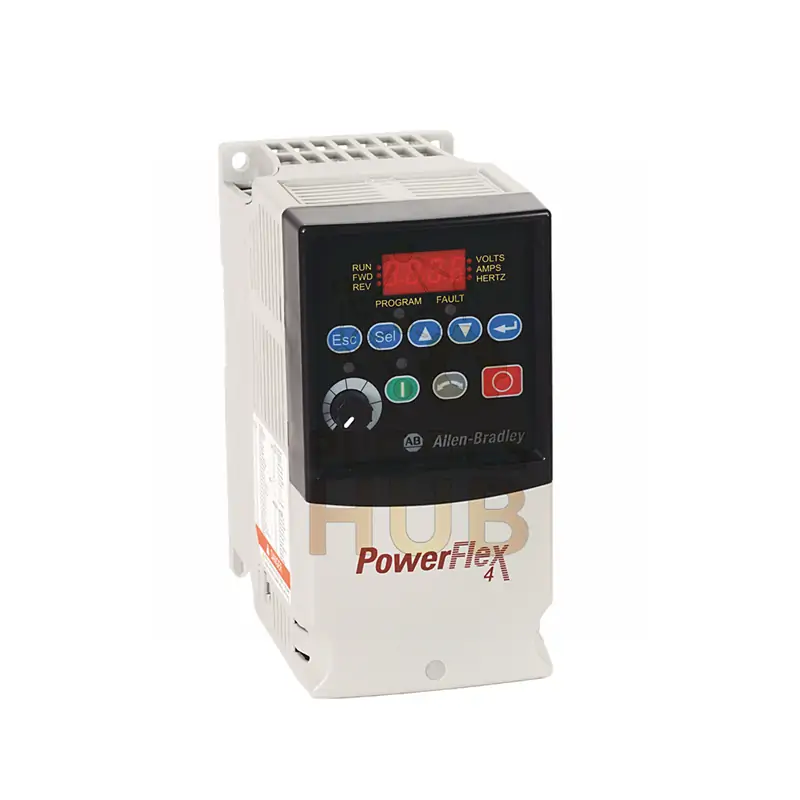

Allen-Bradley 22D-B2P3H204 PowerFlex Drive – 0.5HP Compact Control
Precision in small packages: The 22D-B2P3H204 delivers reliable 0.5HP (2.3A) motor control with advanced features in a space-saving plate-mount design.
Why This Drive Stands Out
- ???? Compact power: 2.3A output for 0.5HP motors
- ⚡ Efficient operation: 97.5% energy efficiency
- ????️ Built-in protection: Surge and overload safeguards
- ???? Flexible control: 0-500Hz adjustable frequency
- ???? Network ready: RS485 communication built-in
Technical Specifications
- Model: 22D-B2P3H204 (Frame B)
- Input: 3-phase 240V AC (216-264V range)
- Output: 2.3A continuous, 4.6A peak (200%)
- Efficiency: 97.5% typical
- Mounting: Plate mount (IP20)
- Braking: DC injection braking
- Temperature: -10°C to +40°C operating
- Humidity: 5-95% non-condensing
What’s Included
- 22D-B2P3H204 drive unit
- Mounting plate
- Quick start guide
Your Assurance
Backed by our 12-month quality guarantee for worry-free operation.
Shipping Options
Fast delivery via FedEx, UPS or DHL with tracking.
Common Questions
- Can this drive run a 1HP motor?
No, maximum is 0.5HP (2.3A). - Is it waterproof?
No, IP20 is for indoor use only. - What cables are needed?
Standard 3-phase power cables. - Can I adjust acceleration time?
Yes, 0-600s programmable. - Does it work with single-phase?
No, requires 3-phase input.
Compare With Other Models
- 22B-D6P0F104 – 3HP capacity with flange mount
- 22B-E012H204 – 5HP waterproof version
