Allen-Bradley MicroLogix 1762-OW8 – 8-Point Relay Output Module

Description

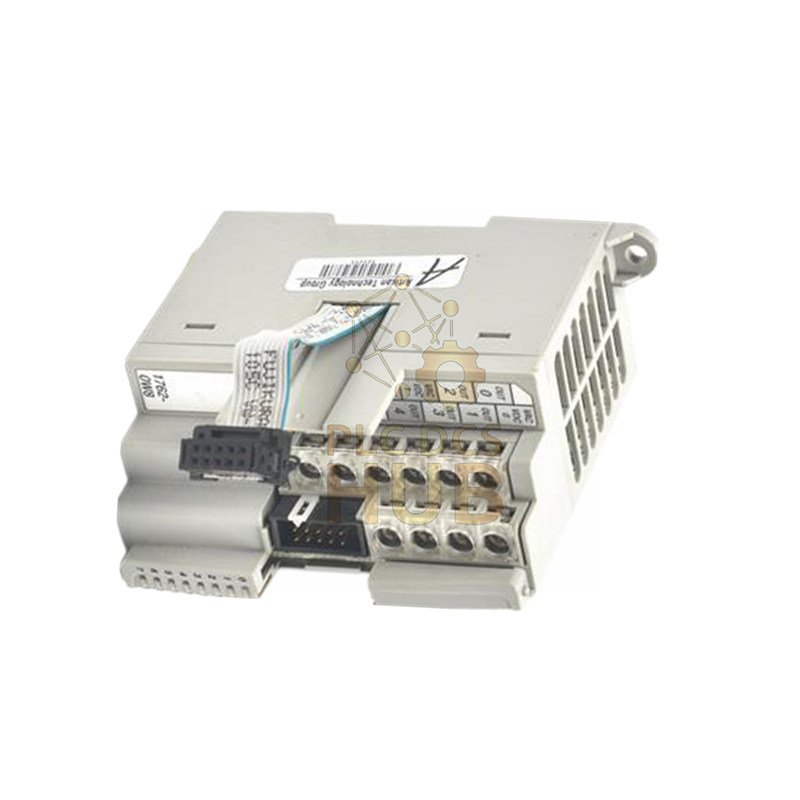

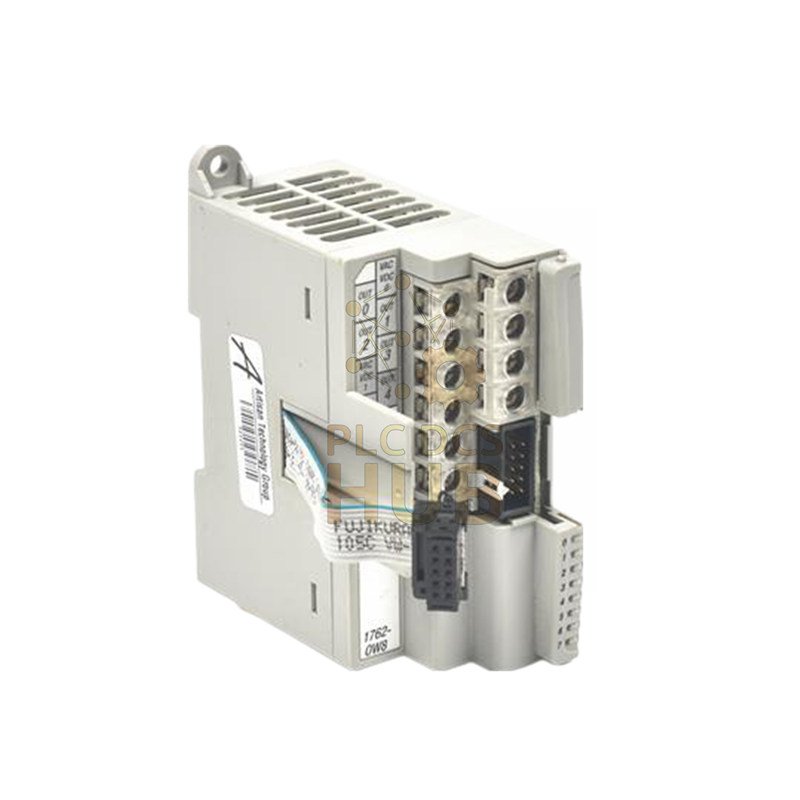

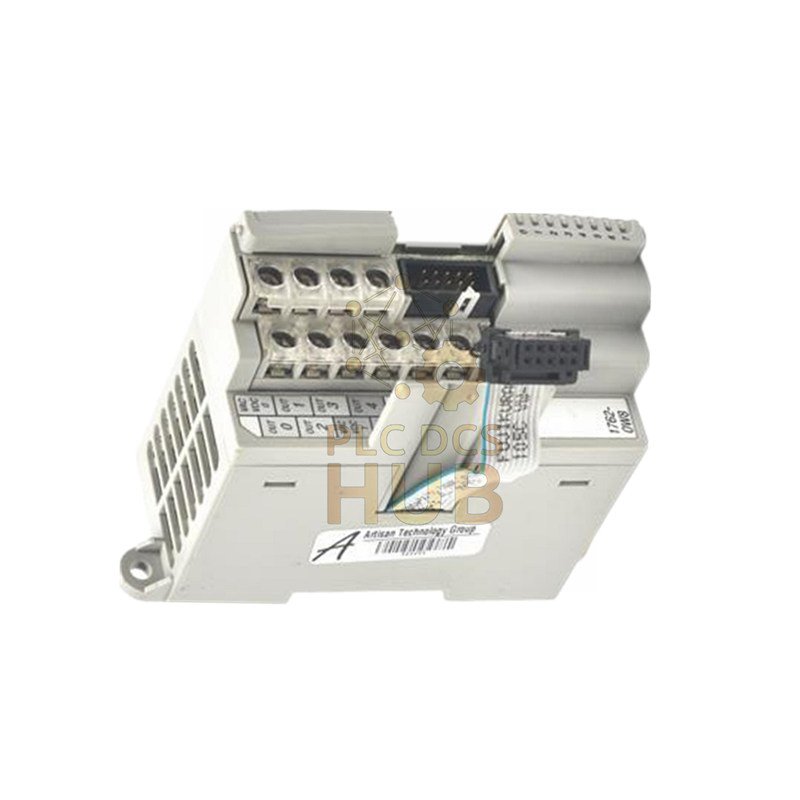

Allen-Bradley 1762-OW8: 8-Point Relay Output Module

The Allen-Bradley 1762-OW8 delivers flexible relay output control for MicroLogix systems. This Rockwell Automation module provides eight relay outputs supporting both AC and DC voltages.

Technical Specifications & Performance Data

• Brand: Allen-Bradley
• Model: 1762-OW8
• Module Type: Relay Output Module
• Number of Outputs: 8 relay points
• Output Configuration: Normally open contacts
• Voltage Range: 5-265V AC / 5-125V DC
• Current per Point: 2.5A maximum
• Group Current: 8A per common group
• Total Module Current: 16A maximum
• Response Time: 10 ms switching
• Contact Life: 100,000 operations minimum
• Heat Dissipation: 2.9 Watts total

Electrical Characteristics & Ratings

• Bus Current Draw: 80 mA at 5V DC (0.40W)
• 24V DC Current: 90 mA at 24V DC (2.16W)
• Contact Material: Silver alloy for long life
• Isolation Voltage: 1500V AC between groups
• Dielectric Strength: 2000V AC for 1 minute
• Insulation Resistance: 100 MΩ at 500V DC
• Power Supply Distance: 6 modules maximum

Environmental Specifications

• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Pollution Degree: 2 (industrial environments)
• Vibration Resistance: 5G at 10-500 Hz
• Shock Resistance: 30G operational rating
• Altitude Rating: 2000 meters maximum

Packaging & Shipping Information

• Package Includes: One 1762-OW8 module
• Shipping Weight: 228 grams (0.50 lbs)
• Dimensions: Standard MicroLogix form factor
• Shipping Methods: FedEx, UPS, DHL available
• Delivery Time: Express options available

Comparison With Related Products

• The 1762-OW8 provides 8 relay outputs
• Compare with the 1762-L24BXBR MicroLogix controller
• Or the 1762-L40AWA PLC controller
• This module offers flexible AC/DC switching capability
