Description

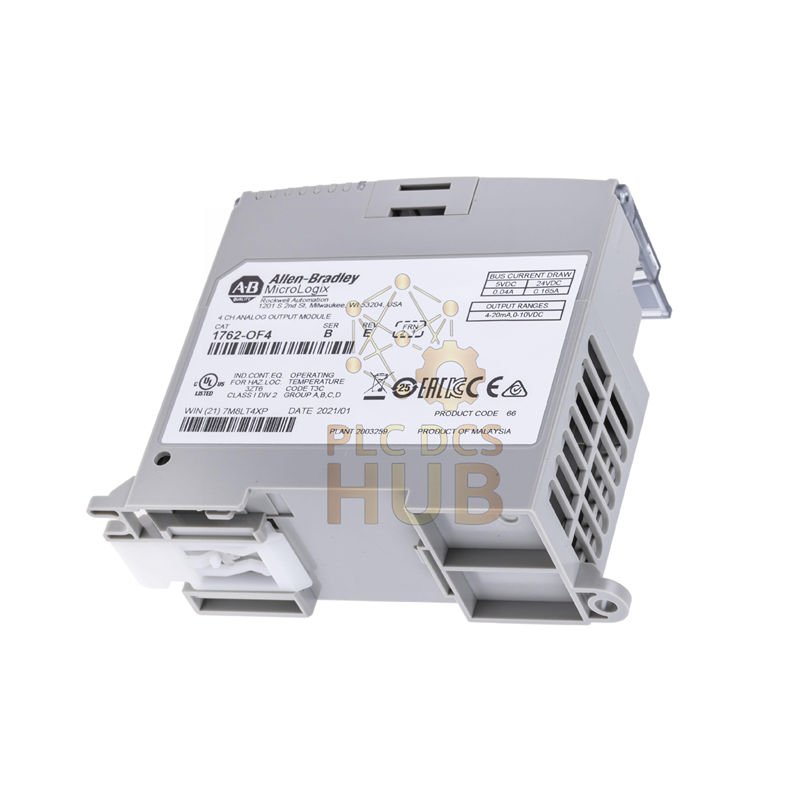

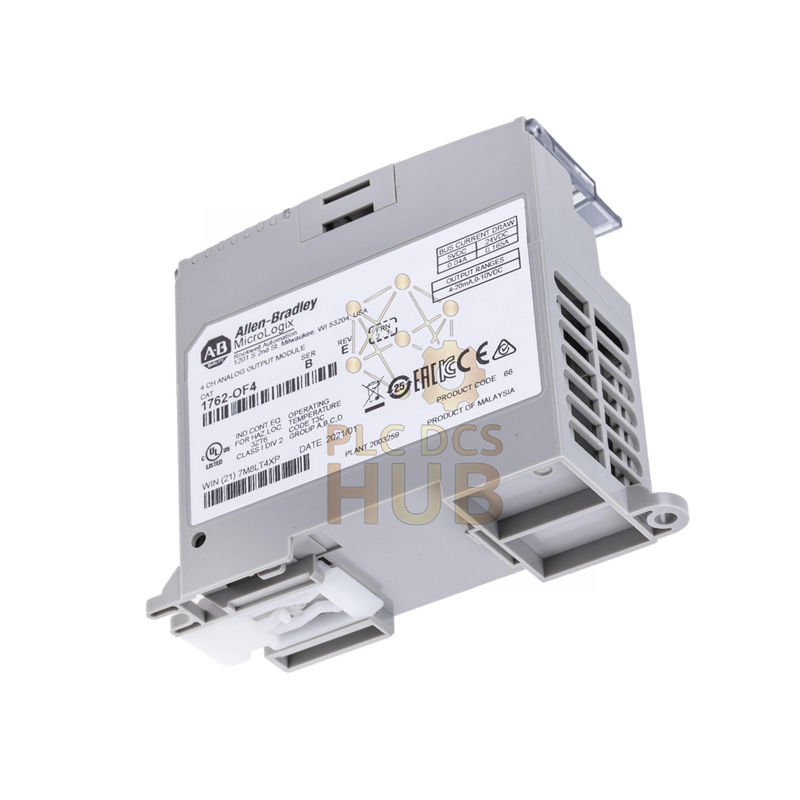

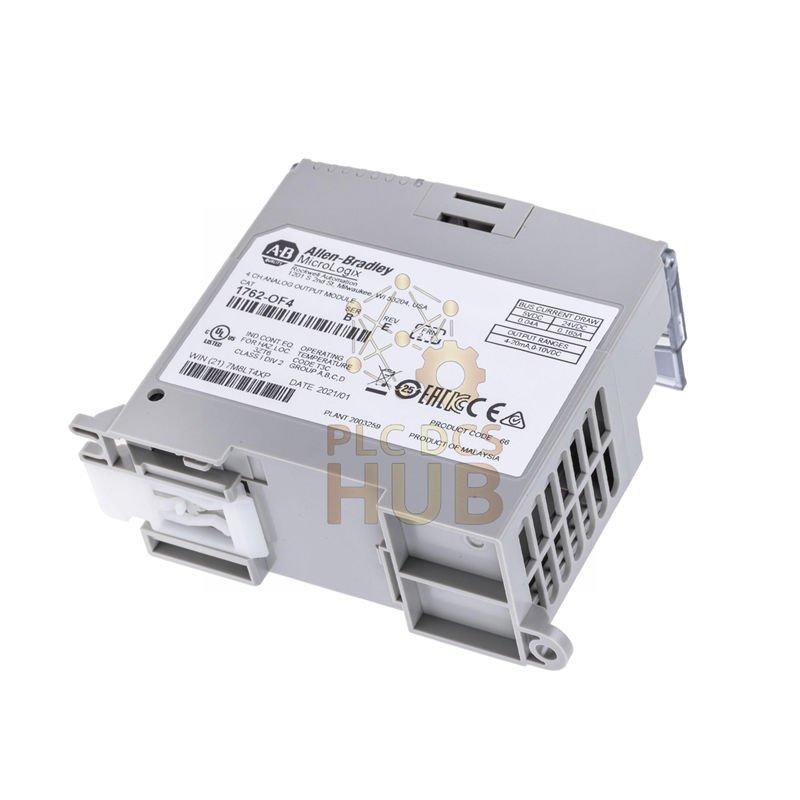

Allen-Bradley 1762-OF4: 4-Channel Analog Output Module
This flexible analog output module gives precise control for your MicroLogix system. The 1762-OF4 converts digital signals to analog outputs. Perfect for controlling valves, drives, and other devices.
- 4 output channels for versatile control
- Voltage and current output options
- Works with MicroLogix 1100, 1200, 1400 controllers
- High accuracy for precise automation
Technical Specifications
| Brand | Allen-Bradley |
| Model | 1762-OF4 |
| Series | MicroLogix 1762 |
| Module Type | 4-Channel Analog Output |
| Output Channels | 4 single-ended |
| Voltage Output | 0-10V DC, ±10V DC, 0-5V DC |
| Current Output | 0-20mA, 4-20mA |
| Resolution | 12-bit |
| Accuracy | ±0.5% at 25°C (77°F) |
| Repeatability | ±0.12% |
| Update Time | 2.5 ms per channel |
| Power Supply | 24V DC |
| Heat Dissipation | 2.8 Watts |
| Weight | 235 grams |
| Dimensions | 90 x 87 x 40 mm |
| Load Resistance (Voltage) | >1 kΩ |
| Load Resistance (Current) | 0-500 Ω |
Warranty & Shipping
We provide a 12-month warranty. Ships worldwide via FedEx, UPS, or DHL.
Frequently Asked Questions
- What output signals does this module support?
It supports 0-10V DC, ±10V DC, 0-5V DC, 0-20mA, and 4-20mA signals. - How many modules can I connect to my MicroLogix 1100?
You can connect up to 4 modules to a MicroLogix 1100 controller. - What is the resolution of the analog outputs?
The module has 12-bit resolution for precise control. - Can I use this module for PID control?
Yes, it can be assigned as the output for PID controllers. - What cable should I use for wiring?
Belden 8761 shielded cable is recommended for best performance.
