Allen-Bradley | PowerFlex 525 4.0KW AC Drive 25B-D010N114

Description

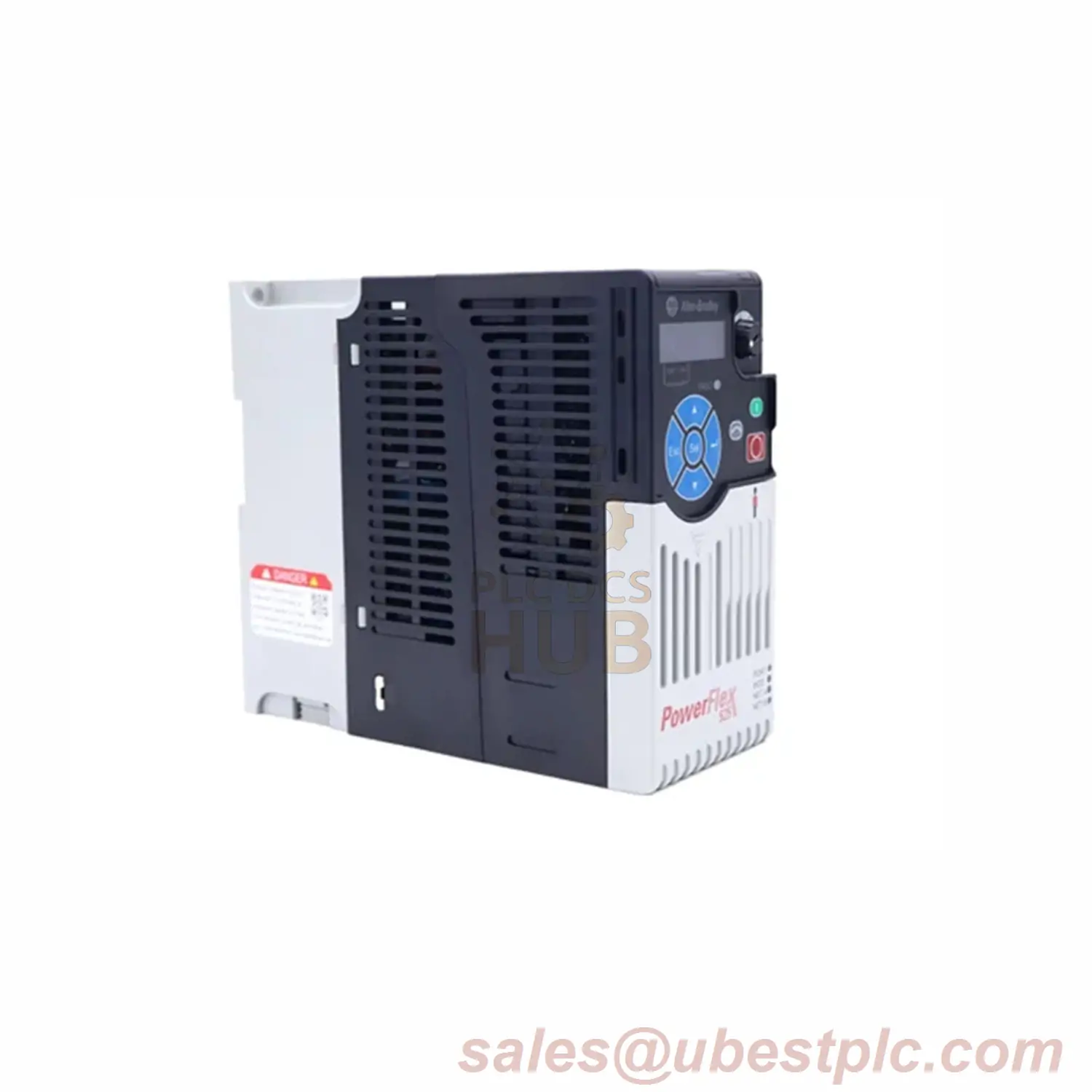

Allen-Bradley 25B-D010N114 PowerFlex 525 Drive – 4.0 kW (5.0 HP) VFD

Product Overview

The Allen-Bradley 25B-D010N114 is a PowerFlex 525 variable frequency drive (VFD). It controls motor speed and protects motors. Works with 380-480V AC, 3-phase power. Outputs 0-460V, 10.5A, 4.0 kW (5.0 HP). Perfect for factories and machines.

Key Features

• 4.0 kW (5.0 HP) motor control
• 380-480V AC input, 3-phase
• 0-460V output, 10.5A current
• 7 digital inputs, 2 relay outputs
• Built-in RS485 & Ethernet
• Safe-Torque Off (STO) safety
• IP20 / NEMA Open enclosure

Technical Specifications

• Model: 25B-D010N114 (PowerFlex 525)
• Input: 380-480V AC, 3-phase, 47-63 Hz
• Output: 0-460V, 10.5A, 4.0 kW
• Frequency Range: 0-500 Hz (adjustable)
• Control Methods: V/Hz, Sensorless Vector, PM Motor
• Frame Size: B
• I/O: 7 DI, 2 DO, 2 AI, 1 AO
• Safety: STO (Safe Torque Off)
• Mounting: Panel mount

FAQs

1. Can this drive run a 5 HP motor?
   Yes, the 25B-D010N114 supports up to 5 HP (4.0 kW).
2. Does it work with single-phase power?
   No, it needs 3-phase 380-480V AC input.
3. Can I connect it to a PLC?
   Yes, it has RS485 & Ethernet for easy PLC connection.
4. Is safety built-in?
   Yes, Safe-Torque Off (STO) stops power to the motor safely.
5. How do I program it?
   Use the PowerFlex 520/525 manual for setup.

Shipping & Warranty

• Fast shipping: FedEx, UPS, DHL
• 12-month warranty – easy returns

Need help? Download the full manual here.
