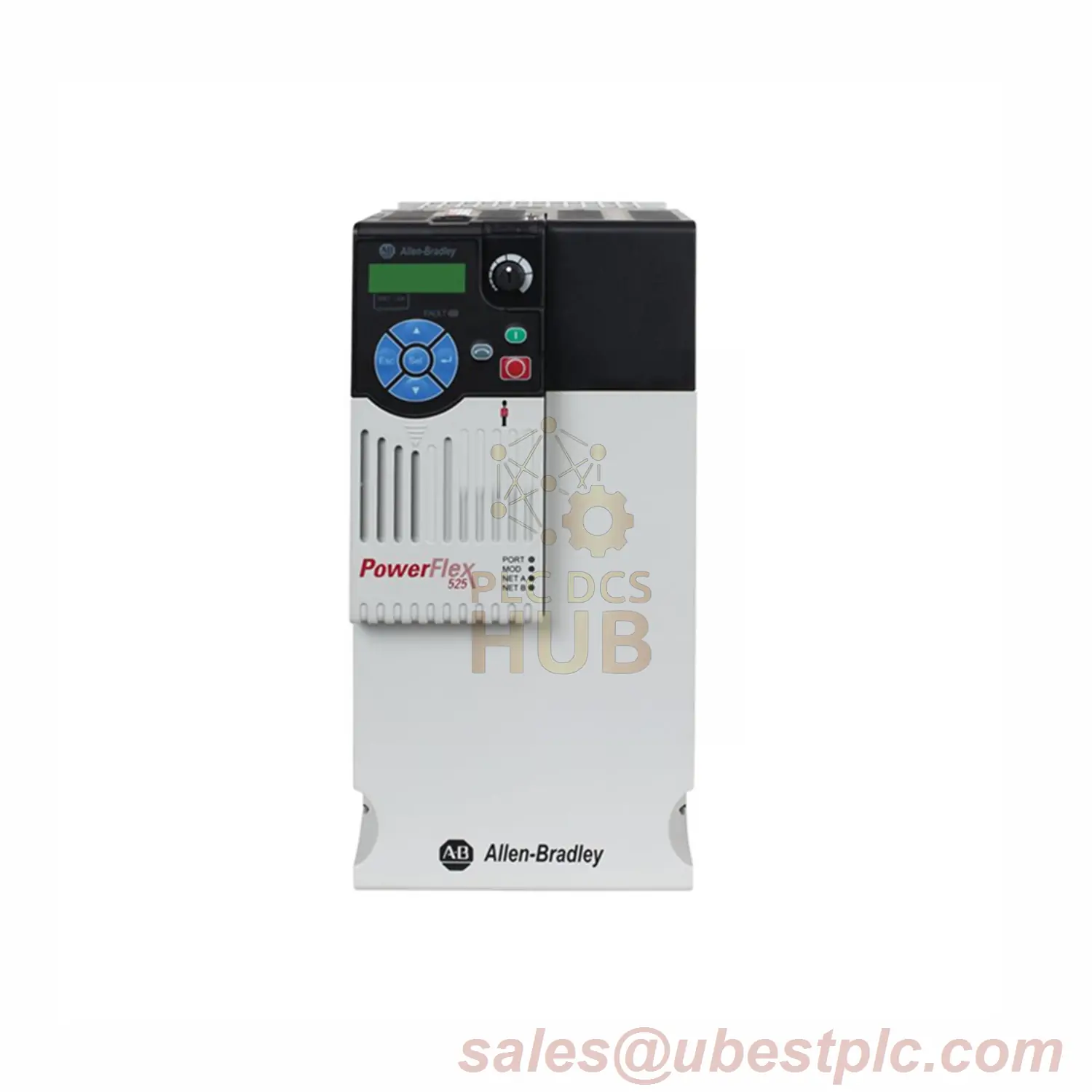

Allen-Bradley PowerFlex 525 Drive – 25B-E4P2N104 (600V, 4.2A, 3HP)
Description
The Allen-Bradley 25B-E4P2N104 is a PowerFlex 525 series adjustable frequency drive designed for industrial motor control. It supports 3-phase 600V AC input and delivers 0-575V AC output, making it ideal for high-voltage applications. With 3HP power (both normal and heavy-duty), this drive offers flexible motor control, including V/Hz, sensorless vector, and closed-loop velocity control. The Frame A, IP20-rated enclosure ensures compact and efficient performance.
Technical Data
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 25B-E4P2N104 |
| Series | PowerFlex 525 |
| Input Voltage | 525-600V AC, 3-phase |
| Output Voltage | 0-575V AC |
| Current Rating | 4.2A |
| Power Rating | 3HP (2.2kW) |
| Enclosure | IP20, NEMA Open Type |
| Frame Size | Frame A |
| EMC Filter | No Filter |
| Operating Temp | -10°C to 50°C (14°F to 122°F) |
Model Suffix Breakdown
- 25B – PowerFlex 525 Series
- E4P2 – 4.2A Output Current
- N104 – 600V AC, No EMC Filter, Standard Control Module
Installation & Compatibility
This drive supports DIN rail or panel mounting for easy setup. It is compatible with 3-phase induction motors and works with Rockwell’s PowerFlex 500 series control modules. The removable MOV allows use in ungrounded systems.
Package Includes
- 1x Allen-Bradley 25B-E4P2N104 Drive
- Installation Manual
- Standard Control Module
Warranty & Shipping
12-month warranty included. Ships via FedEx, UPS, or DHL for fast delivery.
Compare With Similar Models
- 25B-E022N104 – Lower current (2.2A) variant
- 25B-E0P9N104 – 0.9A output, compact design
