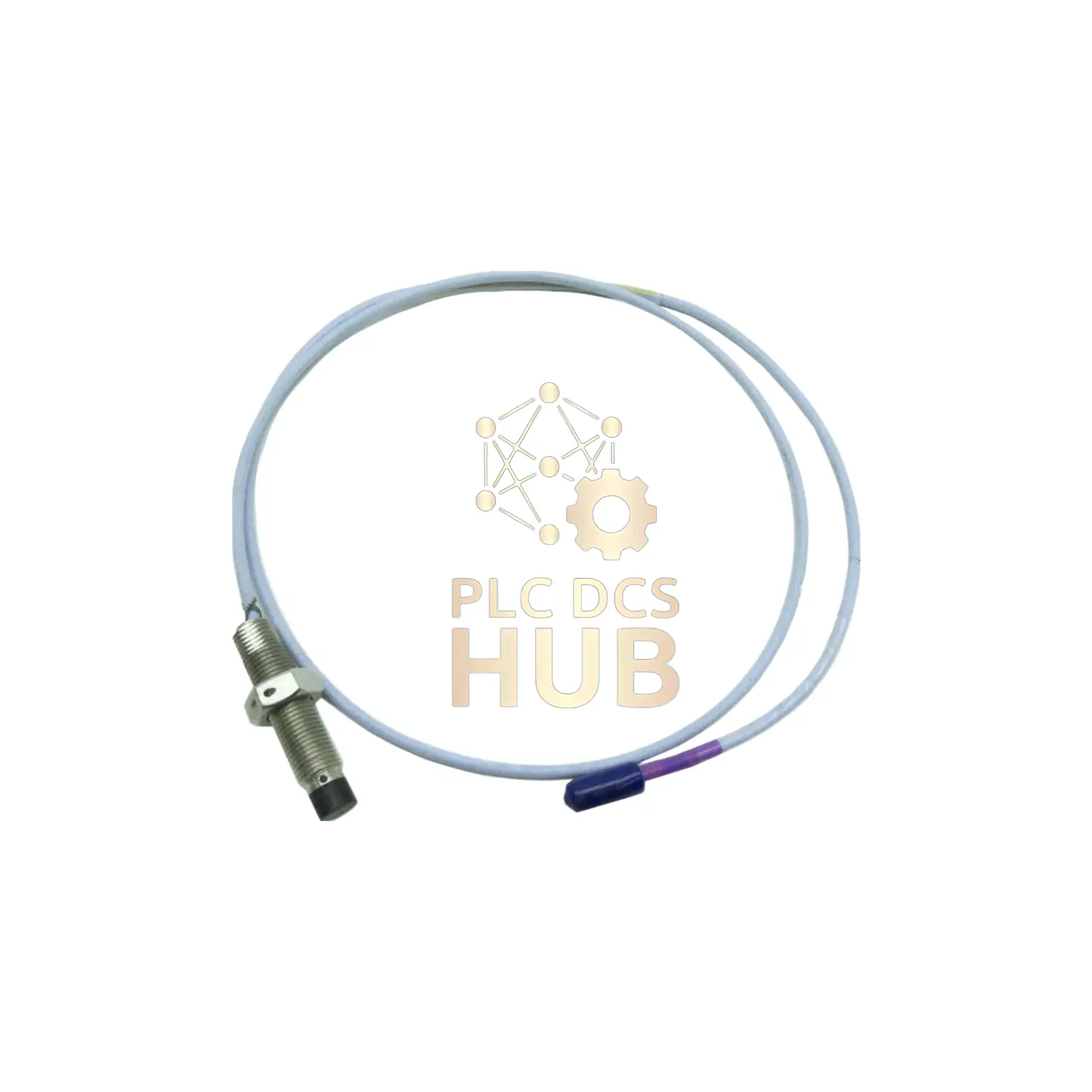

Bently Nevada 3300 XL Proximity Sensor – FluidLoc Cable (P/N: 330708-00-10-10-11-00)
Product Summary
New USA-made industrial probe with protective FluidLoc cable. 5/8-18 UNF thread. Includes 12-month warranty. Ships worldwide via FedEx/UPS/DHL.
Full Part Number Details
Base Model: 330708 (5/8-18 UNF no armor)
Configuration Options:
- – Unthreaded section: 00 (0 inches)
- – Case length: 10 (1.0 inch)
- – Cable: 10 (1.0 meter)
- – Connection: 11 (ClickLoc with FluidLoc)
- – Approvals: 00 (Standard)
Technical Specifications
- Electrical:
Cable resistance: 5.9Ω ±0.5
Output signal: -1 to -13V DC
Cable type: 75Ω triaxial FEP - Physical:
Thread type: 5/8-18 UNF
Max thread depth: 0.938 inch
Min bend radius: 1.0 inch (25.4 mm)
Shipping weight: 0.17 kg - Environmental:
Working temp: -51°C to +177°C
Seal material: Viton O-ring
Low temp warning: Avoid below -34°C
Mounting Information
Recommended torque: 15.2 N•m
Max torque: 45.2 N•m
Finger-tight for connectors
Max wiring distance: 1000 feet
What’s Included
1 x Proximity probe
Connector protector
Warranty information
Support & Delivery
12-month manufacturer warranty
Ships same day from USA
Global express shipping options
Frequently Asked Questions
Q: What is FluidLoc cable?
A: Special coating protects against oils and chemicals
Q: Thread adapter options?
A: Fits M14x1.5 (21mm max) and M16x1.5 (24mm max)
Q: Chemical resistance level?
A: Withstands most industrial fluids and solvents
Q: Vibration measurement range?
A: 0.25mm to 1.75mm target distance
Q: Pressure testing available?
A: Custom testing service upon request
Q: Replacement cable available?
A: Yes, matching triaxial FEP cables
