Allen-Bradley Rockwell Automation 1756-IRT8I Analog Input Card

Description

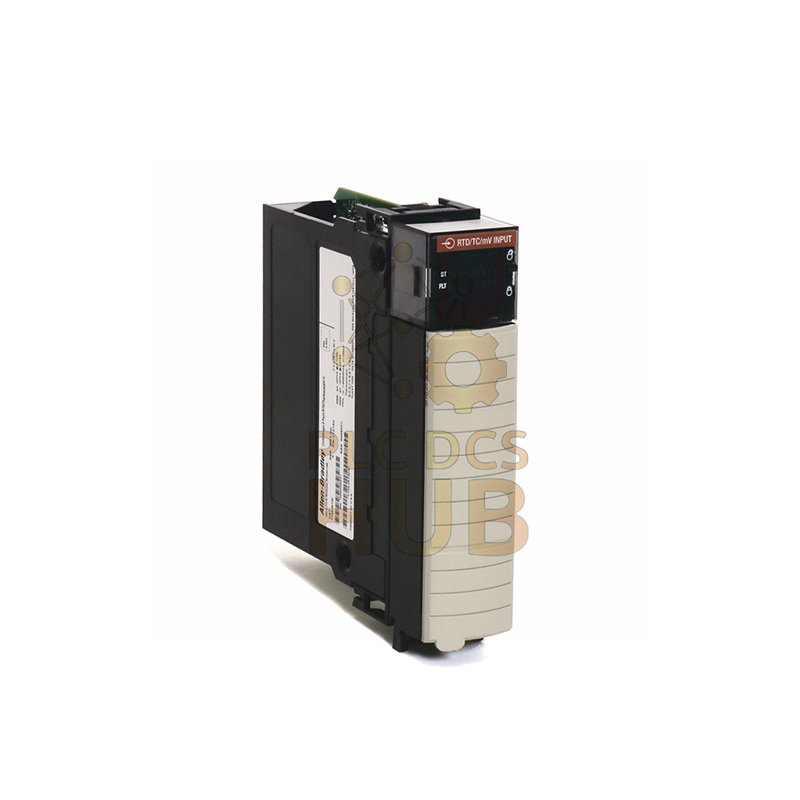

Allen-Bradley 1756-IRT8I: 8-Channel Isolated Temperature Input Module

The Allen-Bradley 1756-IRT8I is a high-accuracy temperature input module for ControlLogix systems. It handles RTD, thermocouple, and millivolt signals with excellent isolation and precision.

Complete Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Full Model: 1756-IRT8I
• Module Type: 8-channel Isolated Temperature Input
• Input Types: RTD, Thermocouple, Millivolt
• Resolution: 24-bit (up to 0.01 µV/count)
• RTD Types: PT100, PT200, PT500, PT1000, NI120, CU10
• Thermocouple Types: J, K, T, E, R, S, B, N, C
• Input Range: -100 to +100 mV
• Accuracy: ±0.3°C
• Scan Time: 1ms per channel
• Power Use: 4.6W max, 200mA @ 5V, 150mA @ 24V
• Isolation: 250V between channels
• Terminal Blocks: Requires 1756-TBNH or 1756-TBS6H

Compatibility Information

The 1756-IRT8I works with all ControlLogix systems. It fits standard 1756 chassis slots.

Installation Guide

This module needs a 36-pin terminal block. Choose 1756-TBNH or 1756-TBS6H. Install in chassis, add terminal block, and connect sensors.

Download Product Manual

• Complete wiring diagrams
• Configuration examples
• Troubleshooting guide
• Get full documentation: 1756 ControlLogix I/O Manual

Professional FAQ

• What sensor types does it support? – RTD, thermocouple, and millivolt
• What is the measurement accuracy? – ±0.3°C for temperature
• Does it need external signal conditioning? – No, all processing is internal
• Can I mix different sensor types? – Yes, each channel is independent
• What is the operating temperature? – 0 to 60°C (32 to 140°F)

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. Full 12-month warranty included.

Package Includes

• One 1756-IRT8I module
• Installation guide
• (Terminal block sold separately)
