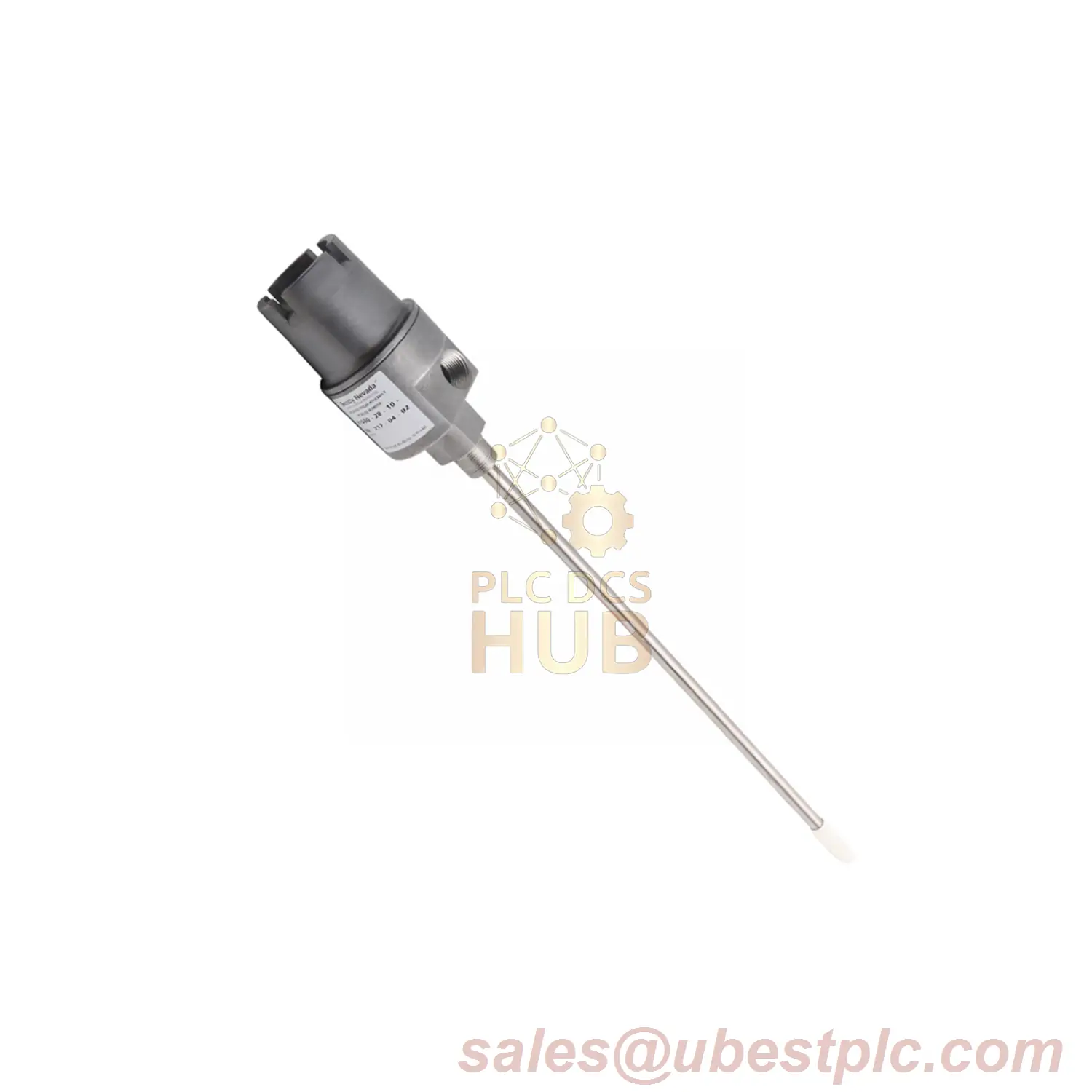

Bently Nevada 21000-16-10-15-085-03-02 Hazardous Area Monitoring Solution
Featuring 8.5″ (216mm) penetration depth and CSA/ATEX certifications, this assembly is engineered for critical clearance monitoring in explosive atmospheres. Ideal for API 670-compliant machinery protection systems.
Core Technical Data
- Manufacturer: Bently Nevada
- Item Code: 21000-16-10-15-085-03-02
- Linear Range: 0.2-2.3 mm (8-90 mils)
- Temperature Drift: <0.5% FS from -50°C to +125°C
- Output Impedance: 450Ω ±10% @ 1kHz
- Vibration Limit: 10g peak (20-2000Hz)
Suffix Code Analysis
- 16 – 8mm 3300XL Probe (IP68 Connector)
- 10 – 1.0m Armored Cable
- 15 – 1.5″ (38mm) Standoff
- 085 – 8.5″ Probe Projection
- 03 – NPT Fittings Kit
- 02 – 3/4-14 NPT Thread
Key Performance Metrics
- Resolution: 0.1μm (4μin)
- Hysteresis: <0.25% of full scale
- Dielectric Strength: 1500V RMS (60s)
Industrial Deployment Scenarios
- Aerospace Test Rigs: Thrust bearing monitoring in fuel-rich environments
- Cement Kilns: Gear mesh analysis in high-dust Class II areas
- Wastewater Pumps: Shaft deflection measurement in corrosive atmospheres
Certification Details
- CSA: Class I Div1 Gr C/D, Class II Div1 Gr E/F/G
- IECEx: Ex db IIC T4 Gb (-50°C ≤ Ta ≤ +80°C)
- Marine: ABS Type Approval pending
Package Components
- 304SS Probe Sleeve Assembly
- 3/4″ NPT to 1/2″ NPT Reducer
- Silicone-Free Thread Sealant
- 12-Month Performance Warranty
Expert Support: Email sales@ubestplc.com for hazardous area installation guidelines or custom configurations.
