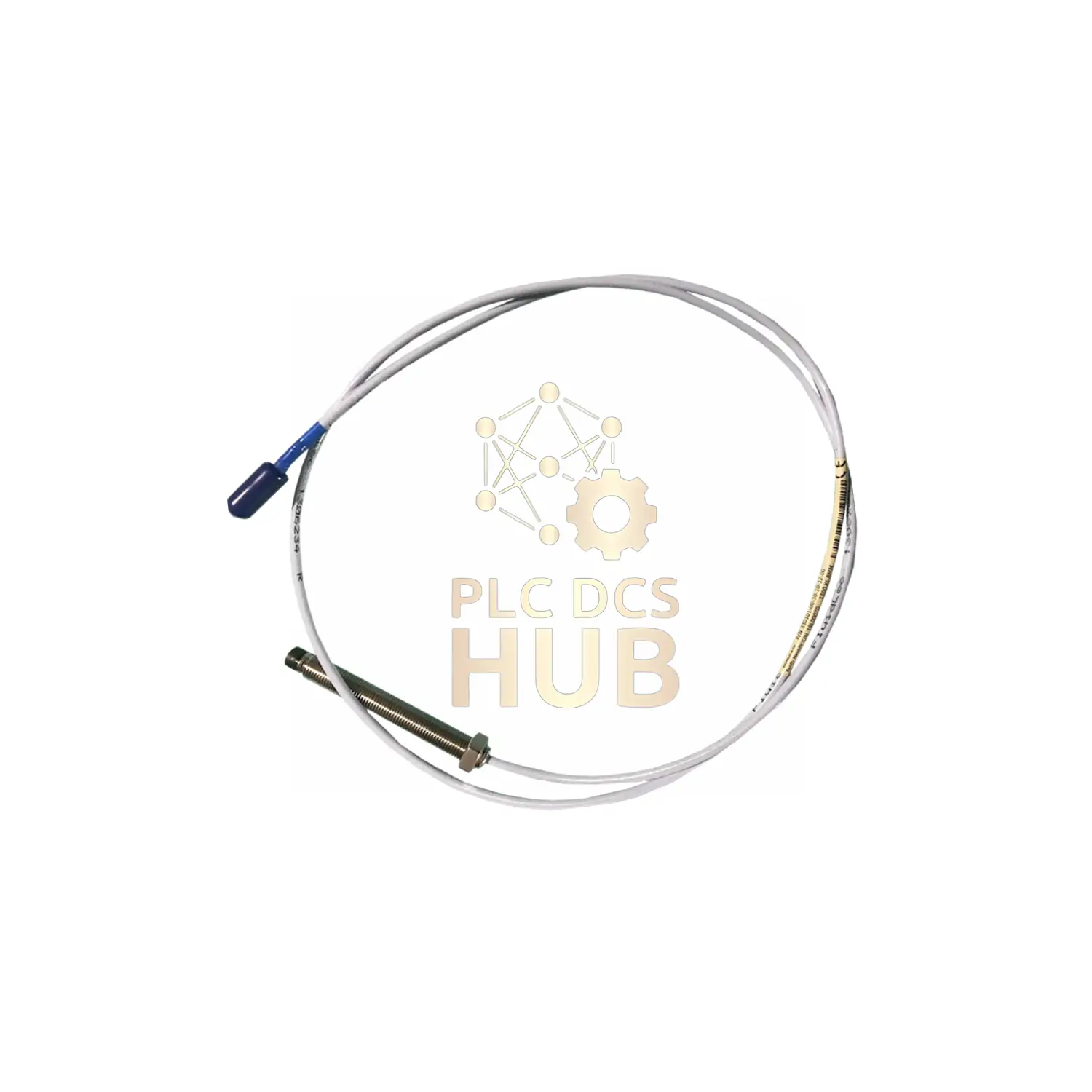

Bently Nevada 11 mm Proximity Probes 330702-00-24-50-11-05

Description

330702-00-24-50-11-05 Proximity Probe – 5m Industrial Sensor Solution

Product Configuration

Complete model: 330702-00-24-50-11-05

Detailed configuration:

[330702] → Base model (1/2-20 UNF)
├─[00] → 0" unthreaded
├─[24] → 2.4" case
├─[50] → 5m cable
├─[11] → ClickLoc+protector
└─[05] → Multiple approvals

Technical Specifications

• Cable resistance: 7.2Ω ±0.8Ω
• Weight: 0.17 kg (lightweight)
• Cable type: 75Ω triaxial FEP
• Temperature range: -51°C to +177°C
• Min bend radius: 25.4 mm
• Seal material: Viton O-ring

Shipping & Support

• Worldwide express: FedEx/UPS/DHL
• 12-month warranty
• Real-time shipment tracking

Professional Questions

• Q: Why special for 5m systems?
  A: Optimized calibration for 5m Proximitor sensors.
• Q: FluidLoc vs standard cable?
  A: Extra protection against liquids and chemicals.
• Q: Can I use in food processing?
  A: Yes, stainless steel meets hygiene standards.
• Q: Installation temperature limits?
  A: Avoid below -34°C to protect seals.
• Q: Pressure testing option?
  A: Available through custom design department.
