Description
Product Snapshot
- Brand: Bently Nevada

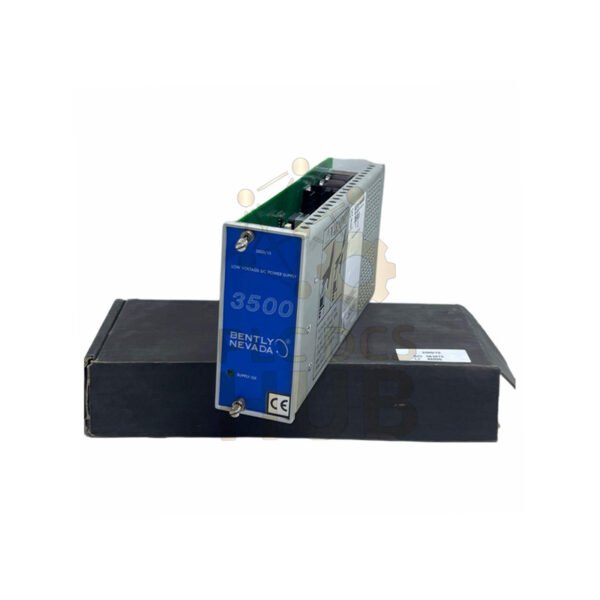

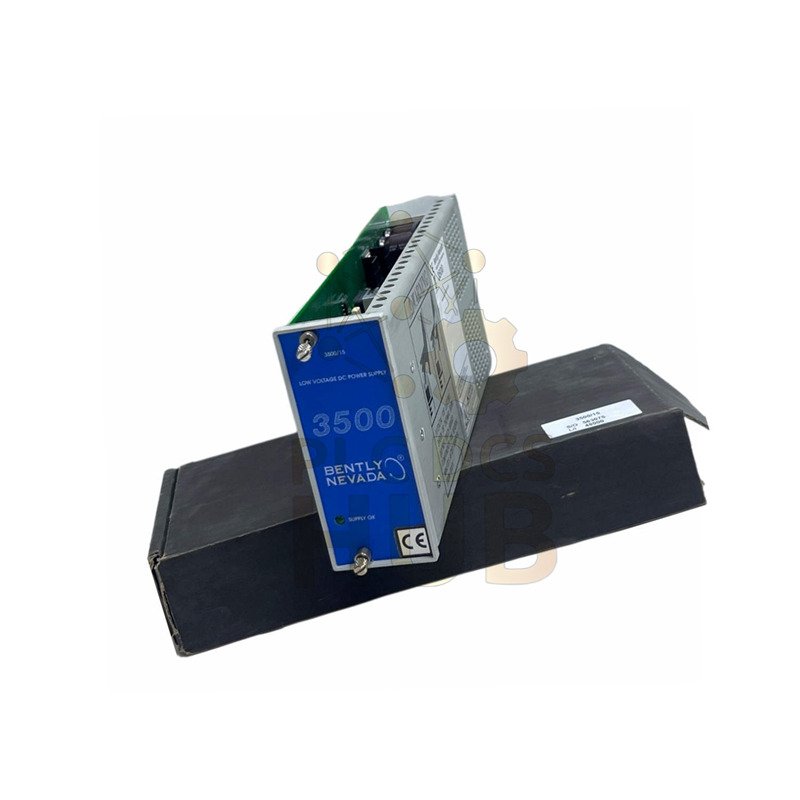

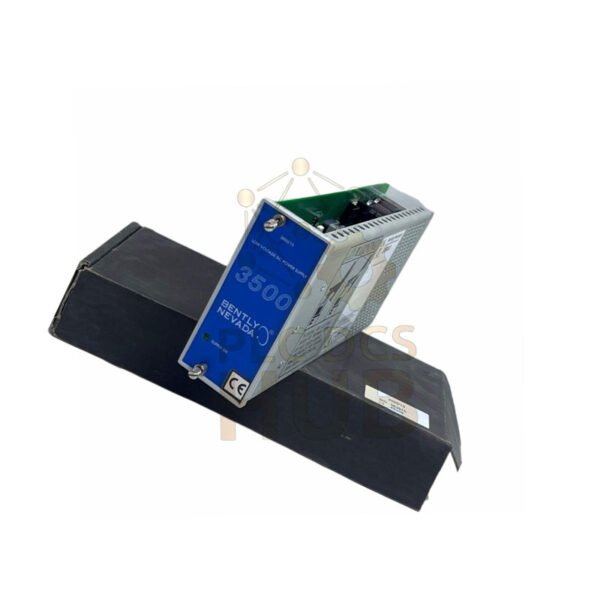

- Model: 133292-01 Low Voltage DC Power Supply
- Designed for the trusted 3500 monitoring platform.
- Provides clean DC power for critical modules.
- Half-height design saves rack space.
- Supports single or dual power layouts.
Why Choose This Module
- Ensures stable system uptime.
- Ideal for continuous industrial duty.
- Easy replacement without shutdown.
- Redundant setup improves safety.
- Proven reliability in harsh sites.
Electrical Capabilities
- Input Range: 85 to 264 Vac.
- Output Range: 20 to 30 Vdc.
- Max Output: 11.0 A continuous.
- Efficiency: Up to 85%.
- Low ripple improves module life.
- Fast response to load changes.
Protection & Stability
- Built-in overcurrent protection.
- Short-circuit safety design.
- Automatic voltage regulation.
- Overvoltage and undervoltage control.
- Status LEDs show power health.
Environmental Endurance
- Operating Temp: -30°C to +65°C.
- Storage Temp: -40°C to +85°C.
- Handles up to 95% humidity.
- Designed for non-condensing areas.
- Stable in dusty control rooms.
Mechanical Details
- Dimensions: 120.7 × 50.8 × 251.5 mm.
- Weight: Approx. 1.39 kg.
- Solid housing for rack use.
- Secure slot locking design.
Installation Concept
- Mounts on the left side of the rack.
- Uses two half-height positions.
- Lower slot acts as main supply.
- Upper slot works as backup.
- Hot-swap ready during service.
Typical Use Scenarios
- Power source for 3500 racks.
- Critical asset monitoring.
- Power plants and refineries.
- Oil, gas, and petrochemical sites.
Package, Warranty & Delivery
- 1 × Bently Nevada 133292-01 module.
- Factory protective packaging.
- Warranty: 12 months.
- Global shipping via FedEx, UPS, DHL.
FAQ
- Can this unit run alone in a rack?
- Yes. One module supports normal operation.
- What is the benefit of dual supplies?
- It prevents downtime during failure or service.
- Does efficiency affect heat?
- Higher efficiency lowers internal heat.
- Is this suitable for unstable power grids?
- Yes. Wide input range improves tolerance.
- How do I select the correct power module?
- Match rack type and voltage needs.
