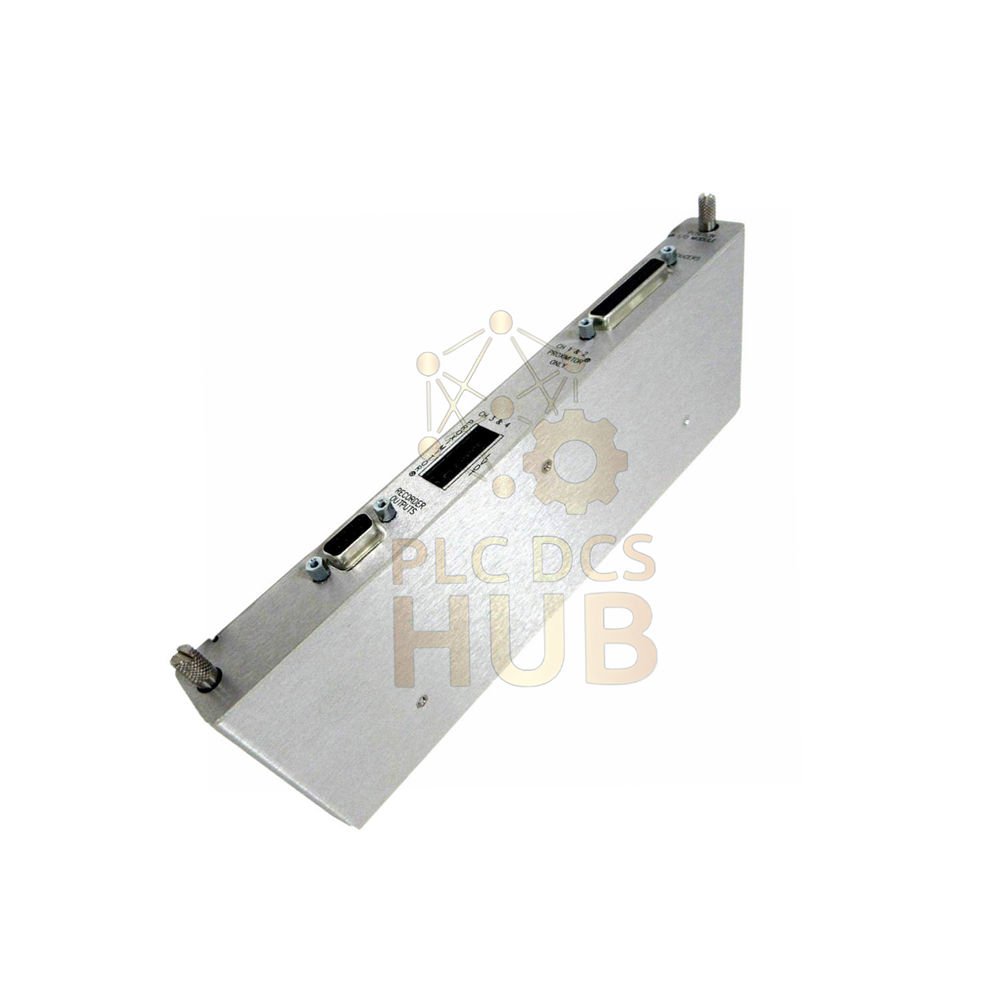

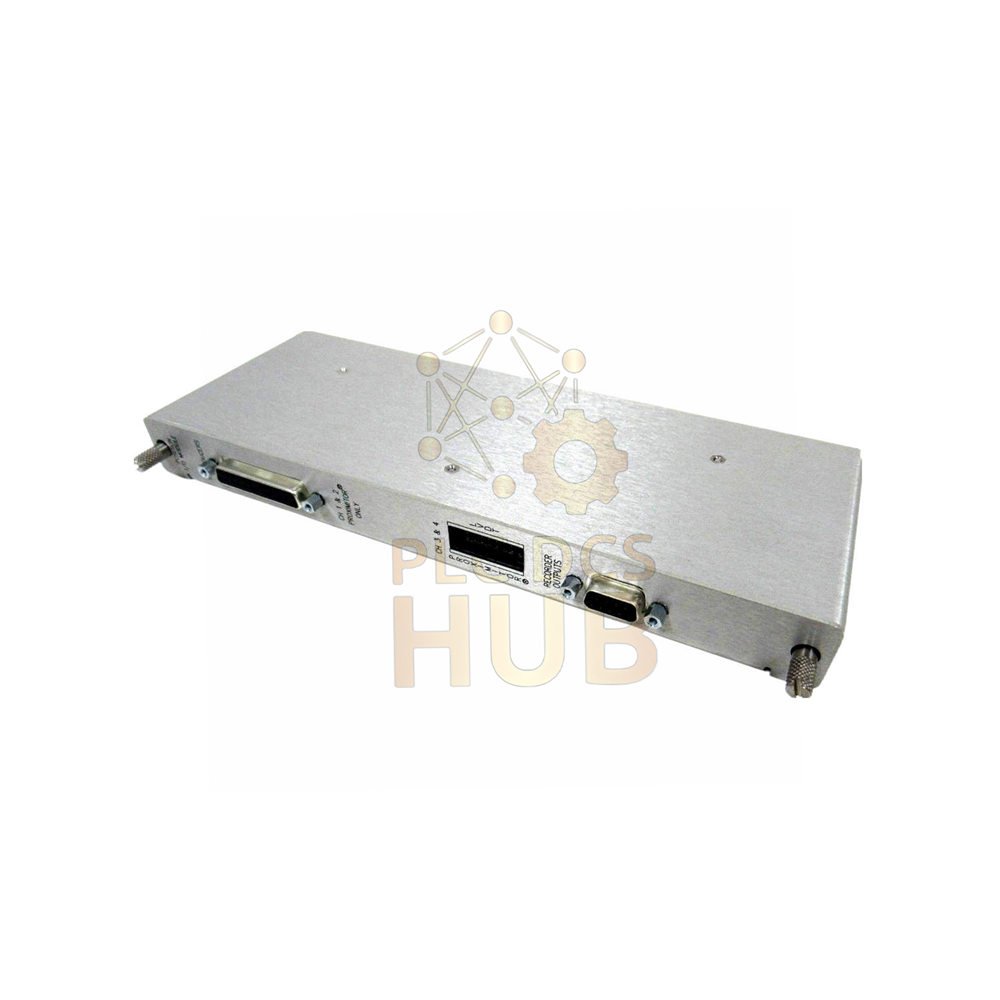

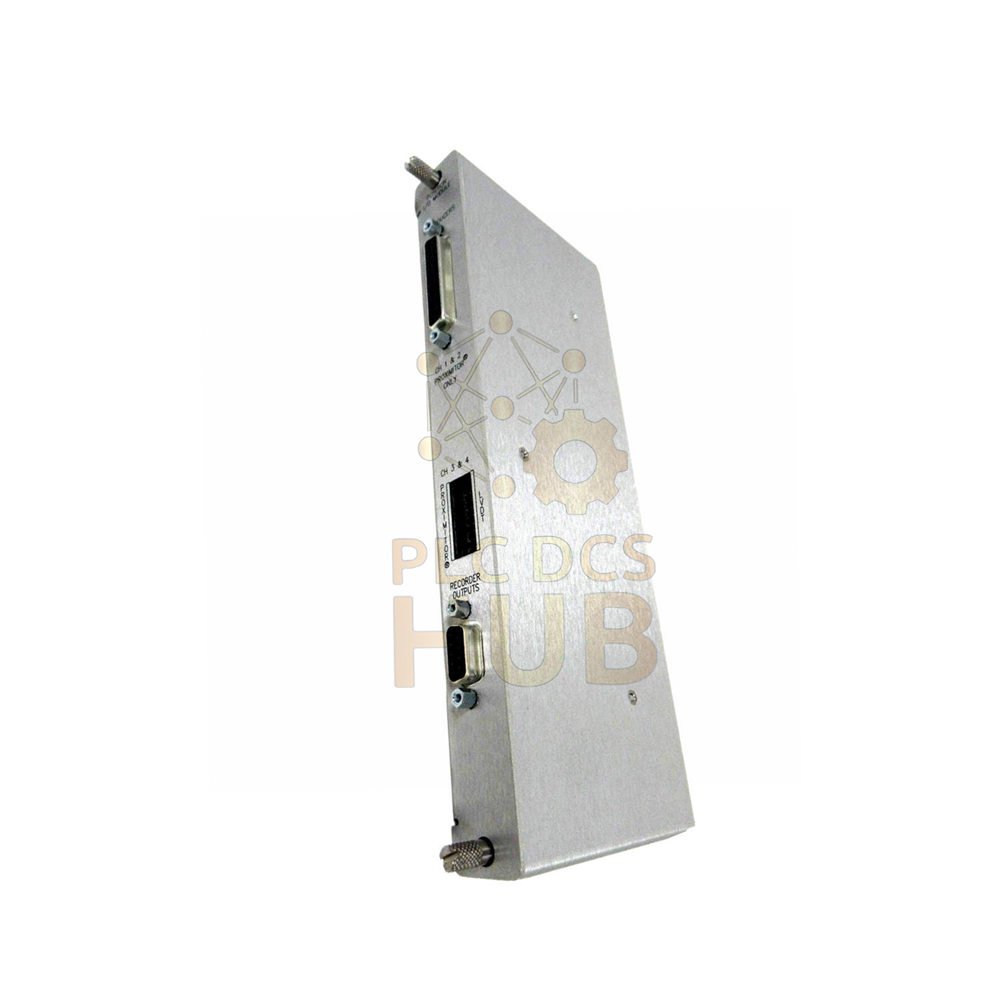

Bently Nevada 135145-01 Position I/O Module for 3500/45 Series High Precision Monitoring

Description

Product Overview

The 135145-01 Position I/O Module is made for the 3500/45 system.
It reads sensor signals and tracks machine position. It is stable, fast, and easy to use.

Configuration Breakdown (Tree Structure)

• 135145-01
  • Series
    • 3500 System
  • Module Type
    • Position I/O Module
  • Input Options
    • Proximity Probe
    • RPT Sensor
    • DC LVDT
    • AC LVDT
  • Channel Setup
    • 1 Channel
    • 2 Channels
    • 3 Channels
    • 4 Channels
  • Output Type
    • 4–20 mA
    • LED Status

Key Features & Benefits

• Supports up to 4 inputs
• Fast response ≤ 100 ms
• High accuracy ±0.33%
• Strong anti-noise design
• Stable signal output
• Easy installation
• Multi-sensor support
• Clear LED indicators
• Long service life

Extended Technical Data

• Input Voltage: ±24 Vdc max
• Signal Drift: < 0.1% / year
• Load Range: 0–600 Ω
• Response Time: < 80 ms
• Isolation: 500 Vrms
• EMC: IEC 61000 standard
• MTBF: > 100,000 hours
• Cooling: Passive
• Altitude: up to 2000 m

Operating Conditions

• Temperature: -30°C to +65°C
• Storage: -40°C to +85°C
• Humidity: 95% non-condensing
• Environment: clean indoor
• Vibration: up to 2g

Warranty & Shipping

• 12 months warranty
• Shipping: FedEx / UPS / DHL
• Fast global delivery
• Secure packaging

FAQ (Expert Guide)

• What sensors can be used?Supports proximity probes, RPT, DC LVDT, and AC LVDT.
• How to choose channel number?Select based on number of sensors in your system.
• Is installation complex?No. It fits rack system and wiring is simple.
• Where is it best used?Good for turbines, motors, and rotating machines.
• How to keep stable performance?Install in clean space. Avoid moisture and shock.
