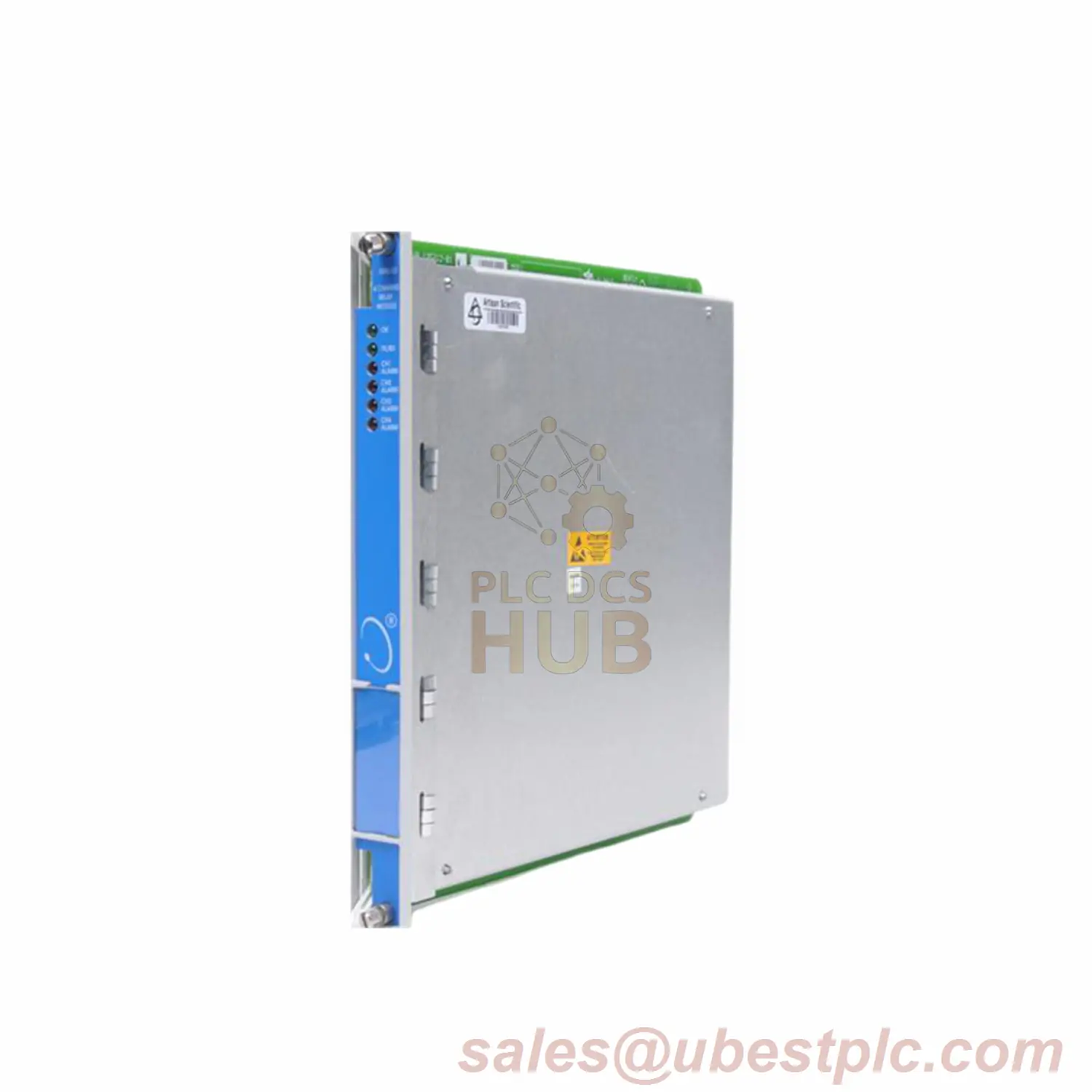

Bently Nevada 140072-04 3500/45 4-channel Position Monitor Unit

Description

Bently Nevada 3500/45 Position Monitor

140072-04 3500/45: 4-channel industrial monitor for precision position measurement using proximity probes. Designed for critical machinery protection in power generation and heavy industries.

Technical Specifications

• Brand/Model: Bently Nevada 3500/45 (P/N: 140072-04)
• Suffix Code: -04 = 4-channel configuration
• Input Range: ±10mm (±0.4″) per channel
• Frequency Response: DC to 1 kHz (±3dB)
• Relay Outputs: 8 total SPDT (2/channel) | 5A @ 250VAC
• Analog Outputs: 4-20mA linear (±0.25% accuracy)

System Integration

• Power Input: 85-265VAC (47-63Hz)
• Rack Compatibility: 3500 Series frames
• Mounting: 19″ rack (483x133x305mm)
• Environmental Rating: IP52 (dust/water protected)

Advanced Features

• Programmable alarm setpoints per channel
• Auto-calibration for probe degradation compensation
• Modbus RTU/TCP communication protocol support

Industrial Application

Monitoring hydroelectric turbine guide bearings at Niagara Power Station, achieving ±0.1mm resolution in 85% humidity environments with 0.2% FS/year drift.

Certifications

• UL 61010-1 safety certified
• CE Marked (EMC Directive 2014/30/EU)
• ATEX Zone 2 compliant (optional)

Contact for Configuration:
sales@ubestplc.com
