Description
Product Overview

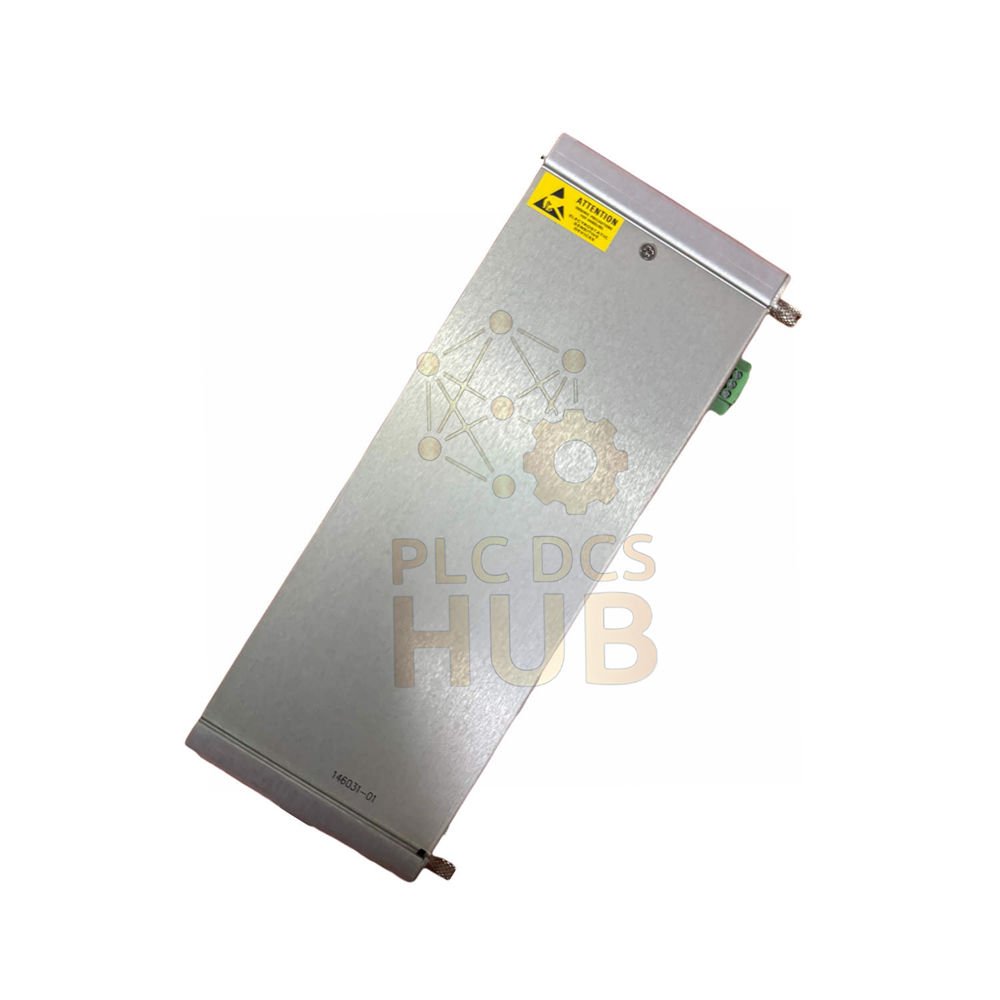

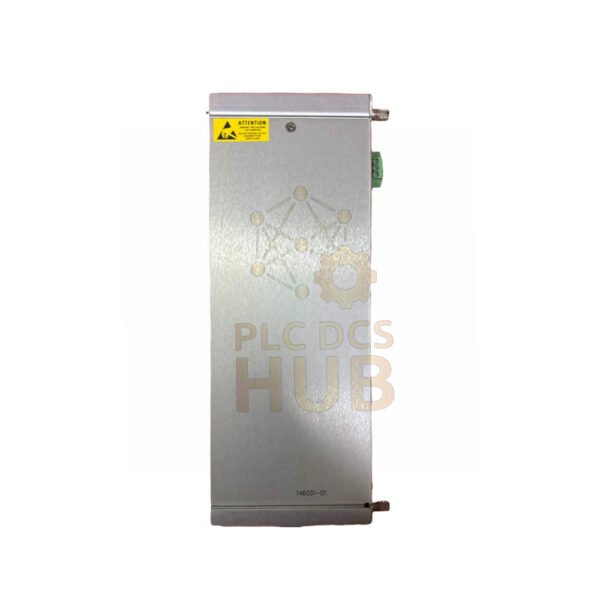

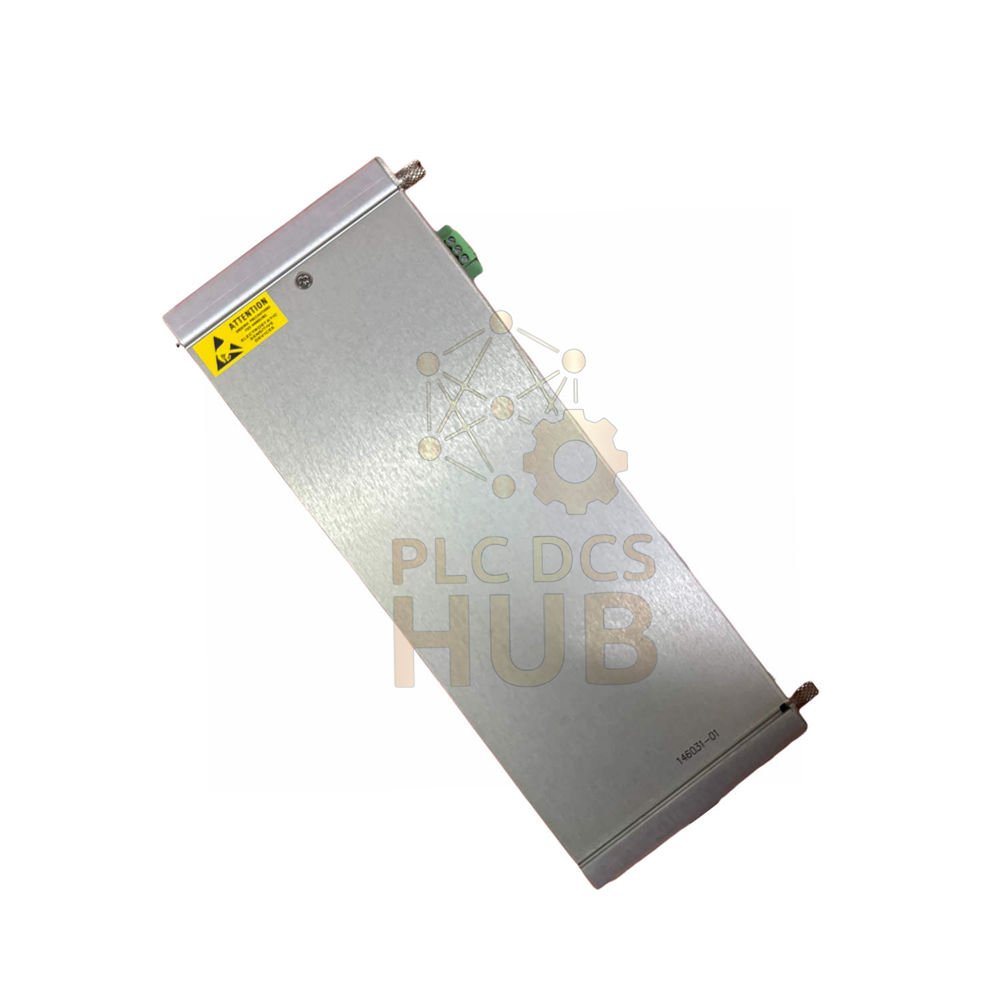

The 146031-01 Transient Data Interface I/O Module is used with the 3500/22 system.
It links the system with external devices. It helps data transfer fast and stable.
Configuration Breakdown (Tree Style)
- 146031-01
- Series
- 3500 System
- Module Role
- Transient Data Interface
- Communication
- Modbus RTU
- RS485
- Device Support
- Up to 32 Slave Devices
- Up to 256 Registers
- Up to 64 I/O Points
- Speed Options
- 9600 / 19200 / 38400
- 57600 / 115200 / 230400
- Series
Key Advantages
- Fast and stable data link
- Long distance communication up to 1200 m
- High compatibility with many devices
- Flexible baud rate selection
- Strong anti-interference design
- Low power usage
- Easy system integration
- Reliable for industrial use
Extended Technical Details
- Input Voltage Range: 18–30 VDC
- Current Draw: < 450 mA
- Isolation Voltage: 500 VDC
- Signal Delay: < 10 ms
- Data Refresh Rate: < 100 ms
- EMC Level: IEC 61000-6
- Protection Level: IP67
- MTBF: > 120,000 hours
- Cable Type: Shielded twisted pair
Working Conditions
- Operating Temp: -40°C to 70°C
- Storage Temp: -55°C to 85°C
- Humidity: 5%–95% non-condensing
- Max Altitude: 2000 m
- Environment: clean industrial area
Warranty & Delivery
- 12 months warranty
- Shipping via FedEx / UPS / DHL
- Fast worldwide delivery
- Strong packing protection
FAQ (Buying & Usage Guide)
- How to choose baud rate?Use higher speed for short distance. Lower speed for long distance.
- Can it work with other systems?Yes. It supports standard Modbus RTU devices.
- What cable should I use?Use shielded RS485 cable for best signal quality.
- Is it safe for harsh environments?Yes. It has strong protection and wide temperature range.
- What to check before buying?Check device count, distance, and communication speed needed.
