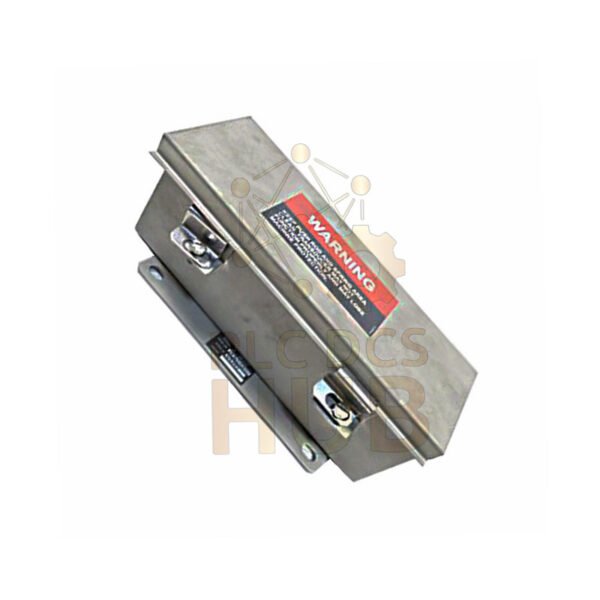

Bently Nevada 24765-03-01 Case Expansion Transducer Assembly

Description

Product Description

• Brand: Bently Nevada
• Model: 24765-03-01
• Series: Case Expansion Transducer Assembly
• This device measures thermal case growth in rotating machinery.
• It supports early fault detection and stable operation.
• The design suits harsh industrial environments.

Core Technical Features

• Measurement Range: 101.6 mm linear displacement
• Accuracy: ±0.01 mm for precise monitoring
• Resolution: 0.001 mm for small movement detection
• Linearity: Maintains stable proportional output.
• Sensitivity: Optimized for low mechanical drift.
• Frequency Response: Suitable for slow thermal expansion.

Electrical and Environmental Performance

• Power Supply: 12–24 VDC input
• Output Signal: 0–10 VDC analog output
• Operating Temperature: -40°C to 85°C
• Protection Level: IP65 dust and water resistance
• EMI Resistance: Designed for industrial noise immunity.

Mechanical Design and Installation

• Mounting Method: Flanged installation for stability.
• Spring Return: Integrated for safe probe recovery.
• Compact Housing: Easy fit in limited spaces.
• Clear alignment simplifies on-site installation.

Commissioning and Maintenance

• Simple calibration reduces setup time.
• Stable structure minimizes recalibration needs.
• Low wear design supports long service life.

System Compatibility

• Compatible with Bently Nevada monitoring systems.
• Supports standard PLC and DCS analog inputs.
• Ideal for turbine and compressor protection systems.

Certifications and Compliance

• CE Mark: Meets European safety standards.
• UL Listing: Approved for industrial use.
• RoHS: Environmentally compliant materials.

Typical Applications and Diagnostic Value

• Steam and gas turbine case expansion monitoring.
• Early warning of abnormal thermal growth.
• Supports predictive maintenance strategies.

Package Contents

• One 24765-03-01 Case Expansion Transducer Assembly.
• Standard factory packaging.
• Quality inspection documentation.

Warranty and Logistics

• Warranty: 12 months from delivery date
• Shipping: FedEx, UPS, DHL available.
• Fast global delivery with secure packaging.

Frequently Asked Questions

• What is the main function of this transducer?
• It measures machine case expansion during operation.
• Is this model suitable for high temperatures?
• Yes, it operates reliably up to 85°C.
• Does spring return improve safety?
• Yes, it protects the probe during shutdown.
• How often should calibration occur?
• Annual checks are common in stable environments.
• How do I choose the right model?
• Match range, signal type, and system compatibility.
