Description
Robust Enclosure for Critical Sensors

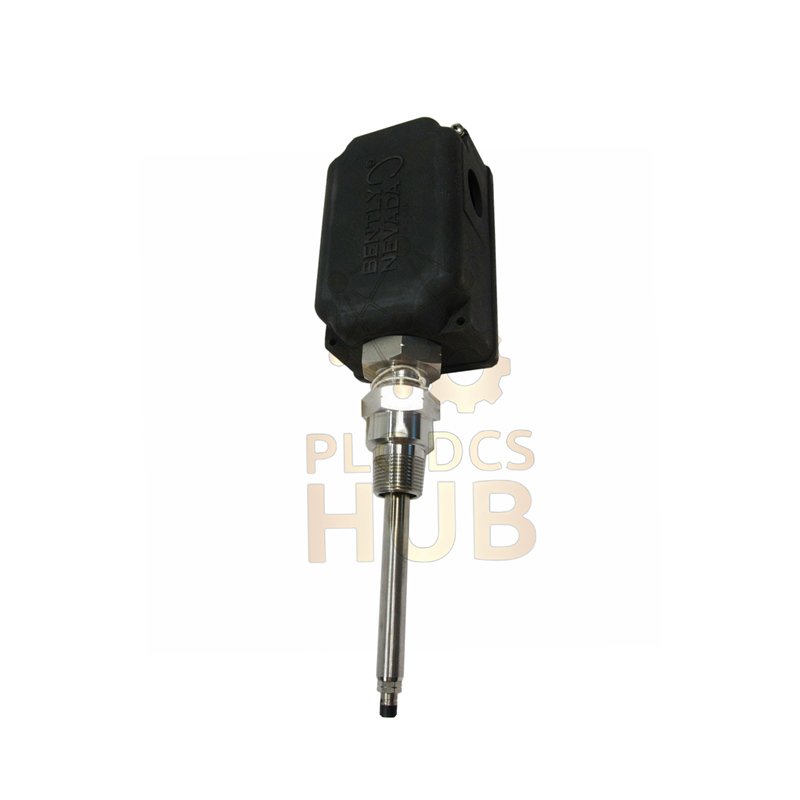

This is the Bently Nevada 31000-28-10-00-146-00-02. It is a heavy-duty 31000 Proximity Probe Housing Assembly. It safely protects your 8mm vibration probes in tough locations. The housing keeps out water, dust, and impacts. This ensures your machine monitoring system stays reliable. Built in the USA for industrial strength.
Your Housing Model Decoded
Every number in 31000-28-10-00-146-00-02 has a specific meaning.
- Product Family: 31000 (Probe Housing Assembly)
- Section A (28): For a 3300 XL 8 mm Probe (Approved)
- Section B (10): Cable Length at Housing is 1.0 Inch
- Section C (00): No Standoff Adapter Included
- Section D (146): Probe Penetration Depth is 14.6 Inches
- Section E (00): No Extra Fittings
- Section F (02): Mounting Thread is 3/4-14 NPT
Technical Data & Build Quality
- Product ID:
- Brand: Bently Nevada
- Model: 31000-28-10-00-146-00-02
- Type: Proximity Probe Housing Assemblies
- Physical Properties:
- Main Material: Conductive Glass-Reinforced PPS
- Sleeve & Chain: 304 Stainless Steel
- Screws: 303 Stainless Steel
- Seals: Neoprene O-Ring
- Weight: 1.2 kg
- Environmental Protection:
- Enclosure Ratings: NEMA 4X & IP66 (Water and Dust Tight)
- Hazardous Area: CENELEC EN50014 Certified
- Temperature Range: -51°C to +105°C
- Strength & Durability:
- Impact Tested: Withstands 7 Joules at room temperature.
- Load Bearing: Supports over 200 lbs (912 N) force.
- Retaining Nut Torque: Use 29.4 N·m for secure fit.
- Important Note:
- This housing seals against weather and hose water.
- It is not designed for high internal or external pressure.
- Pressure seal testing is not standard. Contact for custom tests.
Order & Delivery Details
- What You Get: One complete housing assembly.
- Shipping: We ship quickly via FedEx, UPS, and DHL.
- Your Assurance: All products come with a 12-month warranty.
Expert Questions & Answers
What probe is compatible with this housing?
It is designed for use with a Bently Nevada 3300 XL 8 mm probe (option 28).
What does the “146” penetration option mean?
It means the probe tip can extend 14.6 inches into your machine from the mounting point.
Can this housing be used outdoors?
Yes. Its NEMA 4X and IP66 ratings make it safe for outdoor use in rain and dust.
From Experience: How do I prevent leaks during installation?
Ensure the Neoprene O-ring is clean and seated properly. Tighten the retaining nut to the specified 29.4 N·m torque.
Purchasing Tip: I need a housing for a hazardous area. Is this model suitable?
Yes. The model 31000-28-10-00-146-00-02 has conductive materials and certifications (like EN50014) for such environments.
