Description
Overview

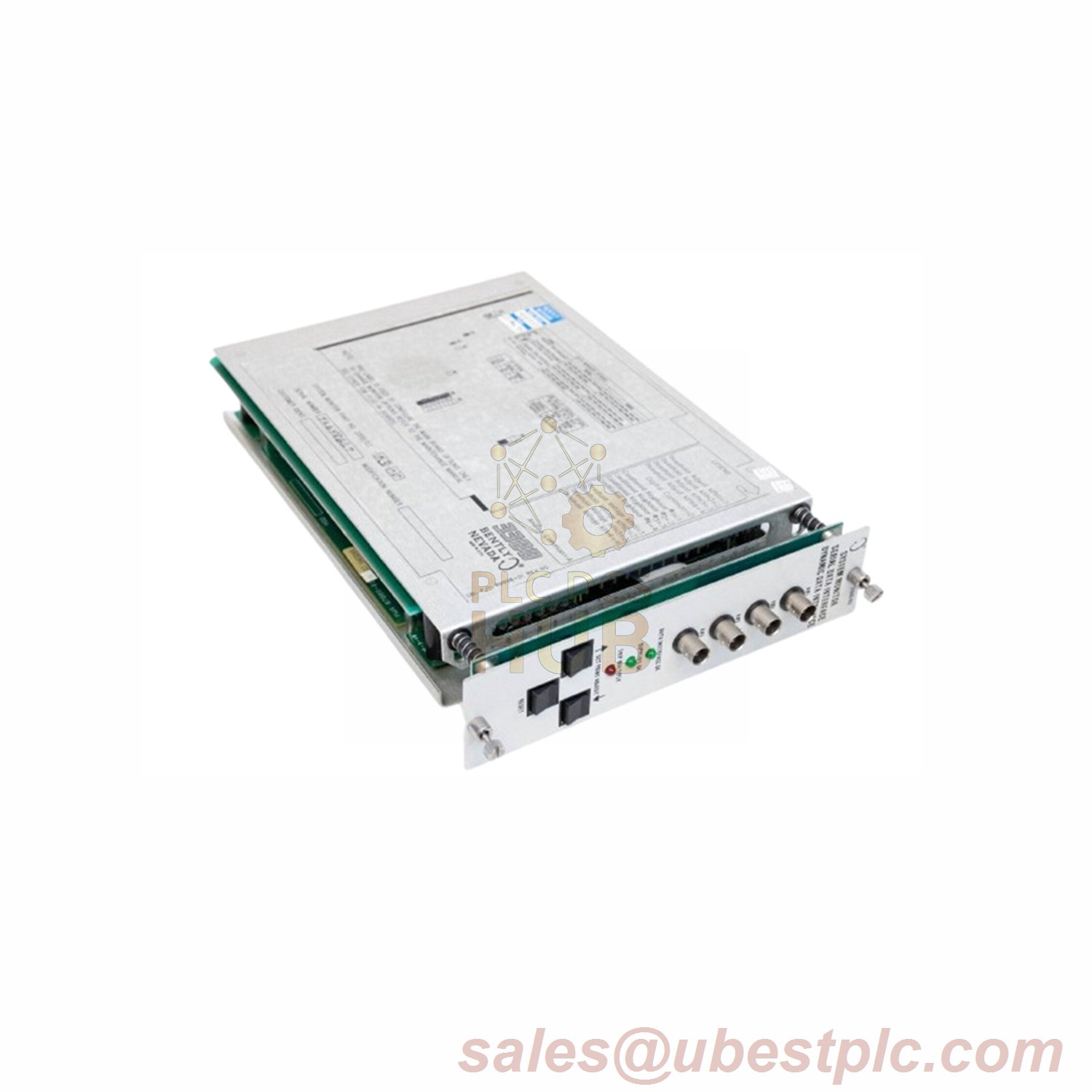

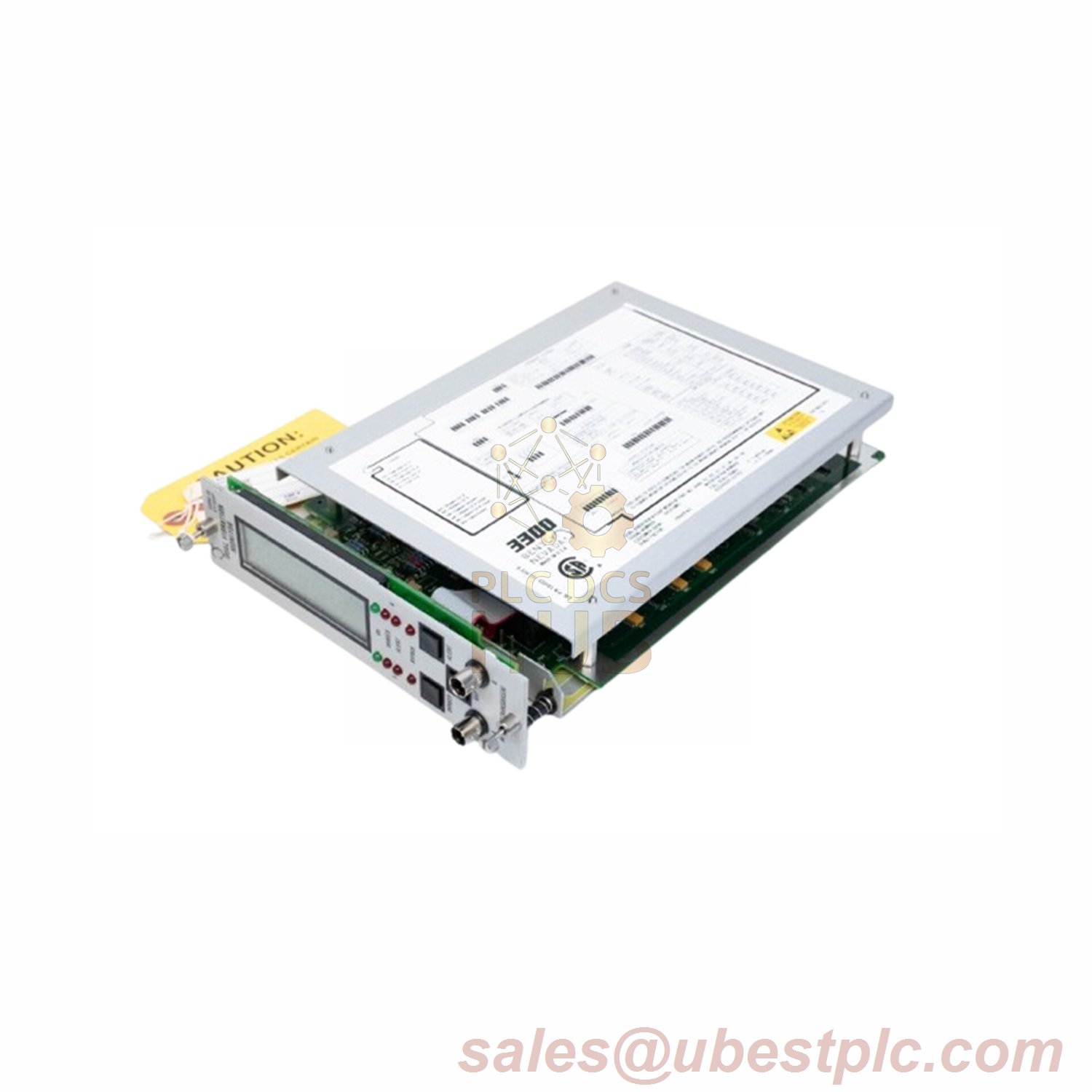

The Bently Nevada 3300/03-01-00 System Monitor is a robust solution designed for comprehensive machinery condition monitoring. It can track vital parameters such as vibration, speed, and temperature, making it essential for predictive maintenance and operational efficiency. This model features adjustable alarm setpoints, Keyphasor power, and optimized termination and distribution functions. Additionally, it includes alarm acknowledgment capabilities to improve monitoring and response times.
Technical Specifications
The 3300/03-03-01 system monitor offers a wide range of power supply and contact closure options to ensure reliable operation. Key specifications are as follows:
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 3300/03-01-00 |
| Input Voltage | 23.65 ± 6.35 Vdc (VRH), 11.22 ± 3.09 Vdc (VRL), 7.5 ± 0.1 Vdc (+7.5V), 5.00 ± 0.05 Vdc (+5V), -7.5 ± 0.1 Vdc (-7.5V) |
| System Power-up Inhibit | Delay: 2.1 ± 1 seconds |
| Contact Closure Rating | < 100 Ω (Active for system reset, inhibit, OK, and trip multiply) |
| Keyphasor Output Voltage | -24V Option: -23.2 V to -24.2 V, short-circuit protected, -18V Option: -17.4 V to -18.3 V, short-circuit protected |
| Operating Temperature | 0°C to +65°C (32°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 0 to 95%, non-condensing |
