Description
Product Overview

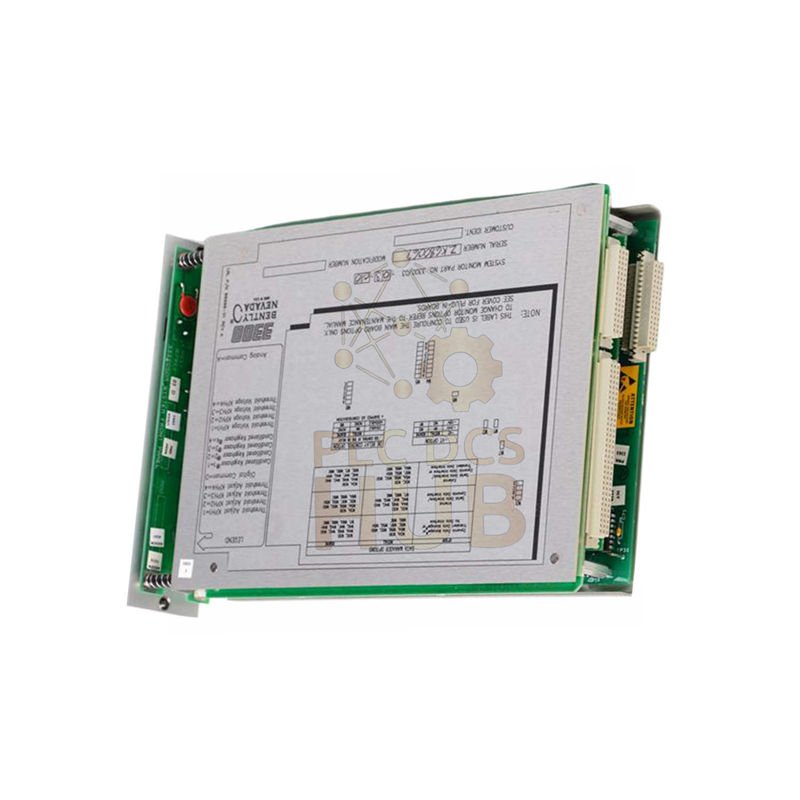

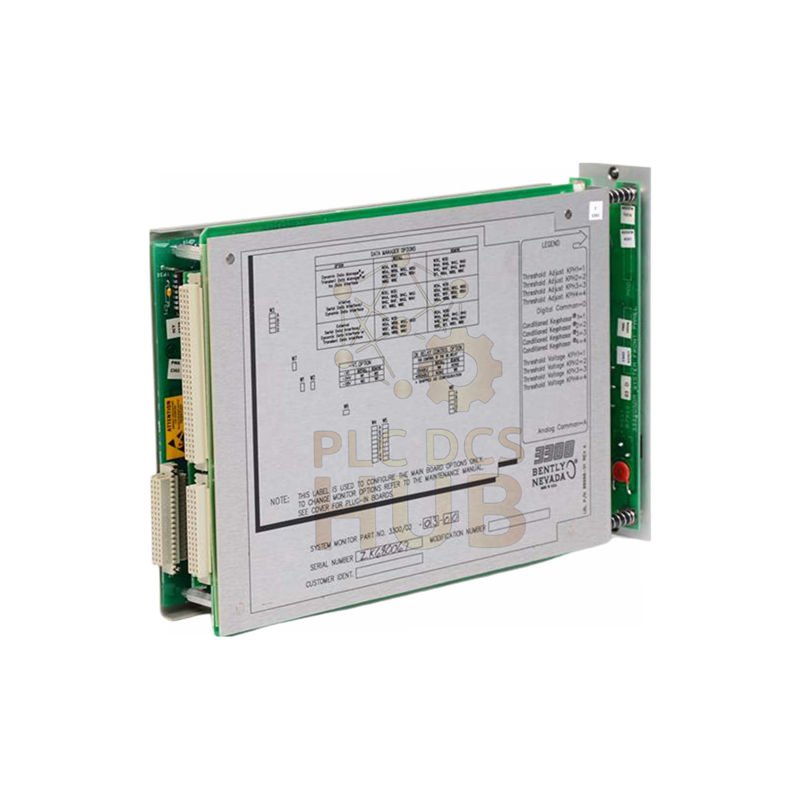

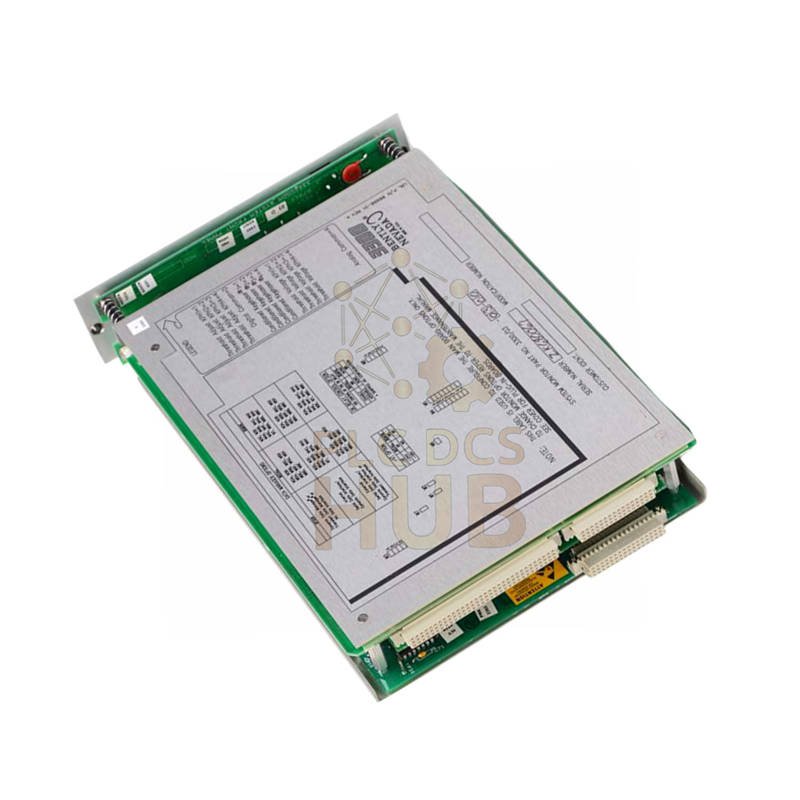

- Bently Nevada 3300/03-03-00 is the core control unit of a 3300 monitoring rack.
- It manages alarms, speed reference, and system communication.
- One module supports all installed monitors.
- Designed for stable long-term operation.
- Used in critical rotating equipment protection.
Main Functions
- Global alarm setpoint control for the rack.
- Central alarm acknowledgment.
- Keyphasor power supply and signal distribution.
- Static and dynamic data routing.
- Single access point for system diagnostics.
Communication & Interfaces
- Supports optional Serial Data Interface.
- Supports optional Dynamic Data Interface.
- Links directly to PLCs and DCS systems.
- Compatible with Bently Nevada software tools.
- May remove the need for external processors.
Electrical & Signal Parameters
- Brand: Bently Nevada
- Model: 3300/03-03-00
- Series: 3300
- Base power use: 2 watts.
- With interfaces: 4.6 watts.
- Keyphasor inputs: up to four channels.
- Keyphasor input impedance: 10 kΩ.
Speed & Phase Measurement
- Speed range: 60 to 30,000 rpm.
- Minimum duty cycle: 1 percent.
- Minimum signal level: 0.5 V peak-to-peak.
- DC bias range: up to -24 Vdc.
- Typical speed accuracy: ±1 rpm.
Signal Conditioning Performance
- User-selectable bandwidth.
- Maximum frequency: 10 kHz.
- Dynamic accuracy: ±0.3 percent typical.
- Phase accuracy: ±0.2 degrees typical.
- Gap accuracy: 0.3 percent of DC range.
Serial Communication Details
- RS422 baud rate up to 38.4 k.
- RS422 distance up to 1200 meters.
- RS232 baud rate up to 19.2 k.
- RS232 distance up to 30 meters.
- Status output shows interface health.
Environmental Ratings
- Operating temperature: 0 to 65°C.
- Storage temperature: -40 to 85°C.
- Humidity tolerance: 95 percent.
- Designed for control room environments.
Installation Notes
- Installs in standard 3300 racks.
- Rear connections simplify wiring.
- No field calibration required.
- Clear labeling reduces setup time.
Key Selling Points
- One module controls the entire rack.
- Reduces wiring complexity.
- Improves alarm response speed.
- Supports legacy and modern systems.
- Proven design with long service life.
Typical Applications
- Steam turbine monitoring.
- Gas compressor protection.
- Large pump trains.
- Power generation assets.
- Oil and gas rotating machinery.
Package & Warranty
- One system monitor module.
- Factory tested before shipment.
- 12-month warranty.
- Secure industrial packaging.
Shipping Options
- FedEx international express.
- UPS worldwide service.
- DHL fast delivery.
FAQ
- Is this module required for every rack?
- Yes. One unit is required per 3300 rack.
- Can it work without communication options?
- Yes. Basic alarm and Keyphasor functions still work.
- How do I choose SDI or DDI?
- Choose SDI for control systems. Choose DDI for software analysis.
- Does it improve troubleshooting speed?
- Yes. Central data access reduces fault search time.
- Is it suitable for system upgrades?
- Yes. It supports mixed monitor configurations.
