Bently Nevada 3300 NSv Proximity Probe: Precision Industrial Sensing
Product Overview

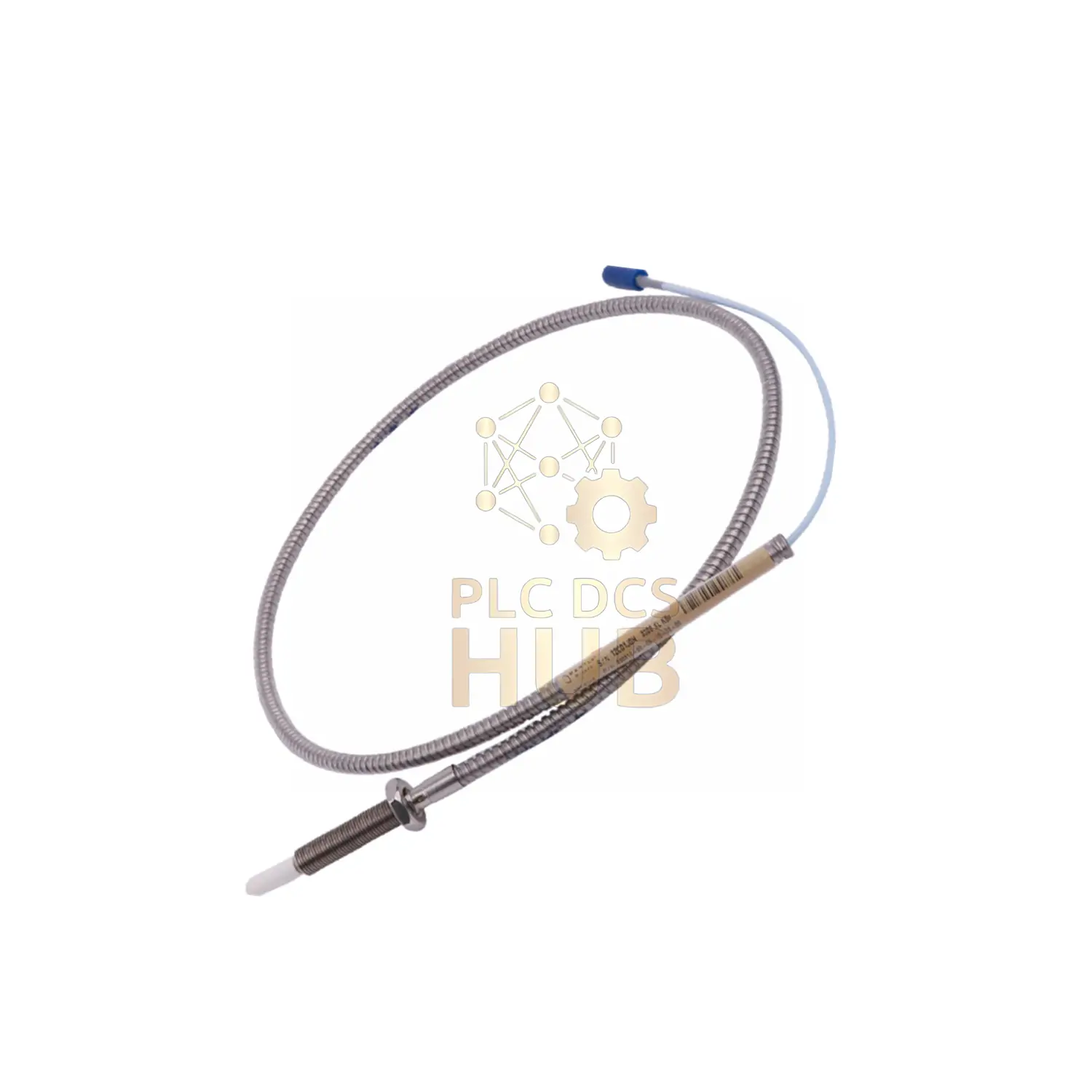

New & original Bently Nevada 330904-00-10-10-12-00 proximity probe with factory warranty. Designed for critical machinery monitoring in harsh environments. Features chemical-resistant PPS tip and stainless steel armor.
Technical Specifications
| Brand/Model | Bently Nevada 330904-00-10-10-12-00 |
| Linear Range | 1.5 mm (60 mils) |
| Accuracy | ±0.06 mm deviation (DSL) |
| Scale Factor | 7.87 V/mm ±12.5%/-20% |
| Temp Range | -52°C to +177°C |
| Cable | 1.0m FEP coaxial, Miniature ClickLoc connector |
| Thread Type | M8X1 with armor |
| Probe Resistance | 4.2Ω ±0.5Ω |
Installation Guide
- Gap Setting: 1.0 mm (40 mils)
- Torque: Finger tight (max 0.56 N•m)
- Min Target Size: 13mm diameter
- Bend Radius: >25.4mm
Compatibility
Works with Bently Nevada 3300 RAM systems. Compatible with 3300 XL NSv Proximitor Sensors using shielded triad cable (max 305m).
Certifications
Agency approval: Not required (option 00)
Package Includes
- 1x 3300 NSv Probe
- Factory packaging
- 12-month warranty card
Shipping & Support
Ships worldwide via FedEx/UPS/DHL. Technical support available for industrial applications.
FAQ
Q: Thread engagement length?
A: Max 12mm for M8X1
Q: Pressure rating?
A: Viton O-ring seal (contact for pressure testing)
Q: Cable replacements?
A: Use 75Ω FEP coaxial cables
Download Full Manual
Get installation diagrams and frequency response graphs: Click Here for Technical Specifications Sheet
