Description

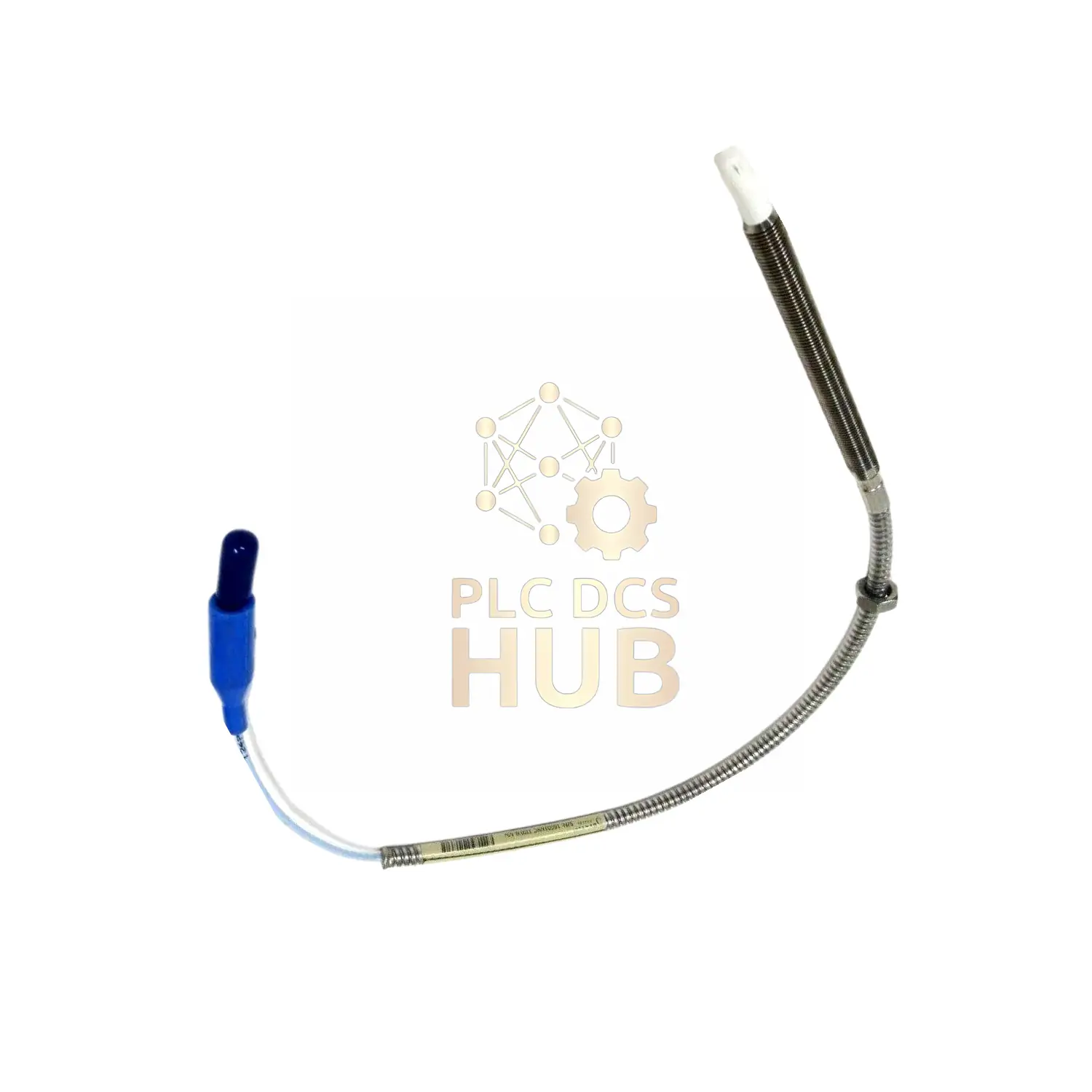

Bently Nevada 3300 NSv Armored Probe with 7m Cable
Product Overview
New original proximity probe with stainless steel armor and 7-meter cable. Designed for tough industrial conditions with enhanced chemical resistance. Includes connector protector for safe use.
Complete Suffix Details
- Base Model: 330904 (M8X1 thread with armor)
- -00- Unthreaded length: 0 mm
- -10- Case length: 100 mm
- -70 Total length: 7.0 meters
- -11 ClickLoc connector with protector
- -00 No special approvals needed
Key Specifications
- Brand: Bently Nevada
- Part Number: 330904-00-10-70-11-00
- Measuring Range: 1.5 mm (60 mils)
- Accuracy: ±0.06 mm
- Output Signal: -1 to -13 Vdc
- Probe Resistance: 5.9Ω ±0.9Ω
- Temp Range: -52°C to +177°C
Installation Notes
- Set gap at 1.0 mm (40 mils)
- Max torque: 5.1 N•m (45 in•lb)
- Min bend radius: 25.4 mm
- Max thread engagement: 12 mm
- Works best on flat targets >13mm
Works With
- All 3300 RAM probe systems
- Bently Nevada monitoring equipment
- Process compressors and turbines
Safety Approvals
Standard industrial use (no special approvals). Sealed with Viton O-ring.
What’s Included
- Armored probe with 7m cable
- Connector protector
- Factory documents
- Original packaging
Support & Delivery
- 12-month warranty
- Global shipping: FedEx/UPS/DHL
- Standard delivery: 3-5 days
Questions & Answers
Q: What’s the cable material?
A: FEP-insulated coaxial cable
Q: Can I use this in high pressure?
A: Contact us for pressure testing options
Q: Minimum target size?
A: 8.9mm diameter minimum
Q: How long is the warranty?
A: Full 12 months from shipment date
