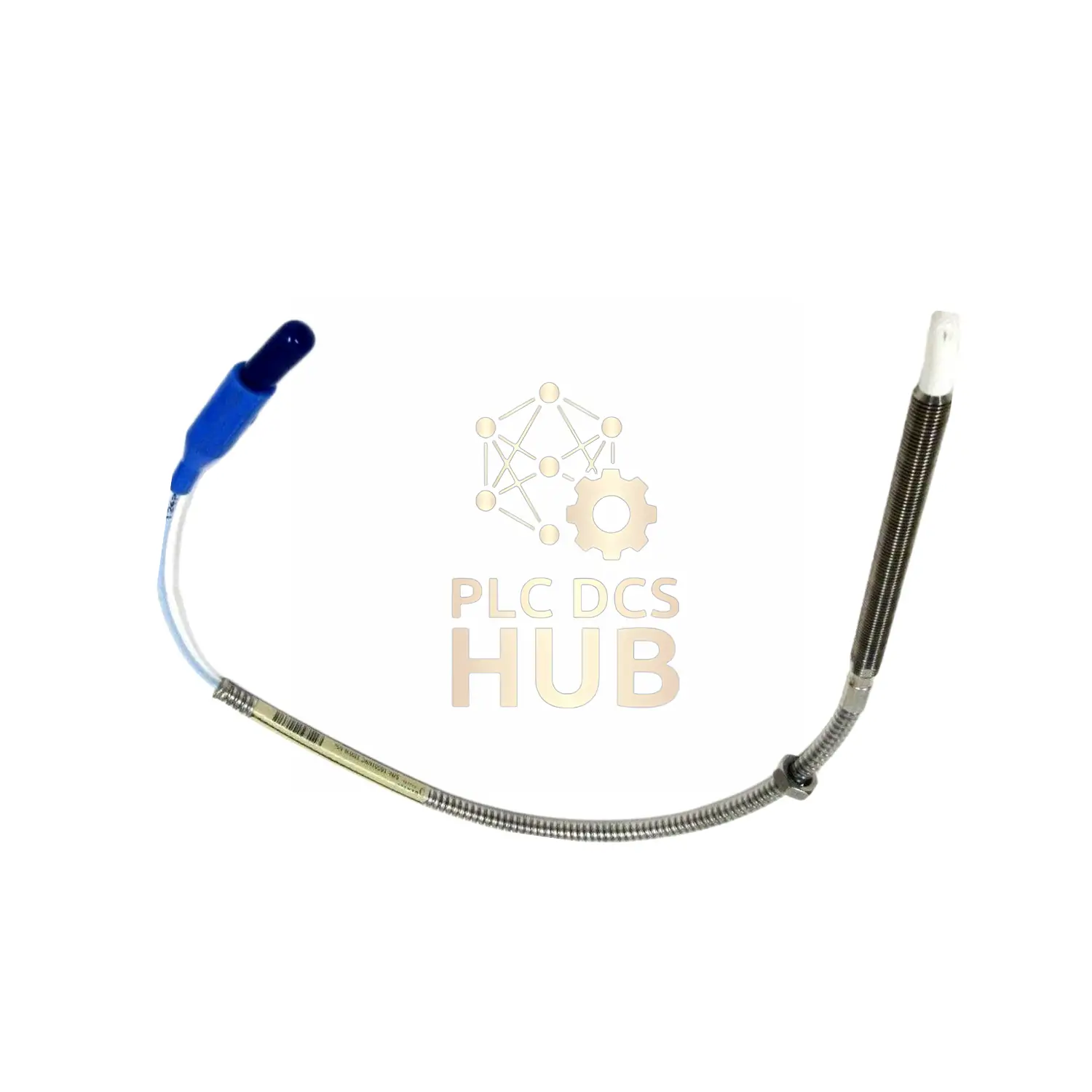

Bently Nevada 3300 NSv Proximity Probe | 330904-00-15-10-11-00

Description

3300 NSv Proximity Probe: Premium Vibration Monitoring Solution

New OEM Bently Nevada probe with 12-month warranty and factory sealing. Ideal for harsh industrial environments with enhanced chemical resistance.

Technical Specifications

• Brand: Bently Nevada
• Model: 330904-00-15-10-11-00
• Range: 1.5mm (60 mils)
• Accuracy: ±0.06mm deviation
• Output: 7.87 V/mm scale factor
• Temp Range: -52°C to +177°C
• Resistance: 4.2Ω ±0.5Ω
• Thread: M8X1 (12mm engagement)
• Cable: 1.0m FEP coaxial

Installation Guide

• Recommended gap: 1.0mm (40 mils)
• Max torque: 0.56 N•m (5 in•lb)
• Min target: Ø13mm (Ø0.5″ recommended)
• Min bend radius: 25.4mm (1.0″)

Compatibility

Direct replacement for 3300 RAM probes with improved chemical resistance. Compatible with all 3300 XL NSv Proximitor systems.

Certifications

Agency approval: 00 (Not Required) – meets industrial standards for hazardous environments.

Package & Warranty

• Factory-sealed original packaging
• 12-month warranty
• Includes connector protector

Shipping Options

Global express delivery via FedEx, UPS, DHL. Tracking provided.

FAQ

Q: Pressure rating?
A: Seals differential pressure (Viton O-ring), contact for pressure testing

Q: Cable length options?
A: Available in 0.5m, 1m, 5m, 7m

Q: Field wiring max length?
A: 305m (1000ft) with shielded triad cable
