Bently Nevada 3300 NSv Proximity Probe: Superior Vibration Monitoring
Industrial-grade shaft vibration measurement with enhanced chemical resistance and improved side-view characteristics. Perfect for demanding process compressor applications.
Product Description

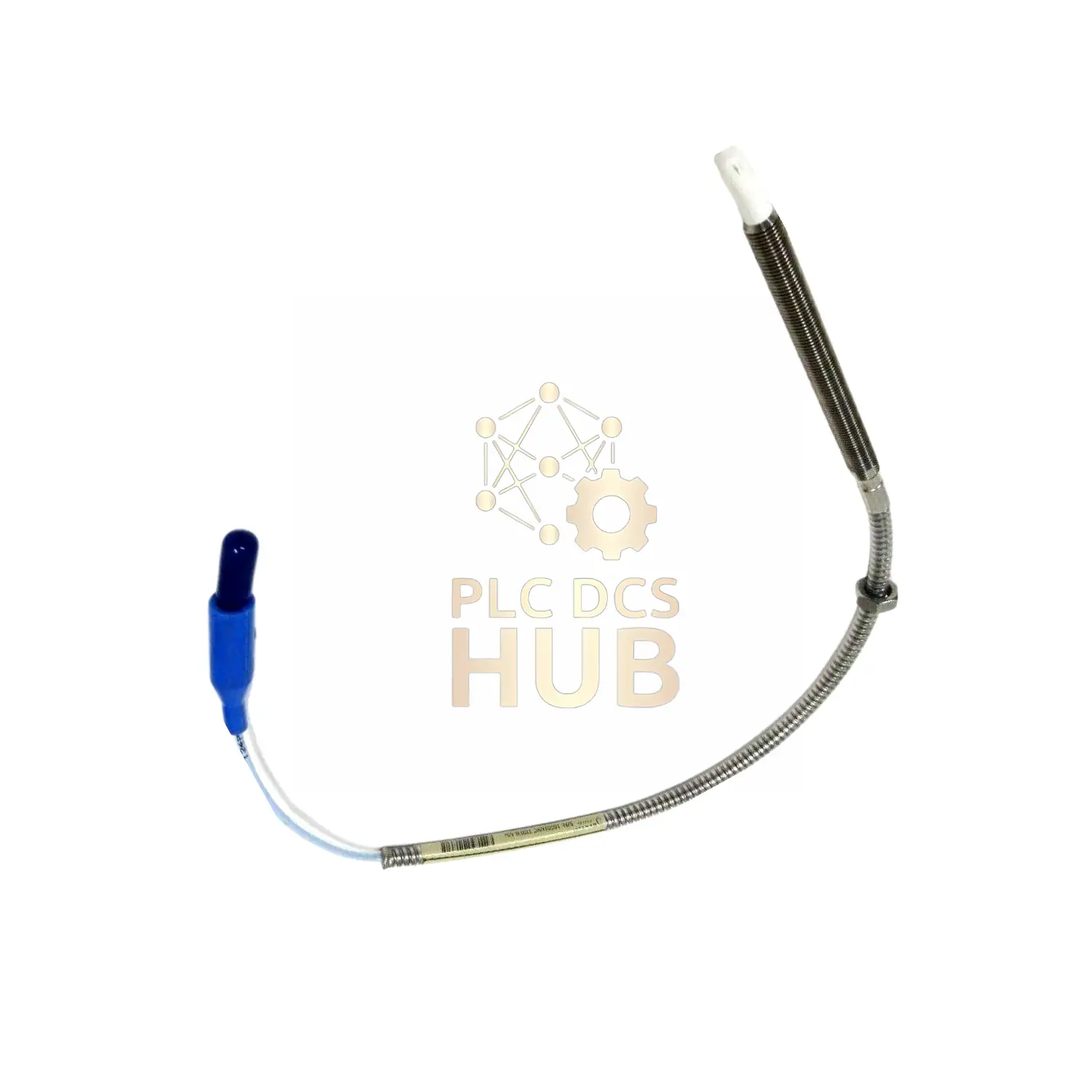

The 330904-00-15-70-02-00 model features:
- Complete M8x1 threading with stainless steel armor
- Extended 150mm case length (50% longer than standard)
- 7.0m cable with ClickLoc coaxial connector
- PPS probe tip and 304 stainless steel body
- Viton O-ring pressure seal
Key advantage: Mechanically/electrically compatible with older 3300 RAM probes while offering better performance.
Technical Specifications
| Brand/Model | Bently Nevada 330904-00-15-70-02-00 |
| Measuring Range | 1.5mm (60 mils) |
| Accuracy (DSL) | ±0.06mm (±2.3 mils) |
| Scale Factor | 7.87 V/mm ±12.5%/-20% |
| Output Signal | -1 to -13 Vdc linear range |
| Temp Range | -52°C to +177°C |
| Cable Resistance | 5.9Ω ±0.9Ω (probe) |
| Frequency Response | 0-10kHz (±3dB) |
Installation Guide
- Optimal gap: 1.0mm (40 mils)
- Max torque: 0.56 N•m (5 in•lb)
- Min. target size: 13mm diameter
- Min. bend radius: 25.4mm
Compatibility
Works with all Bently Nevada 3300 XL NSv Proximitor Sensors. Fully interchangeable with older 3300 RAM probes and extension cables.
Certifications
No special certifications required (marked as “00” in suffix)
What’s Included
- 3300 NSv Probe with ClickLoc connector
- Installation guide
- 12-month warranty card
Shipping & Delivery
Global express via FedEx, UPS, or DHL. Ships within 24hrs of order.
FAQ
Q: Can I use this in oil-rich environments?
A: Yes! The NSv series features enhanced chemical resistance vs older probes.
Q: Maximum cable length?
A: Supports up to 305m (1000ft) field wiring between probe and monitor.
Q: Pressure testing?
A: Probes not pressure-tested before shipment. Contact us for custom testing.
Get Full Documentation
Download the complete installation manual and technical specs:
Click Here for Probe Manual (PDF)
