Bently Nevada 3300 NSv Proximity Probe | 330904-08-10-10-12-05

Description

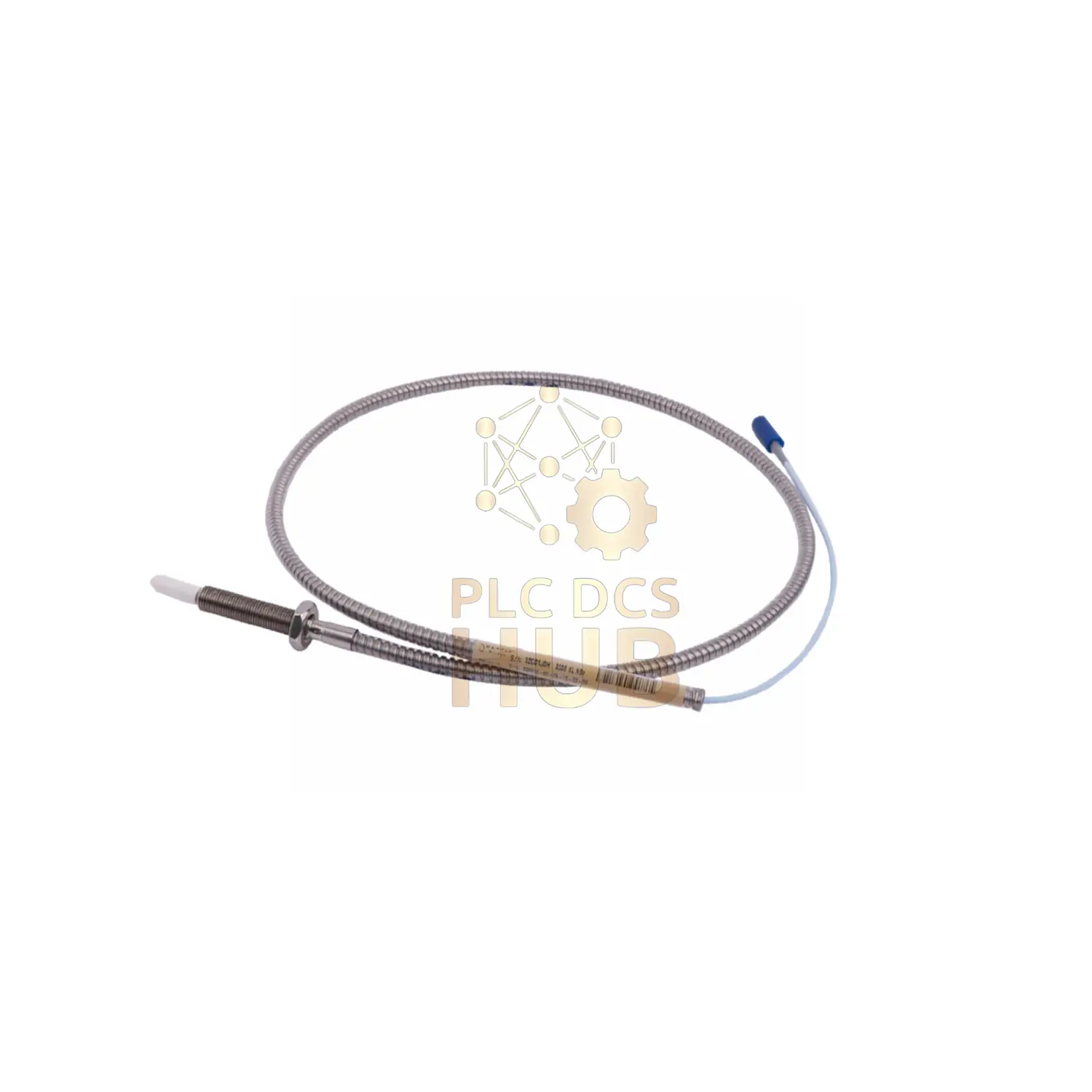

Bently Nevada 330904-08-10-10-12-05 NSv Proximity Probe – New & Original

Premium M8-threaded vibration sensor for industrial machinery monitoring. Features enhanced chemical resistance and superior side-view characteristics. Direct replacement for legacy 3300 RAM probes with improved performance. Ships in factory packaging with 12-month warranty.

Key Technical Specifications

• Brand: Bently Nevada
• Full Model: 330904-08-10-10-12-05
• Thread: M8X1 with stainless steel armor
• Range: 1.5mm (60 mils) linear range
• Accuracy: ±0.06mm deviation from linearity
• Output: 7.87 V/mm ±12.5%/-20% (200 mV/mil)
• Temp Range: -52°C to +177°C (-62°F to +351°F)
• Resistance: 4.2Ω ±0.5Ω (1m cable)
• Pressure Seal: Viton O-ring design

Installation Guide

• Recommended Gap: 1.0mm (40 mils) from target
• Torque: 5.1 N•m (45 in•lb) – DO NOT exceed 7.3 N•m
• Min Target Size: 13mm diameter for accurate readings
• Bend Radius: >25.4mm (1.0 inch)
• Cable Length: 1.0 meter with FluidLoc® coating

Compatibility & Certifications

Electrically interchangeable with 3300 RAM probes. Features Miniature ClickLoc connector and meets multiple international agency approvals (Option 05).

What’s Included

• 330904-08-10-10-12-05 Probe
• Factory documentation
• Calibration certificate
• Original protective packaging

Warranty & Shipping

12-month warranty. Ships worldwide via FedEx, UPS, or DHL. Tracking provided within 24hrs.

FAQ

• Q: Compatible with 3300 RAM systems?
  A: Yes, fully interchangeable
• Q: Maximum cable length?
  A: 305m (1000ft) with shielded triad cable
• Q: Pressure rating?
  A: Contact us for custom pressure testing

Get Full Documentation

Download the complete installation guide and technical specs:

• • NSv Probe Operation Manual (PDF)
