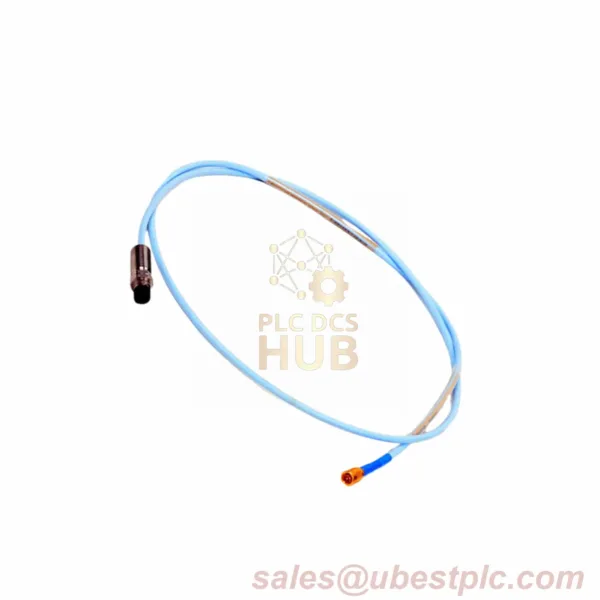

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-20-50-02-CN) delivers precision vibration sensing with a 5.0-meter cable and Country-Specific Approval (CN). Built for harsh conditions, it features a stainless steel case, PPS tip, and patented CableLoc design for 75 lbf pull strength.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-20-50-02-CN
- Suffix Details: 00 (0.0″ unthreaded), 20 (2.0″ case), 50 (5.0m cable), 02 (Mini-ClickLoc), CN (Country Approval)
- Range: 2.3 mm (90 mils) linear range
- Accuracy: ±0.038 mm (±1.5 mil) for 9m systems
- Output: 7.87 V/mm ±6.5% (ETR systems)
- Temperature: -52°C to +260°C (Extended Range)
- Resistance: 8.73 Ω ±0.50 (5.0m cable)
- Humidity: <3% ASF change at 93% RH (56 days)
Installation Guide
Max cable distance: 305m (1,000 ft). Use shielded triad cable (16-24 AWG). Avoid bending radius <25mm. Set gap voltage to -9 Vdc (~1.27mm) for radial vibration.
Certifications
Meets Country-Specific Safety Standards (CN). Complies with IEC 68-2-3 humidity testing.
Package Contents
- 3300 XL 8mm Probe (5.0m)
- Mini-ClickLoc connector
- Installation manual
- COO available on request
Warranty
1-year limited warranty. Excludes damage from improper installation or extreme temperatures below -34°C.
Application Examples
- Chemical processing pumps
- Mining crushers
- Paper mill rollers
