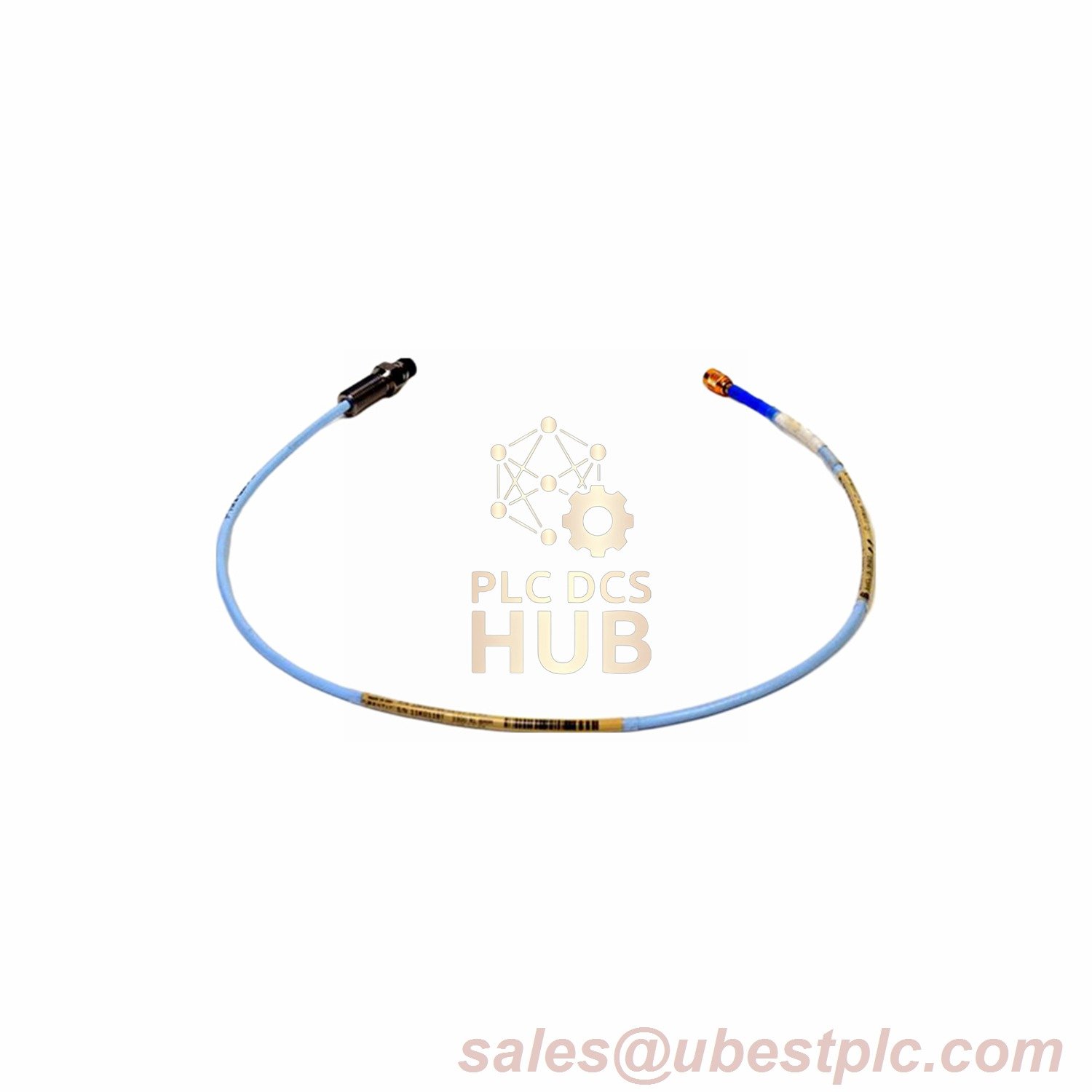

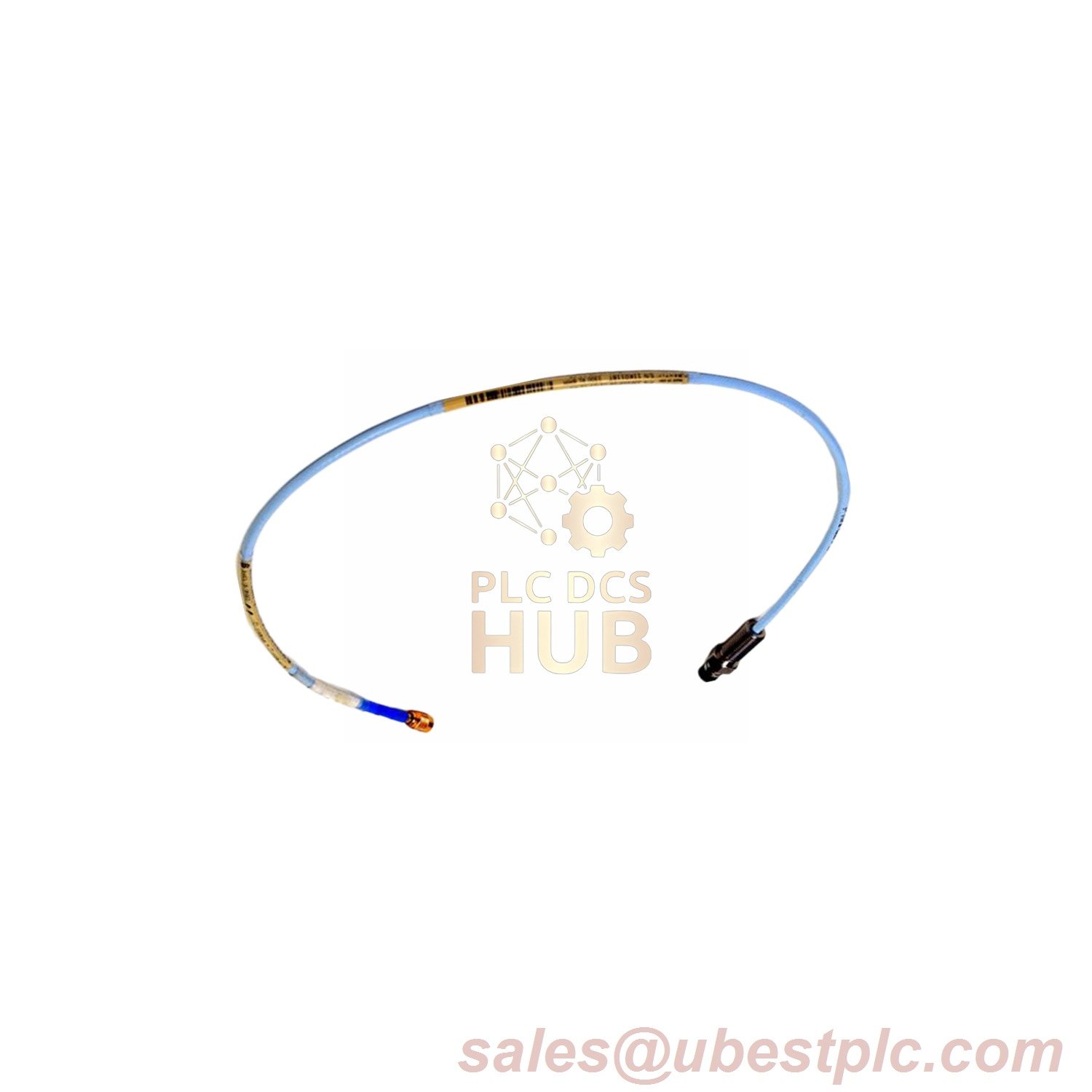

The Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Probe is a certified industrial sensor designed for hazardous environments. Featuring a compact 0.5 m (1.6 ft) cable, CSA/ATEX/IECEx approvals, and a stainless steel construction, this probe ensures reliable performance in explosive atmospheres. Manufactured in the U.S.A, it combines precision with compliance for critical applications.
Technical Specifications
- Brand/Model: Bently Nevada 330105-02-12-05-02-05
- Key Features:
- Length: 0.5 m (1.6 ft) with FEP/PFA insulation options
- Connector: Miniature ClickLoc coaxial
- Certifications: CSA, ATEX, IECEx
- Electrical:
- DC Resistance: 7.45Ω ±0.50
- Cable Options: Standard (FEP) or Extended Temp (PFA)
- Mechanical:
- Thread: 3/8-24 UNF (14.3 mm max engagement)
- Tensile Strength: 330N (case) / 270N (connectors)
- Weight: 323 g/m (11.4 oz)
- Environmental:
- Temperature Range: -52°C to +177°C (Standard)
- Extended Range: Up to +260°C with PFA cable
- Humidity: <3% ASF drift @ 93% RH (IEC 68-2-3)
