Metric Thread Industrial Vibration Probe

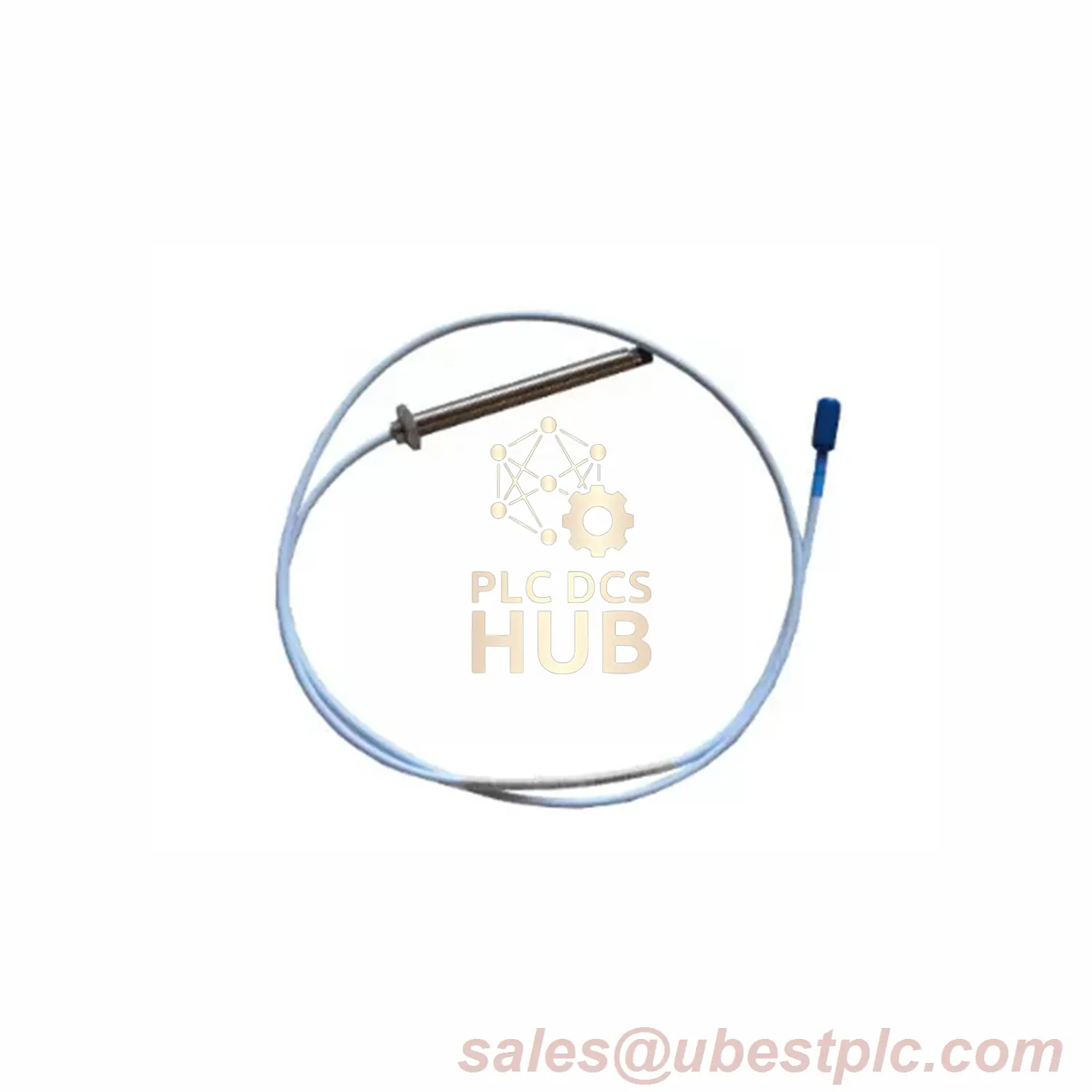

This probe fits machines with metric mounting threads. The Bently Nevada 330103-00-09-10-02-05 is a key member of the 3300 XL 8mm Proximity Probes family. It uses a standard M10x1 thread for global compatibility. Monitor vibration and position in critical assets like turbines and compressors. This sensor delivers reliable data to support your predictive maintenance strategy.
Product Model & Configuration
- Core Product Identity
- Brand: Bently Nevada
- Part Number: 330103-00-09-10-02-05
- Base Type: 3300 XL 8mm Probe, M10x1 Thread
- Key Feature: Metric Mounting Thread
- Detailed Part Number Analysis
- Base Code 330103: 8mm Probe, M10x1, No Armor
- Option 00: Unthreaded Length = 0 mm
- Option 09: Case Length = 90 mm
- Option 10: Cable Length = 1.0 Meter
- Option 02: Connector = Miniature ClickLoc
- Option 05: Approvals = CSA, ATEX, IECEx
- Base Code 330103: 8mm Probe, M10x1, No Armor
Technical Specifications & Data
- Measurement Performance
- DC Resistance (1m): 7.59 Ω ± 0.50 Ω
- Linear Range: 2.0 mm (80 mils)
- Start of Range: ~0.25 mm from target
- Recommended Gap: -9 Vdc (~1.27 mm / 50 mils)
- Physical Construction
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Seal: Viton® O-ring (Differential Pressure)
- Weight: Approximately 323 g/m
- Environmental Ratings
- Operating Temp: -52°C to +177°C (Standard)
- Extended Temp: Tip to +218°C, Cable to +260°C
- Humidity: < 3% ASF change @ 93% for 56 days
- Caution: Avoid prolonged exposure below -34°C.
- Mechanical Installation
- Thread: M10 x 1.0 mm (Metric)
- Max Thread Engagement: 15 mm
- Field Wiring: Up to 305 m (1000 ft) maximum
- Hazardous Area Certifications
- Intrinsically Safe (ia): For Zone 0/1 with barriers.
- Non-Incendive (nA, ec): For Zone 2 / Div 2.
- Groups: Approved for Gas (IIC) and Dust (II/III).
Specialist FAQ for This Model
When should I choose this M10x1 model over a 3/8-24 UNF model?
Choose this model (330103) if your machinery’s mounting holes are tapped with the metric M10x1 thread, which is common on European and globally designed equipment. Always check your mechanical drawings.
What is the significance of the 90mm (Option 09) case length?
A 90mm case is a common standard length. It allows the probe tip to reach the correct sensing position through typical machine casings and mounting bosses. Verify your required insertion depth.
How do the hazardous area certifications (ia, nA, ec) affect my system design?
These define how the probe must be connected in a safe area. ‘ia’ requires intrinsic safety barriers. ‘nA/ec’ allows different wiring methods for Zone 2. Your overall system design must match the chosen protection method.
Can this probe handle high-pressure environments inside a compressor?
It has a Viton O-ring to seal differential pressure between the tip and case. However, probes are not factory pressure-tested. For critical high-pressure apps, consult the manufacturer’s custom department for specific testing.
What is the delivery and support for model 330103-00-09-10-02-05?
This probe comes with a standard 12-month manufacturer warranty. We ensure fast dispatch via global carriers like FedEx, UPS, and DHL. Contact us on WhatsApp at +86 158 8020 0923 for stock checks.
Confirming your thread and length requirements?
Accurate installation starts with the right part. For verification against your specs or for bulk orders, reach out to our technical sales team.
