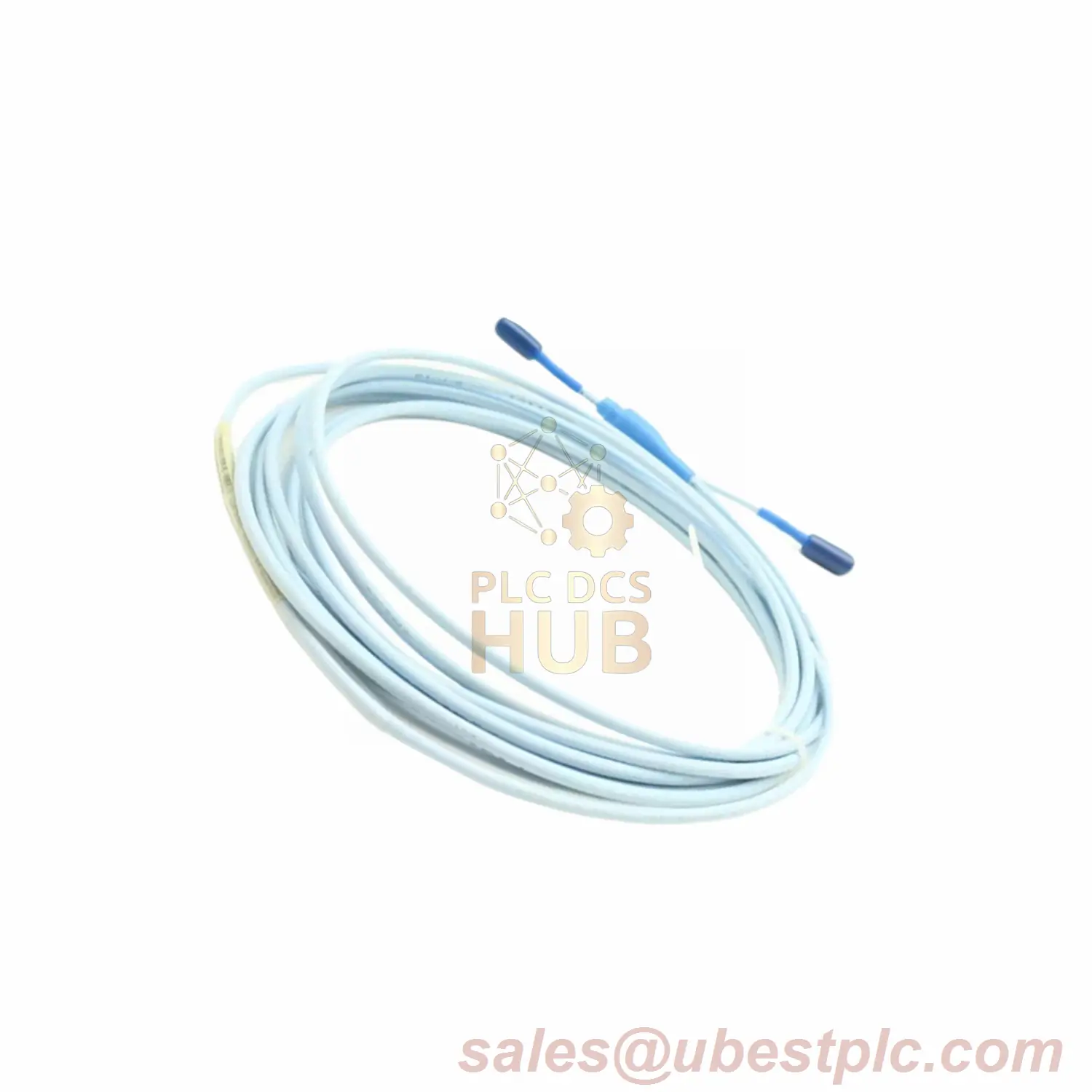

Bently Nevada 330130-080-02-00 Standard Extension Cable
Product Overview
Essential 8-meter vibration monitoring cable with connector protectors for industrial applications. Features gold-plated ClickLoc connectors and 330N pull strength. Made in USA with no certification requirements.
Model Number Breakdown
| 330130 | Base Product Code |
| -080- | 8.0 meter length (26.2 ft) |
| -02- | Standard cable with connector protector |
| -00 | No agency approvals required |
Key Specifications
Electrical Properties
- Capacitance: 69.9 pF/m
- Core Resistance: 1.76Ω ±0.26
- Jacket Resistance: 0.53Ω ±0.11
- Output Resistance: 50Ω
Physical Properties
- Weight: 0.272 kg
- Density: 34 g/m (0.4 oz/ft)
- Length: 8.0 meters
- Pull Strength: 330N (75lbf)
Environmental Ratings
- Temperature: +18°C to +27°C
- Humidity: 93% for 56 days
- Altitude: 2000m max
Critical Performance Data
| Parameter | Value | Notes |
|---|---|---|
| Power Requirements | -17.5Vdc to -26Vdc | 12mA max consumption |
| Linear Range | 0.25-2.3mm | Approx -1 to -17Vdc |
| Supply Sensitivity | <2mV/V | Per volt change |
| Field Wiring | 0.2-1.5mm² | Max 305 meters |
System Integration Guide
- Total Length Formula: Cable length + probe length = Proximitor length
- Optimal Setup: AISI 4140 steel target at 1.27mm gap
- Connection Protocol: Use connector protectors in oil environments
- Power Recommendation: -24Vdc power supply
Package Contents
- 8m standard extension cable
- Connector protectors
- Silicone tape alternative
- Installation documentation
Installation Notes
- Calculate total system length (cable + probe)
- Use connector protectors when exposed to oil
- Maintain 1.27mm probe-to-target gap
- Verify -24Vdc power supply
- Use shielded triad cable for field wiring
Technical FAQ
Q: What’s the difference between -02- and -03- models?
A: -02- is standard cable, -03- is armored version
Q: When should I use connector protectors?
A: Always in oil-exposed environments like turbines
Q: What’s the weight difference vs armored cable?
A: Standard: 0.272kg vs Armored: 0.824kg
Q: Can I use silicone tape in oil applications?
A: No, only use connector protectors for oil exposure
Warranty & Shipping
12-month manufacturer warranty • Global shipping via FedEx/UPS/DHL • COO available upon request
