Product Overview

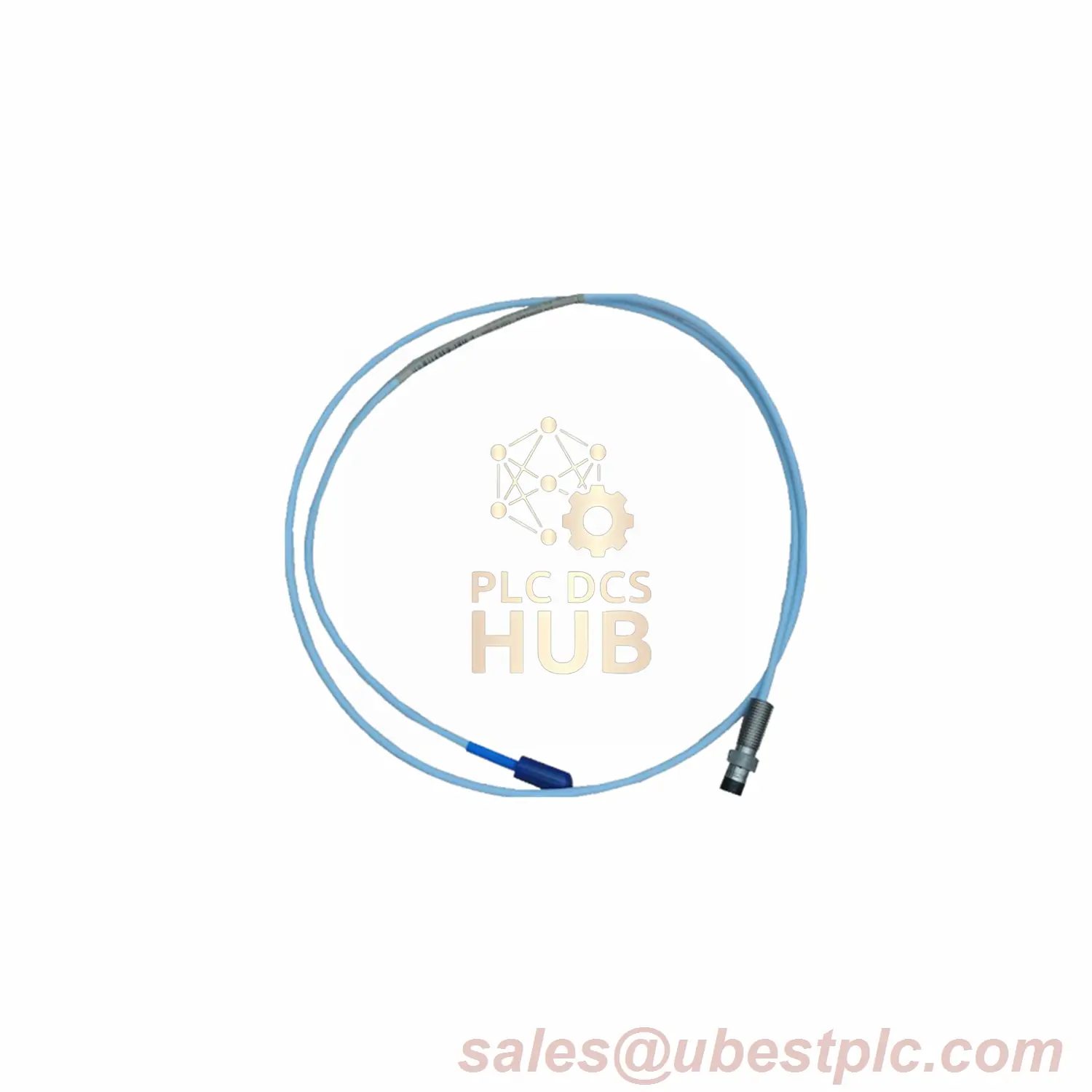

The Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330102-00-40-10-01-05) is a rugged sensor built for vibration monitoring in extreme conditions. With a 4-inch stainless steel case and PPS tip, it delivers accuracy and durability. Perfect for high-risk industrial zones, it meets global safety standards.
Key Specifications
- Brand: Bently Nevada
- Full Model: 330102-00-40-10-01-05
- Thread: 3/8-24 UNF
- Case Length: 4 inches (Option 40)
- Cable: 1.0m (3.3 ft) with ClickLoc protector (Option 01)
- Resistance: 7.59Ω ±0.50
- Temperature Range: -52°C to +177°C (Probe), -60°F to +500°F (Cable)
Performance Features
- Measurement Range: 0.25–2.3mm (10–90 mils).
- Output Voltage: -1V to -17V DC.
- Max Cable Distance: 305m (1000 ft) to monitor.
- Pressure Seal: Viton® O-ring (not pre-tested).
Installation Tips
- Set radial gap to -9V (~1.27mm).
- Use shielded triad cable (16-24 AWG).
- Avoid temperatures below -34°C (-30°F).
Certifications & Safety
- CSA, ATEX, IECEx certified.
- Safe for Zone 0/Class I (explosive environments).
Real-World Uses
- Oil & Gas: Monitor pumps in refineries.
- Power Plants: Track turbine shaft vibration.
- Paper Mills: Detect misalignment in rollers.
Contact: Email sales@ubestplc.com or call +86 158 8020 0923 for quotes.
