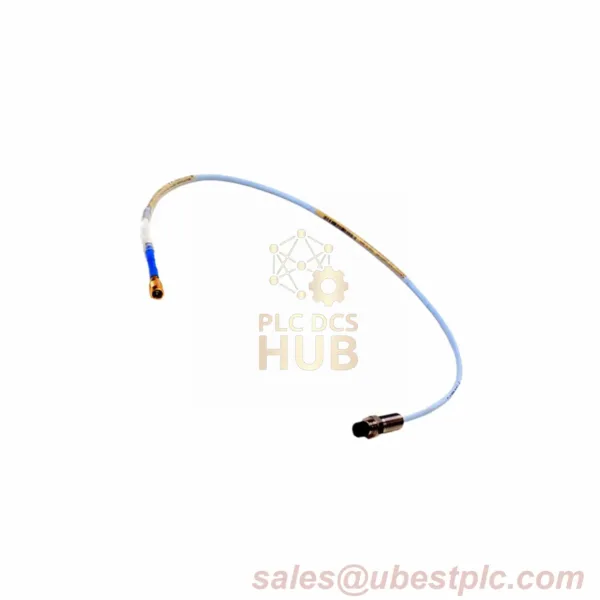

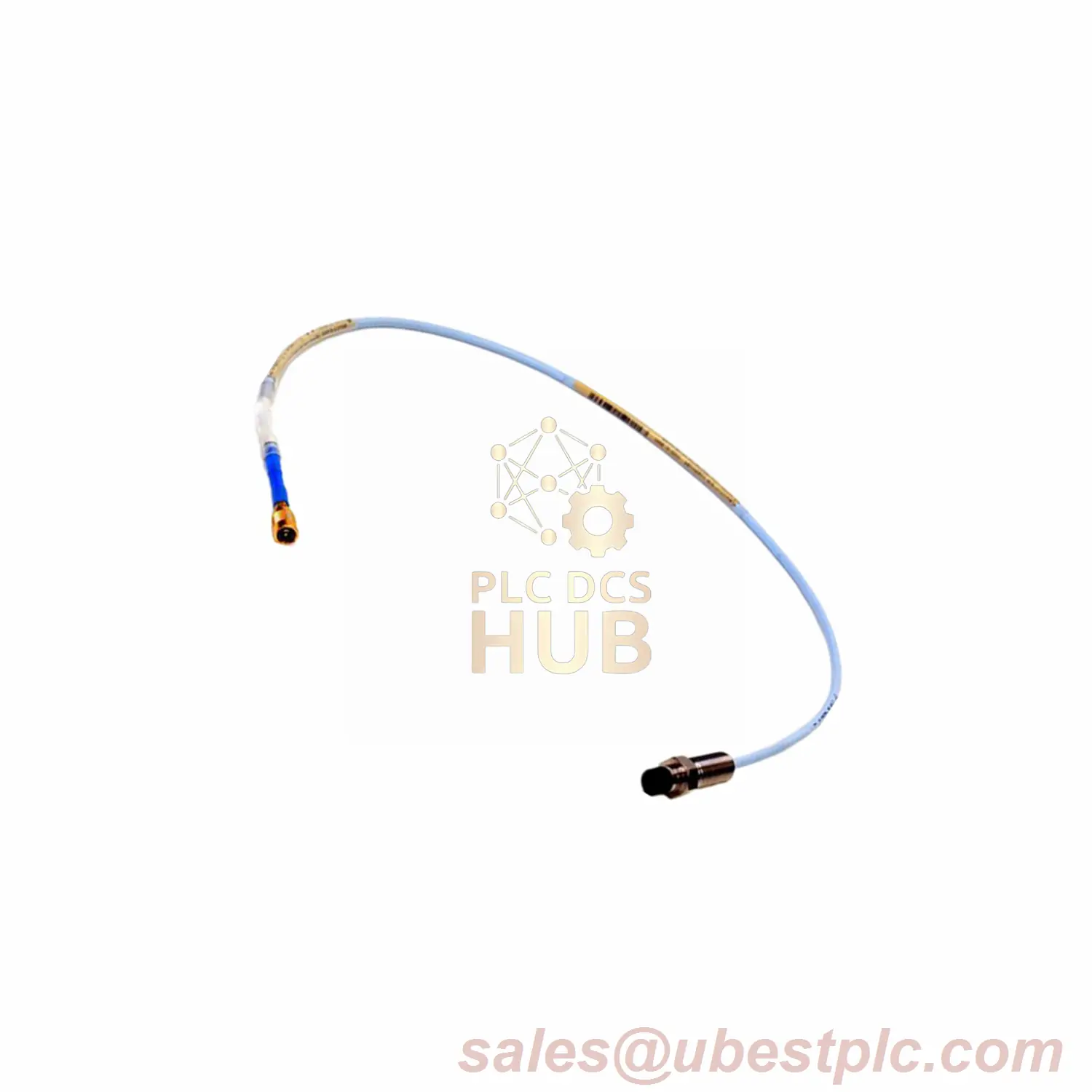

Bently Nevada – 330102-08-96-10-02-CN Proximity Probe With Armor

Description

Key Benefits

The Bently Nevada 3300 XL 8mm Probe (Model: 330102-08-96-10-02-CN) ensures reliable machinery health monitoring with its 9.6-inch stainless steel case (Option 96) and rugged PPS tip. Designed for long-range installations, it includes a 1.0m cable and ClickLoc connector (Option 02).

Critical Specifications

• Unthreaded Length: 0.8 in (Option 08)
• Approval: CN (Country-Specific)
• Thread: 3/8-24 UNF (Max depth: 0.563 in)
• Humidity Resistance: <3% ASF shift (56 days at 93%)

Performance Metrics

• Measurement Range: 0.25–2.3 mm (-1 to -17 Vdc)
• Resistance: 7.59Ω ±0.5 (1.0m cable)
• Weight: 323 g/m (11.4 oz per meter)
• Temp. Limits: -52°C to +177°C (Probe), +260°C (Cable)
• Seal Material: Viton® O-ring (Custom testing available).

Installation Steps

Secure with 3/8-24 UNF thread. Set gap to -9 Vdc (1.27 mm) for radial vibration. Keep wiring under 305m (1,000 ft) for best signal quality.

System Compatibility

• 1.0m cable works with 5m/9m Proximitor sensors.
• 3m cables (Model 330101) need 9m Proximitor.

Certifications

• Class I, Zone 0: AEx/Ex ia IIC T5-T1 Ga
• Class I, Zone 2: AEx/Ex ec IIIC T5-T1 Gc
• Local Compliance: CN certification included.

Package & Support

• Probe, 1.0m cable
• 1-year warranty.

Real-World Use

Monitors hydroelectric turbine shafts to detect imbalance, preventing costly downtime in high-pressure water environments.

Contact Support: sales@ubestplc.com | +86 158 8020 0923

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
