Description
Product Overview

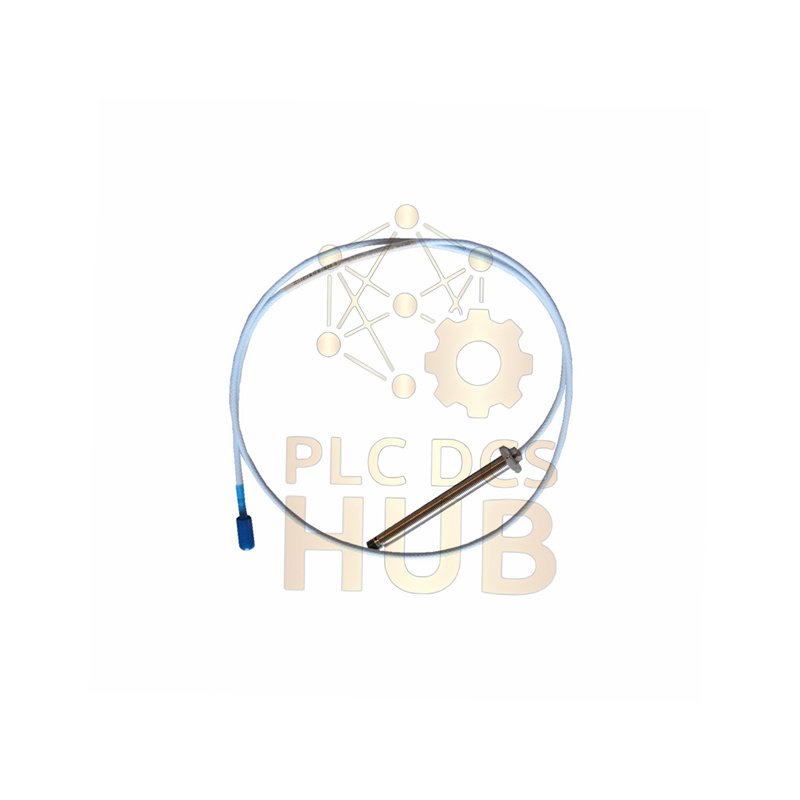

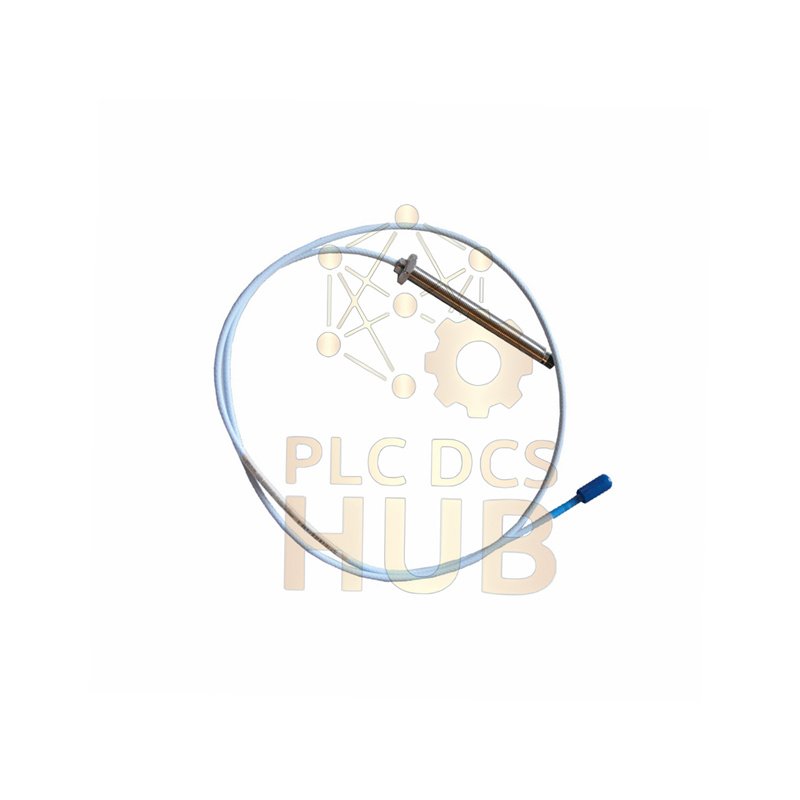

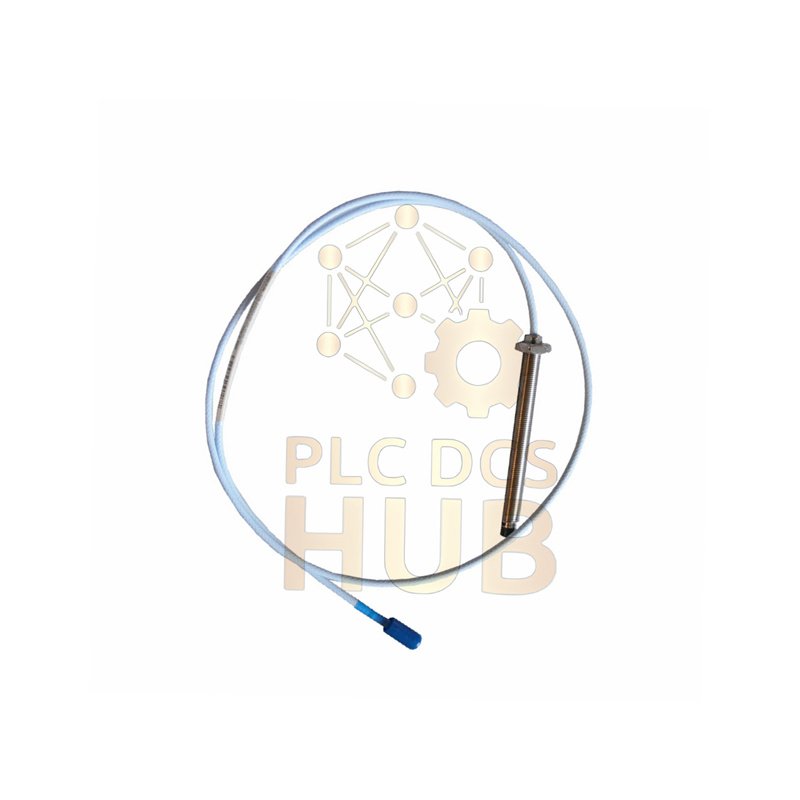

The Bently Nevada 330103-00-14-10-01-00 is a 3300 XL 8 mm Proximity Probe. This device measures radial vibration and position in rotating machinery. Specifically, this model uses a M10 x 1 thread without armor. Its total length reaches 1.0 meter (3.3 feet), and it includes a miniature coaxial ClickLoc connector. Meanwhile, the probe tip employs Polyphenylene sulfide (PPS), while the case uses AISI 303 or 304 stainless steel. Consequently, it works reliably even in harsh industrial environments.
Key Technical Data (MECE Structured)
Brand & Model
Brand: Bently Nevada
Model: 330103-00-14-10-01-00
Series: 3300 XL
Type: 8 mm Proximity Probe (Metric)
Measurement Range & Performance
Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils)
Output at linear range: Approximately –1 to –17 Vdc
Recommended gap for radial vibration: –9 Vdc (about 1.27 mm / 50 mils)
Resolution: High-resolution output per 3300 XL system spec
Frequency Response: See Figures 10 & 12 for signal rolloff with long cables
Electrical & Resistance
Nominal DC resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0m length
Field wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
Recommended cable: 3-conductor shielded triad, tinned wiring
Max field wiring length: 305 meters (1,000 feet) to Proximitor Sensor
Environmental Tolerance
Standard temp range: -52°C to +177°C (-62°F to +350°F)
Extended tip temp: up to +218°C (+425°F); cable up to +260°C (+500°F)
Warning: Below –34°C (–30°F) may damage pressure seal
Humidity: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3)
Mechanical & Pressure Seal
Probe tip material: Polyphenylene sulfide (PPS)
Case material: AISI 303 or 304 stainless steel
Thread size: M10x1
Max thread engagement: 15 mm
Seal material: Viton® O-ring (differential pressure design)
Pressure test: Not shipped pre-tested (contact custom design if needed)
Interference Immunity & Safety
Intrinsically safe (ia): Class I, Zone 0; AEx/Ex ia IIC T5…T1 Ga
Non-incendive (nA/ec): Class I, Zone 2; AEx/Ex nA IIC T5…T1 Gc
Install per drawing 141092 (zener barriers) or 140979 (non-incendive)
Installation Guide
Torque for standard forward mount (full case): Max 33.9 N•m (300 in•lbf), Recommended 11.2 N•m (100 in•lbf)
Torque for first three threads: Max 22.6 N•m (200 in•lbf), Recommended 7.5 N•m (66 in•lbf)
Max thread engagement length: 15 mm for M10x1
Use non-seizing lubricant on threads if needed
Do not overtighten beyond rated torque
Keep probe tip clean and free from debris
Debugging & Maintenance Convenience
Easy DC resistance check at probe connector (7.59 ± 0.50 Ω)
Standard ClickLoc connector allows quick disconnect
Field wiring up to 305 meters simplifies remote monitoring
O-ring seal is replaceable (contact support)
Use a gap voltage check (–9 Vdc target) for baseline setup
Compatibility Notes
Works with all 3300 XL Proximitor Sensors
Compatible with Bently Nevada monitors and diagnostic systems
For 3300 XL 11 mm Proximity Probes, check the 11 mm series here
Intrinsically safe with approved barriers or galvanic isolators
Non-incendive per drawing 140979 for Class I Division 2
Certifications
ia marking: AEx/Ex ia IIC T5…T1 Ga (Zone 0)
nA/ec marking: AEx/Ex nA IIC T5…T1 Gc (Zone 2)
Class I, II, III for Groups A-G
Temperature schedules for EPL Ga/Gc and Dc (see full table in manual)
Packing List
1x Bently Nevada 330103-00-14-10-01-00 probe assembly
1x Miniature coaxial ClickLoc connector with protector
No mounting hardware included
Warranty & Shipping
Warranty: 12 months from shipment date against manufacturing defects. Does not cover misuse or overtightening.
Shipping carriers: FedEx, UPS, DHL (express service).
For inquiries or order support: +86 158 8020 0923 (WhatsApp)
Typical Applications & Diagnostic Ability
Typical applications:
Steam, gas, and compressor radial vibration monitoring
Axial position monitoring on turbines
Keyphasor reference for speed/phase measurement
Pump and motor bearing wear detection
Diagnostic ability:
Detects shaft rub, unbalance, misalignment
Provides DC gap voltage for static position analysis
Works with trend analysis and predictive maintenance systems
FAQ – Frequently Asked Questions
1. Can I use this probe in a high-humidity area?
Yes. It passes 93% humidity test for 56 days with less than 3% scale factor change.
2. What happens if I tighten past the max torque?
You may strip threads or damage the probe case. Always stay within 33.9 N•m max.
3. How do I check if my probe is working?
Measure DC resistance across center to outer conductor. Expected value: 7.59 ± 0.50 Ω.
4. Does this probe work with non-Bently monitors?
Only if the monitor accepts –1 to –17 Vdc output and matches 3300 XL scale factors.
5. What is the most common mistake when installing?
Using too much torque on the first three threads. Use only 7.5 N•m (66 in•lbf) there.
6. Which probe should I buy for high temperature above +177°C?
Choose the extended temperature range version (up to +218°C tip). This standard version works to +177°C.
7. My site is Zone 2 gas. Is this probe approved?
Yes, with non-incendive connection per drawing 140979 (nA/ec marking).
Selection Guide – Which 3300 XL Probe Do You Need?
Need standard 8mm for most turbines? Choose 330103-00-14-10-01-00 (1m cable, ClickLoc)
Need longer cable? Change Total Length Option (e.g., 20 = 2.0m)
Need armor against physical damage? Select an armored version (not this model)
Need high temperature >177°C? Choose extended temp option (contact sales)
Need agency approval for Europe? Add agency option (not “00”)
Need 11 mm probe for larger gap range? See the 3300 XL 11 mm series
Pro tip from field engineers: Always order one spare probe per machine train. Store at room temperature. Check O-ring before first installation.
